Raymarine Evolution Autopilot Control Head and Course Computer Packs

Raymarine Evolution Autopilot Control Units Raymarine Evolution Autopilot Control Unit combines Raymarine’s autopilot expertise, FLIR Systems’ R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.

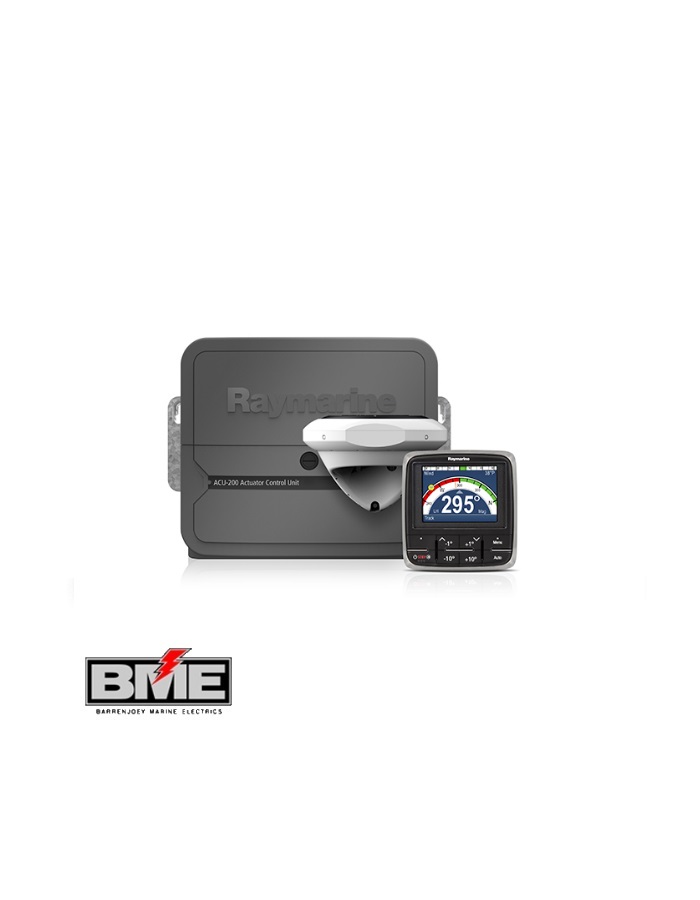

Raymarine Evolution Autopilot Control Unit with p70 control head & ACU-200 (suitable for Type 1 drives).

Features

• Automagic – No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections
• Easy to install – Freedom from the restrictions of conventional heading sensors. EV sensor core can be installed above or below deck. Install upside-down or off the vessel’s centre line.
• Aerospace technology – 9-axis precision monitoring of pitch, roll, yaw and heading
• Fuel efficient – Evolution autopilots steer so accurately they will save fuel and get you to your destination faster

Raymarine Evolution Autopilot Control Units Specifications

• Dimensions: Diameter: 140 mm | Depth: 35 mm | Depth: 95 mm
• Nominal supply voltage: 12 V (powered by SeaTalkng system)
• Operating voltage range: 10.8 V to 15.6 V dc
• Power consumption (taken from SeaTalkng system): 30 mA
• SeaTalkng LEN (Load Equivalency Number): 1
• Sensors: 3-axis digital accelerometer | 3-axis digital compass | 3-axis gyro digital angular rate sensor
• Data connections: SeaTalkng | NMEA 2000 DeviceNet (EV-2 only)
• Installation environmental: Operating temperature: -20ºC to +55ºC (-4ºF to +131ºF)
• Storage temperature: -30C to +70C (-22F to +158F)
• Relative humidity: max 93%
• Waterproof rating: IPX 6
• Weight: 0.29 kg (0.64 lbs)
• EMC compliance: Europe: 2004/108/EC | Australia and New Zealand
