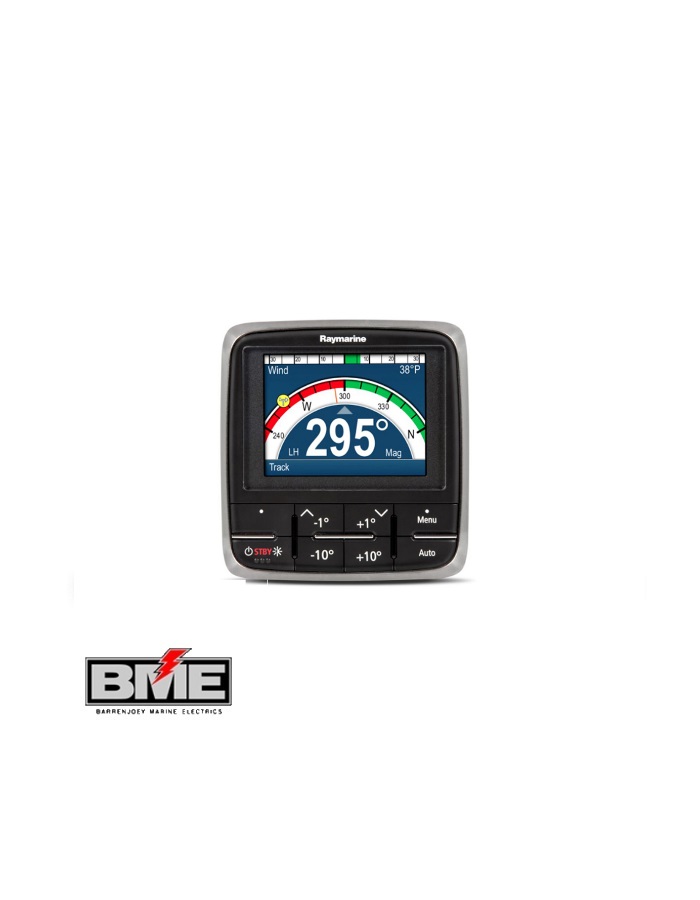

Raymarine p70S Autopilot Control Head
The Raymarine p70S autopilot control head with its combination of push-buttons and rotary control dial, is aimed at sailboats.
Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.
Features
- 3.5″” super bright oversized LCD for maximum visibility
- Button or rotary control options for sail and power applications
- Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
- SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks
- New glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays
Raymarine p70S Autopilot Control Head Specifications
- Nominal voltage: 12v DC
- Voltage range: 9 to 16v DC
- Screen size: 3.5″”
- Display: Sunlight readable optically bonded LCD
- Resolution: 320 x 240 QVGA
- Colours: 16 bit colour (64K colours)
- Colour Palettes: Four colour pallettes – two day, inverse and red / black
- LCD Brightness: 1200 nit
- Power consumption: 1.6 Watts
- Connections: SeaTalk & SeaTalkng compliant with NMEA2000 marine networks
- Operating temperature: -025ºC to 55ºC (-13ºF to 131ºF)
- Storage temperature: -030ºC to 70ºC (-22ºF to 158ºF)
- Relative humidity: 93% max
- Waterproofing: IPX6
- Conformance: Europe 2004/108/EC | Australia and New Zealand C-Tick compliance level 2
