Glendinning Cablemaster Power Cable Handling & Storage Systems

$599.00$745.00

Glendinning Cablemaster Power Cable Handling & Storage system is designed to handle and store any power cable which can carry current between 10 and 300 amps (or higher) of any lenght and can handle to store any size cable with an outside diameter 12-70 mm.

Glendinning Cablemaster hose reels are highly customizable and have already been widely used in several marine applications.

Enquire about this product

Handle and store your power cables with ease!

  • Motorized retraction & extension of portable power cable.
  • No slip rings — power cable is connected directly to power panel.
  • Unlimited Cable Length — depending on amount of cable storage capacity
  • Power cable can have any number or type of conductors.
Clear

Nationwide Shipping & Support

Guaranteed Safe Checkout

Glendinning Cablemaster™ Power Cable Handling & Storage

Glendinning Cablemaster™ CM Series

Glendinning Cablemaster™ CM Series Power Cable Handling & Storage system is designed to handle and store any power cable which can carry current between 10 and 300 amps (or higher) of any lenght.

  • Motorized retraction & extension of power cable
  • Power cable is connected directly to power panel
  • Unlimited Cable Length
  • Cable can have any number or type of conductors.

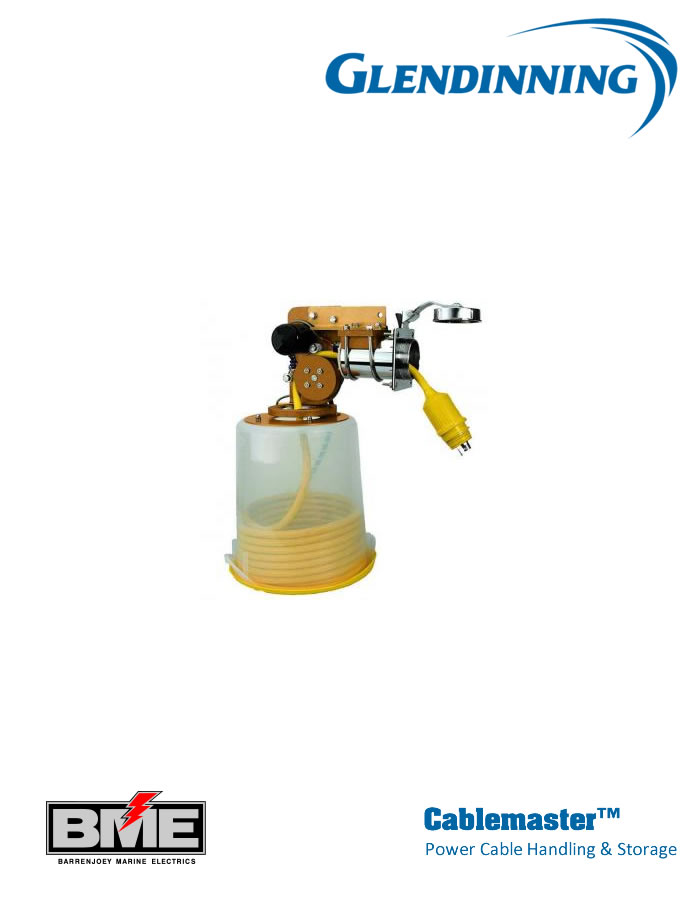

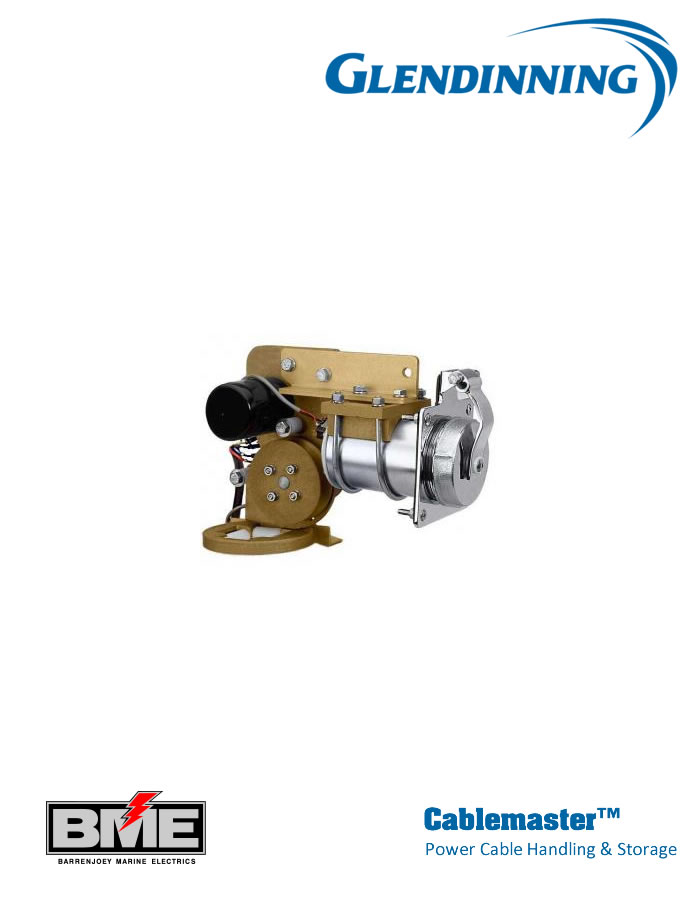

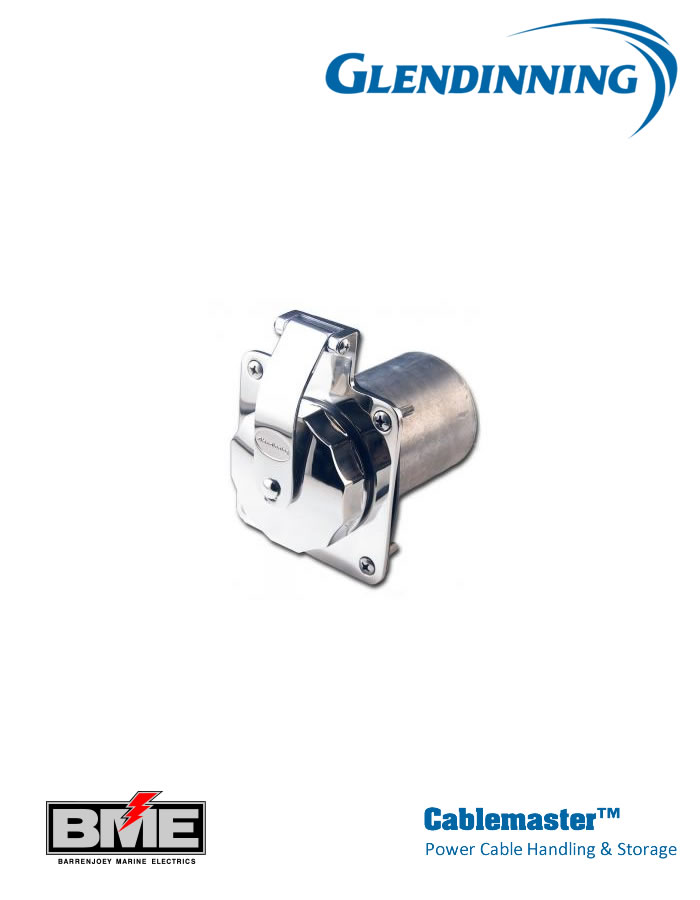

Cablemaster Model CM 4

The Cablemaster Model CM-4 is your final solution when it comes to handling and storing bulky 30 amp power cable! It is designed to withstand the harsh marine environment which means its durability and reliability is second to none.

Unlike all other cable handling systems, the Cablemaster Model CM-4 eliminates the need for slip rings or brush connections. Offering both automatic pay in and out, the power cable is easily maneuvered and stored in a variety of settings. It is also able to store an unlimited length of cable because it stores the cable seperately.

Glendinning also offers a variety of guide roller assemblys in order to store the cable several yards away from the Cablemaster.

Cablemaster Model CM-4 is fully tested and approved (CE, ISO 8846).

  • Typical Amperage: 30 amp (US) 16/32 amp (EU)
  • Cable Outside Diameter: 12-20mm
  • Typical Cable Type: #10 AWG / 6mm2
  • Retraction Motor Voltage: 12 or 24 VDC
  • Cable Jacket Material: Type S, ST, SE, PUR



Customizable Features

  • Available for both US and EU power setups.
  • Designed to handle most power cables with a
  • .5″-.8″ (12-20mm) outside diameter
  • Available for both 12 & 24 VDC setups
  • Can handle unlimited length of cable, dependant
  • upon storage space available
  • Available for 16, 30, & 32 amp setups



Glendinning Cablemaster™ Power Cable Handling & Storage
Glendinning Cablemaster™ Power Cable Handling & Storage

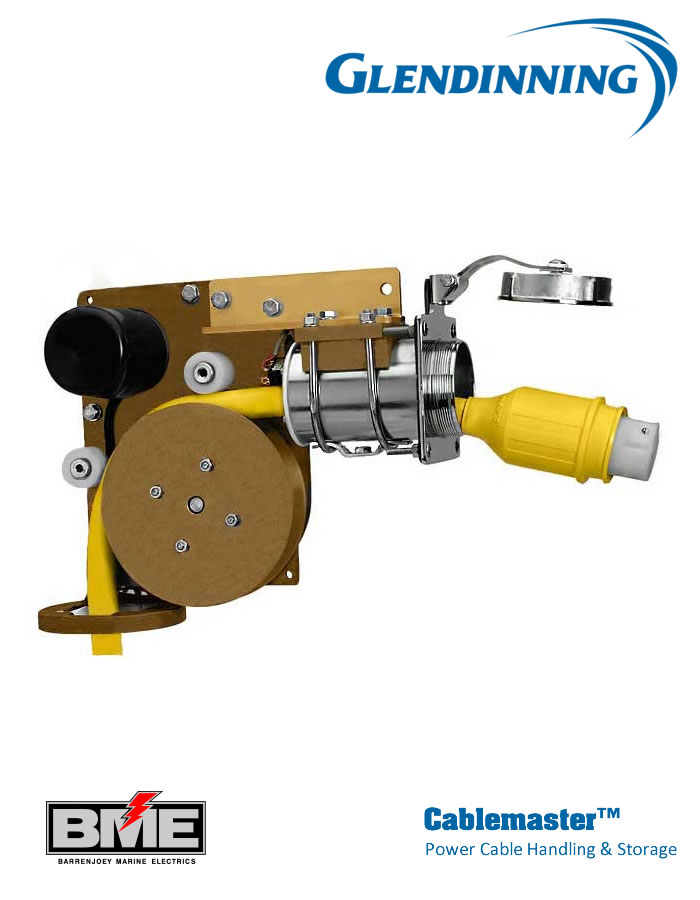

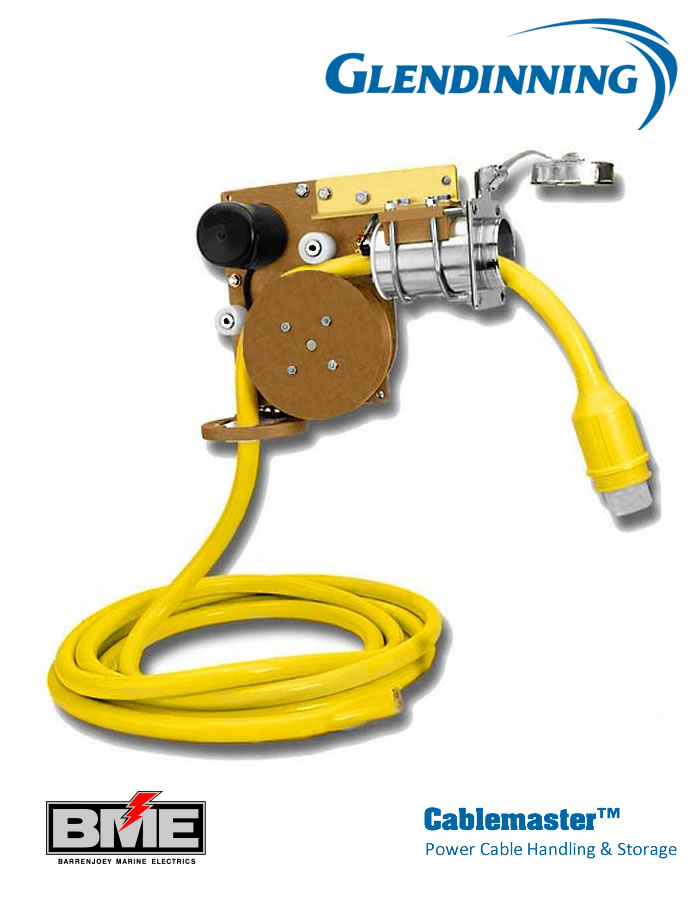

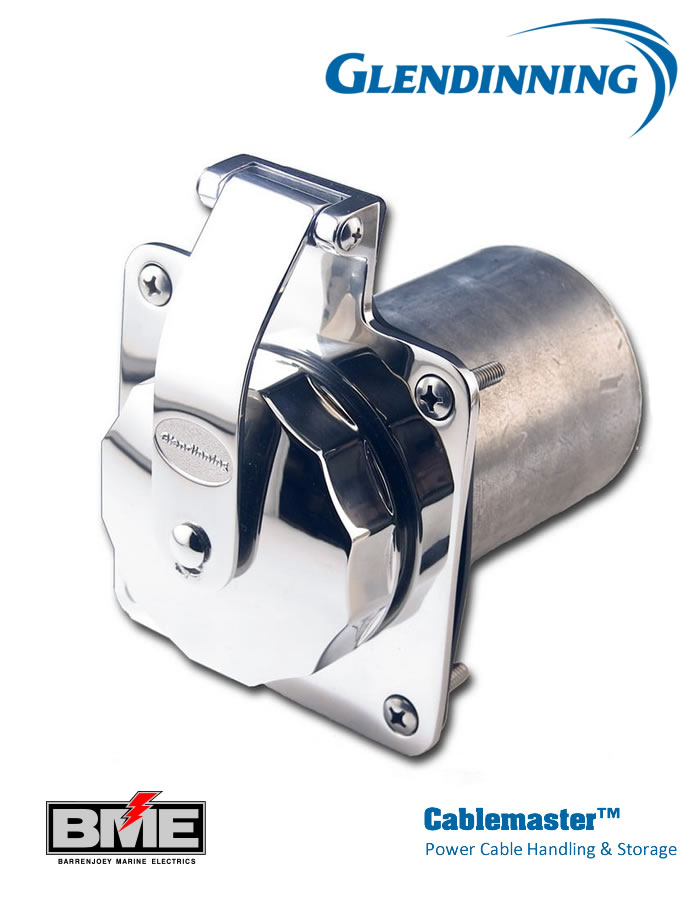

Cablemaster Model CM 7

Cablemaster Model CM-7 is fully tested and approved (CE, ISO 8846).

  • Button to extend and retract your power cable
  • Maximize your time on the water
  • Store your power cable
  • Free up your valuable deck storage space
  • Maintenance free use in any environment
  • Used by major yacht manufacturers worldwide
  • Fully Tested and Approved: CE, ISO 8846
  • Typical Amperage: 50 amp (US) 63 amp (EU)
  • Cable Outside Diameter: 20-29mm
  • Typical Cable Type: #6 AWG / 16mm2
  • Retraction Motor Voltage: 12 or 24 VDC
  • Cable Jacket Material: Type S, ST, SE, PUR

Customizable Features

  • Available for both US and EU power setups.
  • Designed to handle most power cables with a .8″ to 1.15″ (20 to 29mm) outside diameter
  • Available for both 12 & 24 VDC setups
  • Can handle unlimited length of cable, dependant upon storage space available
Glendinning Cablemaster™ Power Cable Handling & Storage
Glendinning Cablemaster™ Power Cable Handling & Storage

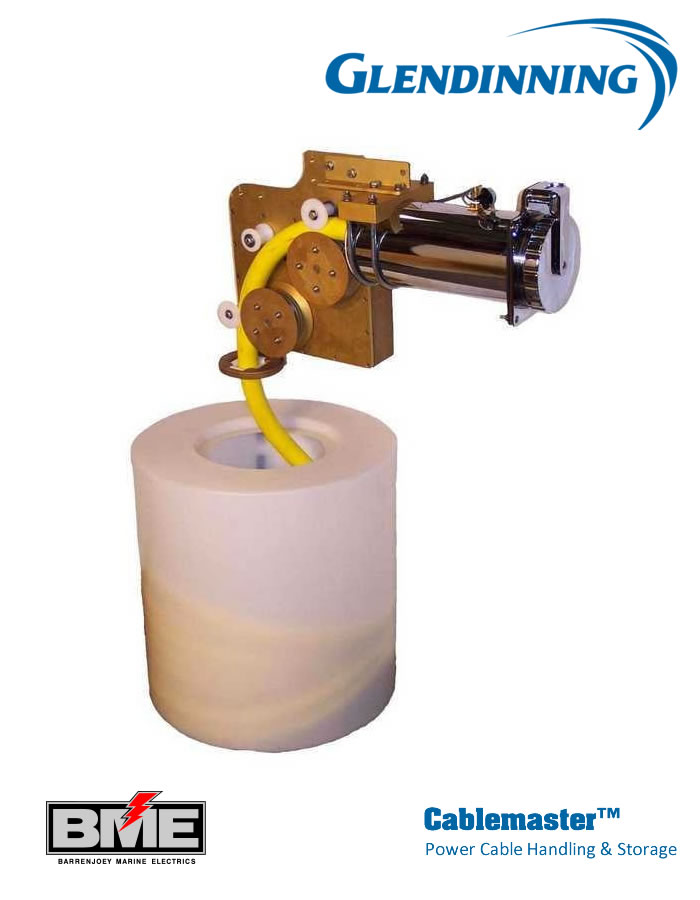

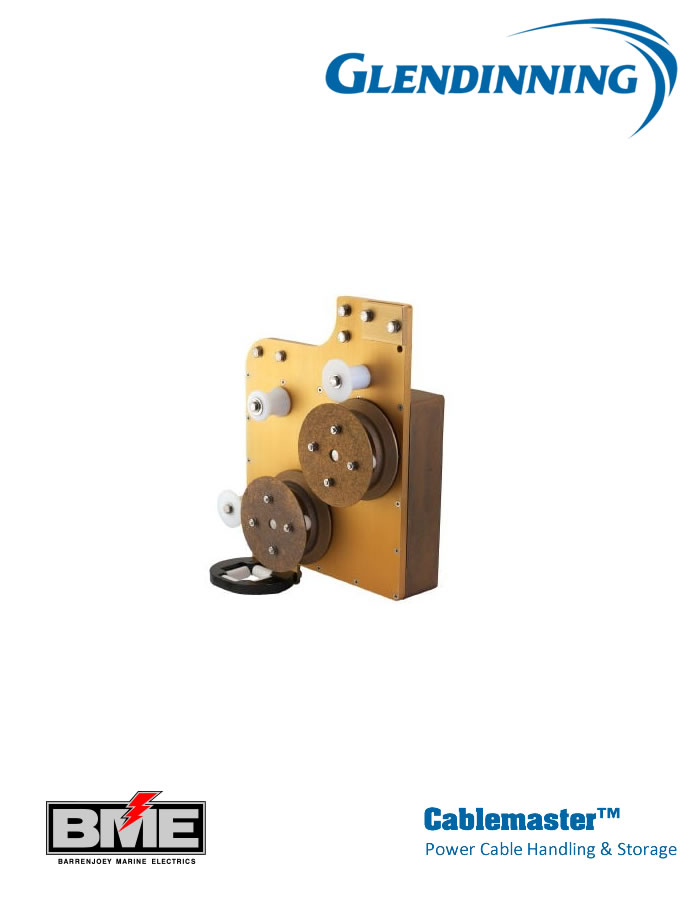

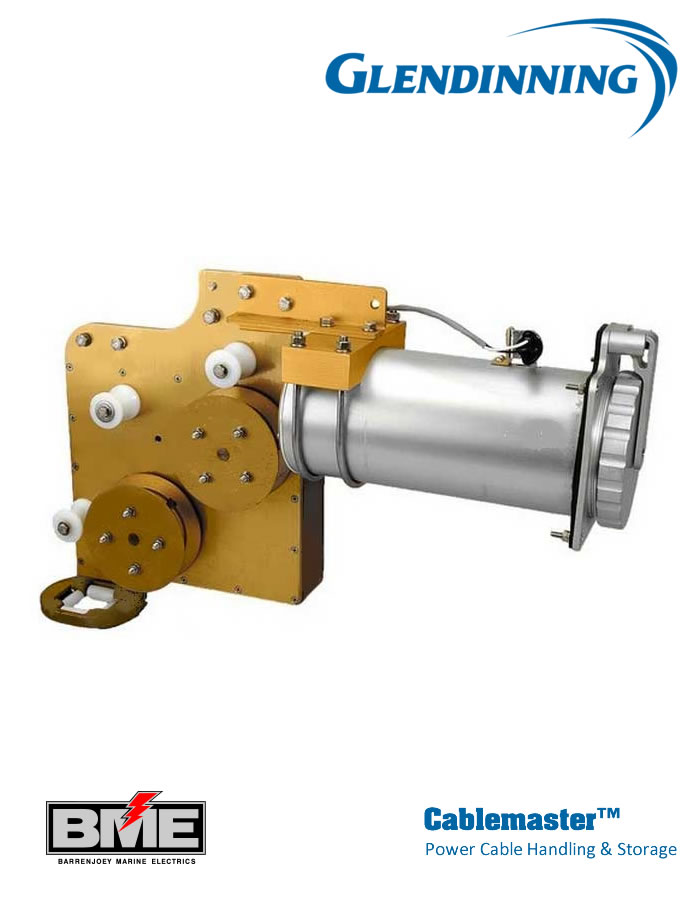

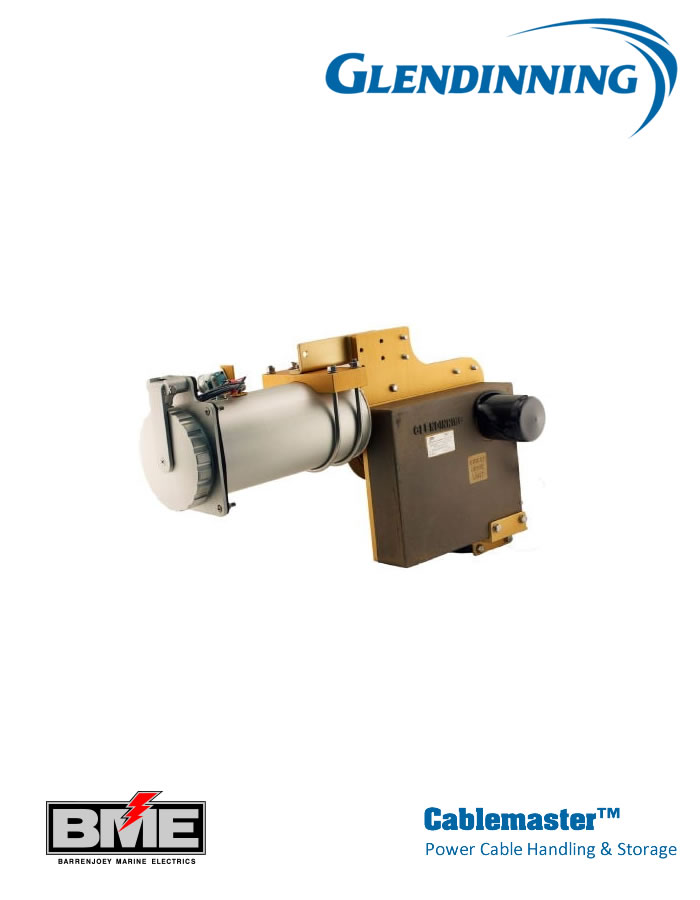

Cablemaster Model CM 8

The Cablemaster Model CM-8 is your final solution when it comes to handling and storing bulky power cable! It is designed to withstand the harsh marine environment which means its durability and reliability is second to none.

  • Typical Amperage: 100-125 amp
  • Cable Outside Diameter: 29-38mm
  • Typical Cable Type: #2 AWG / 35mm2
  • Retraction Motor Voltage: 24 VDC
  • Cable Jacket Material: Type S, ST, SE, PUR

Customizable Features

  • Available for both US and EU power setups.
  • Designed to handle most power cables with a 1.15″-1.5″ (29-38mm) outside diameter
  • Can handle unlimited length of cable, dependant upon storage space available

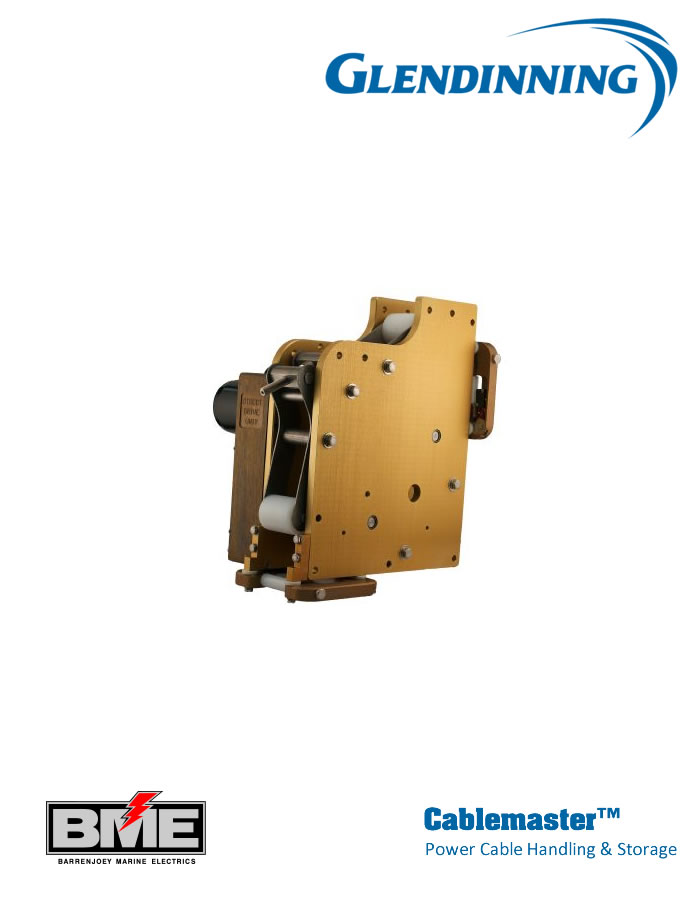

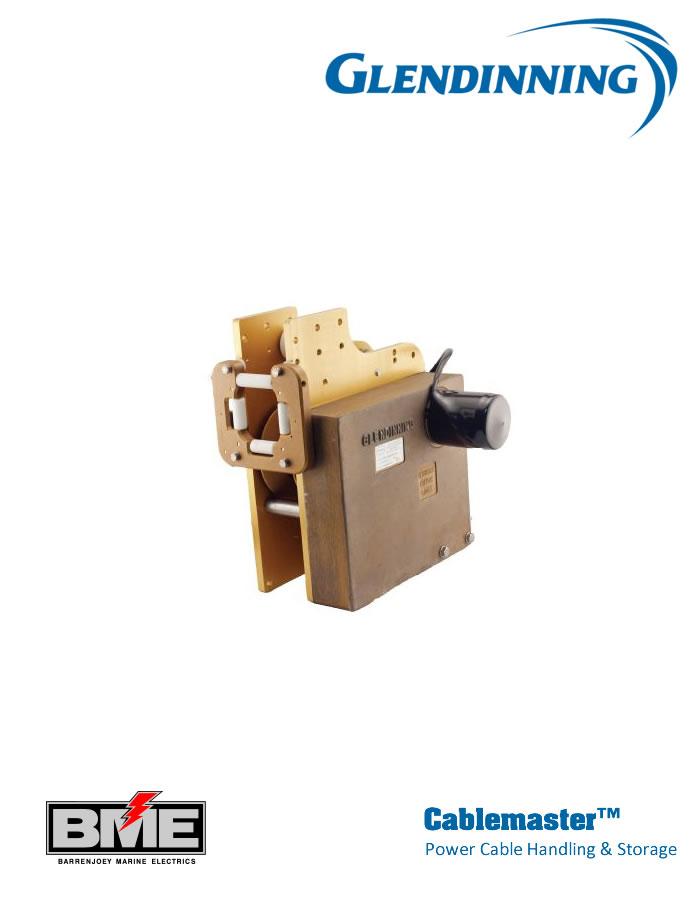

Cablemaster Model CM 9

Cablemaster Model CM-9 is fully tested and approved (ISO 8846).

  • Push a button to extend and retract your power cable
  • Minimizing your time at the dock
  • Store your power cable in areas otherwise inaccessible
  • Free up your valuable deck storage space
  • Built to be maintenance free use in any environment

Typical Amperage: 150 amp (or greater)
Cable Outside Diameter: 38-70mm
Typical Cable Type: #0 AWG / 50mm2 (or larger)
Retraction Motor Voltage: 24 VDC
Cable Jacket Material: Type S, ST, SE, PUR

Customizable Features

  • Can handle most 150+ amp power cables
  • Designed to handle most power cables with a 38-70mm outside diameter
  • Can handle unlimited length of cable, dependant upon storage space available
Glendinning Cablemaster™ Power Cable Handling & Storage

Glendinning Cablemaster™ CR Series

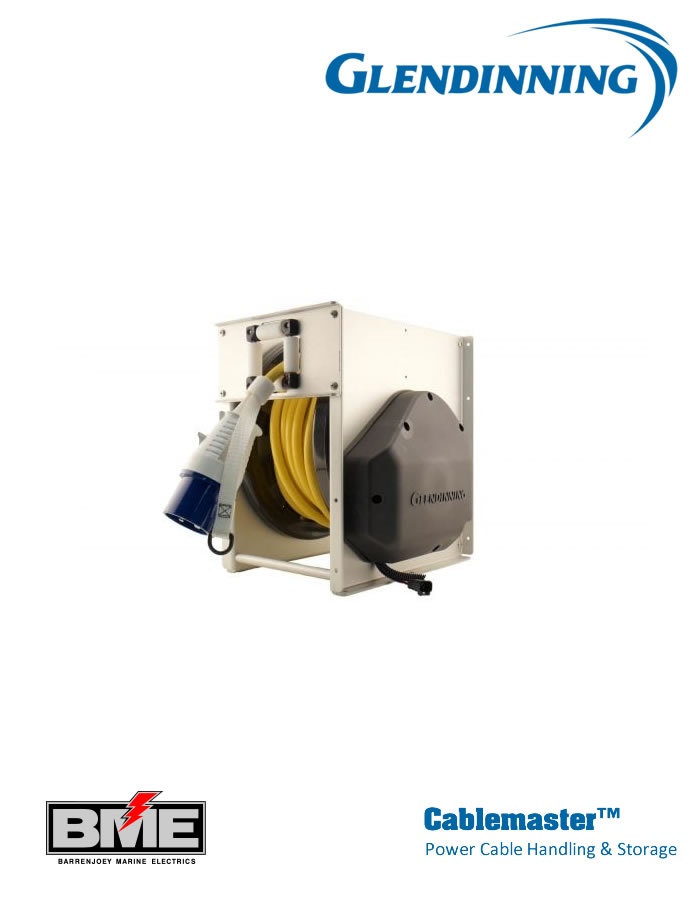

Cablemaster CR Series Model
CRMA 16/30/32

Glendinning Cablemaster™ Power Cable Handling & Storage

Cable Length: 15-25m
Cable Type: 16, 30, & 32 amp
Retraction Motor Voltage: 12 or 24 VDC
Cable Jacket Material: Type S, ST, SE, PUR
Frame / Metal Components: Aluminum (Anodized)

  • Push button cable retraction and storage
  • ‘Zero Effort’ Pull-Out – No more heavy pulling!
  • Store power cable in the smallest possible area
  • Easy to Install – No mounting bracket requred
  • Designed to handle any environment on earth!
  • Fully Tested and Approved – ISO 8846

Customizable Features

  • Available for both 12 & 24 VDC setups
  • Designed to handle most 16, 30, & 32 amp power cables (3 or 4 cond.)
  • Optional detachable mounting base for a variety of installation options
  • Can handle up to 82′ (25m) of cable, dependant upon diameter
  • Can handle most cable jacket materials, including S, ST, SE, PUR

Cablemaster Model CRMA 50/63

Typical Amperage: 50 amp (US) 63 amp (EU)
Cable Length: 15m
Cable Type: 50 & 63 amp
Retraction Motor Voltage: 12 or 24 VDC
Cable Jacket Material: Type S, ST, SE, PUR
Frame / Metal Components: Aluminum (Anodized)

Cablemaster Model CRR-50LP

Typical Amperage: 50 amp
Cable Length: 9.8m
Cable Type: 50 amp
Retraction Motor Voltage: 12 or 24 VDC
Cable Jacket Material: Type S,SE
Frame / Metal Components: Steel (E-coat)

Glendinning Cablemaster™ Power Cable Handling & Storage

Cablemaster Model CRRA-50

Typical Amperage: 50 amp
Cable Length: 15.2m
Cable Type: 50 amp
Retraction Motor Voltage: 12 or 24 VDC
Cable Jacket Material: Type S,SE
Frame / Metal Components: Aluminum (Anodized)

Cablemaster Model CRR-50

Typical Amperage: 50 amp
Cable Length: 11m
Cable Type: 50 amp
Retraction Motor Voltage: 12 or 24 VDC
Cable Jacket Material: Type S,SE,
Frame / Metal Components: Steel (E-coat)

Glendinning Hosemaster Model LW

Glendinning Hosemaster Hose Handling & Hose Storage Systems
  • Manual pull out, motorized retraction & storage
  • “Zero-effort” pull out technology – no spring to overcome
  • Integrated level wind guide roller for optimized storage capacity
  • Water & High Pressure Hose models available
  • Hose Types: Water
  • Hose Length: 30.5m
  • Hose ID: 1/2″ – 5/8″
  • Input Voltage: 12 or 24 VDC
  • Integrated level wind automatically retracts hose the most compact way possible
  • Retract and store your water hose with ease
  • Easily pull out as much hose as you need
  • Store your water hose in the most compact way
  • Simple installation using mounting brackets and templates
  • Built to provide years of maintenance free use in any environment. Manufactured from stainless steel, aluminum, and reinforced plastic
  • Approvals: Potable water approved, Hose: NSF61, conforms to TS-25

Customizable Features

  • Model LW is currently manufactured with water and pressure washer hose, but reels can be designed to handle a variety of different hoses
  • Designed to handle hose with a 1/2″ & 5/8″ outside diameter
  • Can handle up to 100 feet of hose (1/2″), dependant on diameter
  • Available for both 12 & 24 VDC setups
  • Optional Remote Control Available
  • Variety of installation mounting options available
  • Variety of water hose nozzles and accessories available

Glendinning Hosemaster Model PW

Glendinning Hosemaster Hose Handling & Hose Storage Systems
  • Hose Types: Pressure Washer
  • Hose Length: Up to 100′ (30.5m)
  • Hose ID: 3/8″
  • Input Voltage: 12 or 24 VDC
  • Integrated level wind automatically retracts hose the most compact way possible
  • Retract and store your pressure washer hose with ease
  • Easily pull out as much hose as you need
  • Store your water hose in the most compact way
  • Simple installation using mounting brackets and templates
  • Built to provide years of maintenance free use in any environment. Manufactured from stainless steel, aluminum, and reinforced plastic
  • Approvals: Potable water approved, Hose: NSF61, conforms to TS-25
  • Hose Types: Water
  • Hose Length: 30.5m
  • Hose ID: 1/2″ – 5/8″
  • Input Voltage: 12 or 24 VDC
Glendinning Hosemaster Hose Handling & Hose Storage Systems

Customizable Features

  • Currently manufactured with water and pressure washer hose, but reels can be designed to handle a variety of different hoses
  • Designed to handle hose with a 1/4″ to 5/8″ outside diameter
  • Reel Capacity: Up to 100′ (30.5m) of .68″ dia. (17.3 mm) OD hose
  • Hose Connection: 3/8″ NPT(F) Inlet and Outlet
  • Available for both 12 & 24 VDC setups
  • Optional Remote Control Available
  • Variety of installation mounting options available
