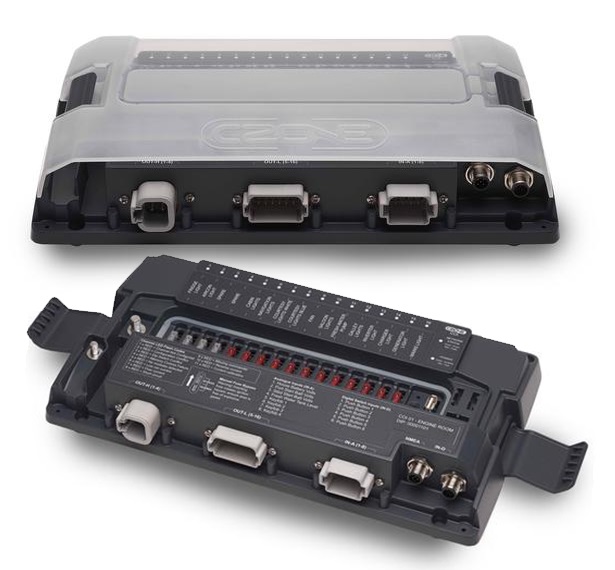

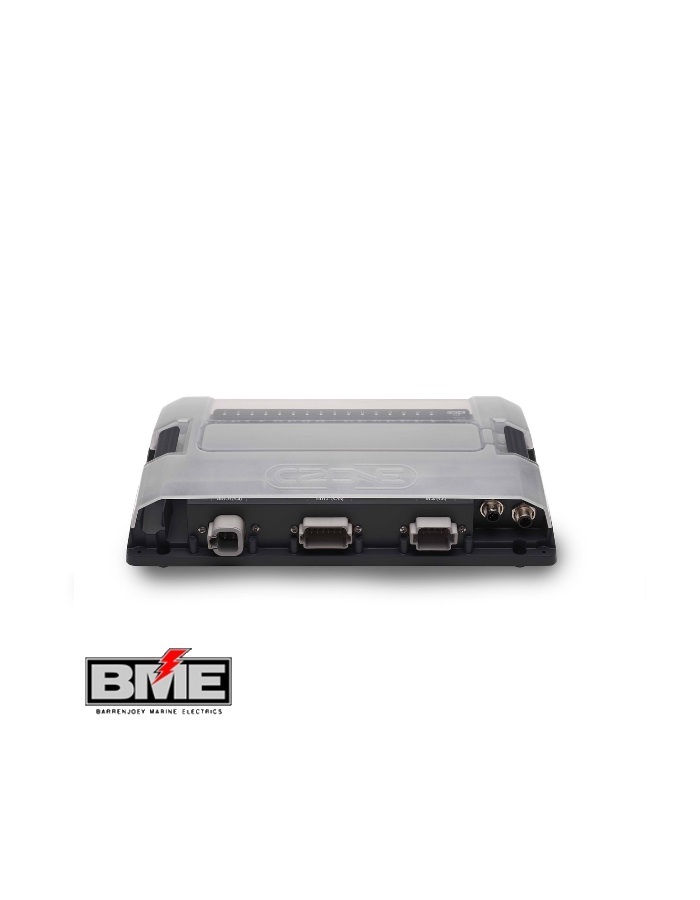

CZone Combination Output Interface (COI) with Connectors

CZone Combination Output Interface (COI) The COI’s high continuous power output (150 Amps), plus space, installation time and cost savings also make it the perfect building block for larger systems. BEP has pioneered safe, reliable digital switching products for the harsh marine environment. Since its release in 2008, CZone has powered thousands of vessels around the globe including yachts in the last two Volvo Ocean Races.

The new COI module builds on that reputation for ultimate reliability and ease of use with a host of new improvements that benefit both the installer and end-user.

Partnered with either a dedicated CZone display, or with a Multi Function Display from one of our industry leading integration partners (B&G, Furuno, Garmin, Lowrance, Simrad), the Combination Output Interface heralds a new era in providing simple, intuitive control over the increasingly complex systems found on today’s vehicles and vessels.

Features

• High density 30 channel module minimizes installation, interconnections and footprint, while delivering best value per circuit
• Full mechanical fuse protection plus bypass on all circuits as required by ABYC/CE
• Industry standard Deutsch connectors provide fast, plug-n-play installation
• Optional cable cover offers improved aesthetics and greater mounting flexibility
• Proven, rugged CZone design includes IPX5 Water Ingress Protection and NMEA 2000 certification
• High power Bilge Pump channels allow manual control plus “pump running” feedback from a single channel – without additional wiring
• USB port provides easy system update from USB flash drive

CZone Combination Output Interface (COI) Specifications

• Communication protocol: NMEA 2000
• Channels: 30
• Output channels (high): 4 x 25 A
• Output channels (low): 12 x 10 A (dimmable)
• Analogue inputs: 8 (positive or negative switching, 0-32 V), 0-1000 Ohm resistance, 4-20 mA current
• Additional monitoring: 2 voltage sensors (on main positive stud and NMEA 2000 power)
• Circuit current monitoring: all 16 output channels
• Circuit protection: configurable electronic fuse + mechanical fuse and bypass
• Digital switch inputs: 6 digital input switches with backlight via digital breakout
• Max. continuous current: 150 A at 40 °C (derating > 40 °C)
• NMEA 2000 power consumption: 250 mA at 12 V, 180 mA at 12 V standby
• Connectors: Deutsch
• Power supply: M8 (5/16”) stud positive, M6 (1/4”) stud negative
• Voltage: 9-32 V (with power available LED and voltage monitoring)
• Bilge pump circuits: 4 high current channels: integrated manual control and ‘pump running’ detection
• Protection degree: IPx5 (mounted at 0° +/- 90°)
• Dimensions (incl. optional cable cover) hxwxd: 338 x 235 x 62 mm
• Weight: 1.9 kg
• Approvals: CE, ABYC, NMEA
