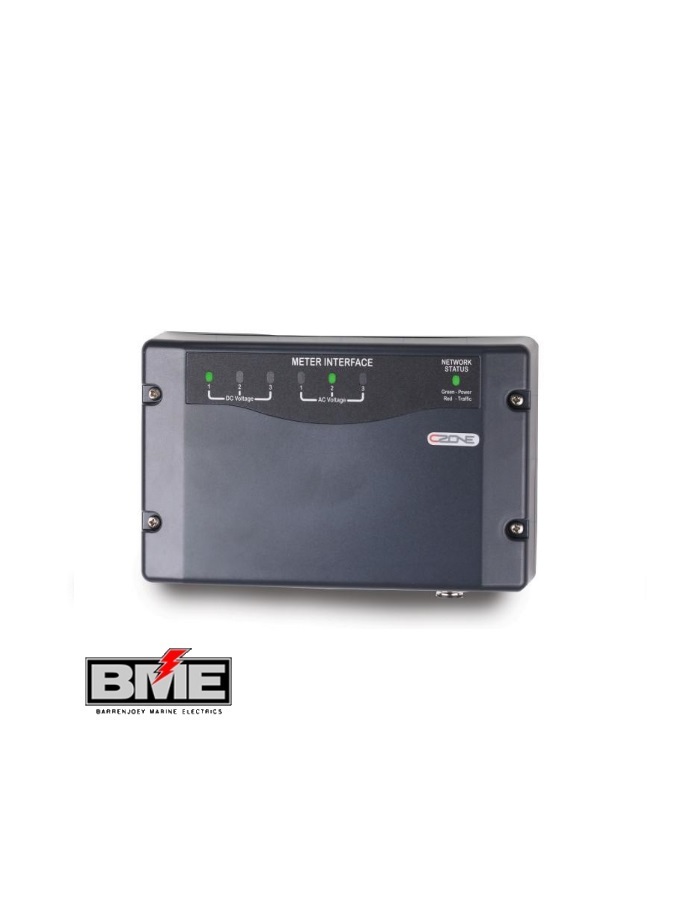

CZone Meter Interface The Meter Interface accepts inputs from external AC and DC power metering sensors such as: AC and DC voltage and amps, AC kWatts, and DC battery capacity in amp hours and % remaining. All feature high and low alarms that can be set by the user.
Features AC
- 3 x AC voltage inputs (multi voltage)
- 2 x AC current inputs
- Calculates true RMS power
- 3 x DC voltage inputs (multi voltage)
- 2 x DC current inputs
- Calculates battery capacity as ampere hours and percentage charge remaining
- Resolution for current metering down to 0.1 A
CZone Meter Interface Specifications
- Protection degree: IPX5 water ingress
- Dimensions, hxwxd: 100 x 156 x 42 mm
- Weight: 281g
