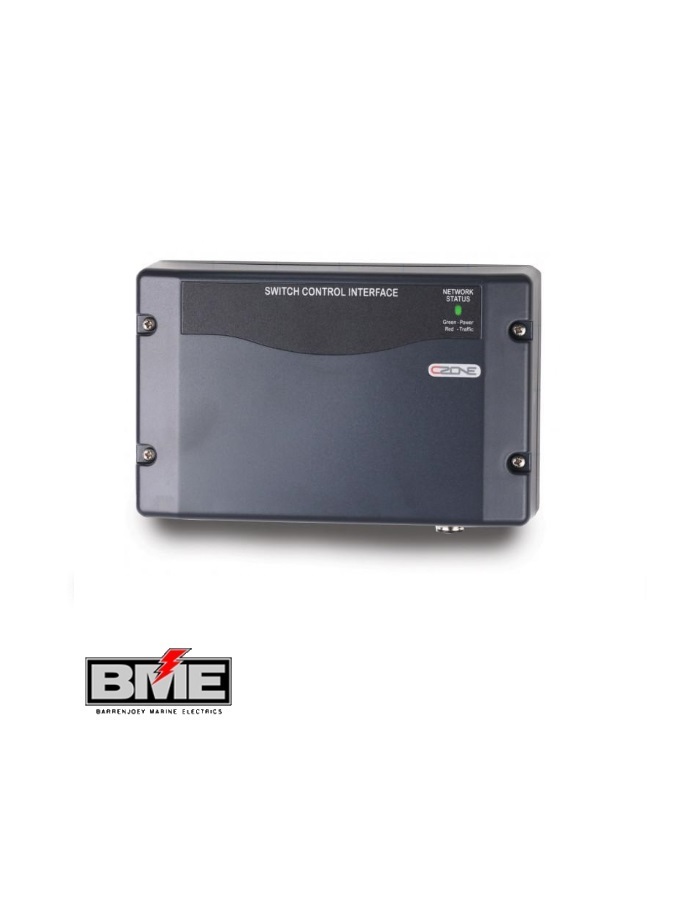

CZone Switch Control Interface W/ Seal

CZone Switch Control Interface W/ Seal The Switch Control Interface provides an interface between the CZone network and the traditional mechanical switches with which manufacturers and users are familiar. The Switch Control Interface simplifies your wiring, supports your existing choice of switches, protects against failures and allows for more installation options. Features

• Single switch position can control multiple Output Interface channels.
• Attaches to switch panels via custom Switch Control Interface cable.
• Multiple Switch Control Interface switches can control single Output Interface channel.
• Output for backlighting of switch labels (dimmable).
• Outputs systems on and function/fault codes to systems on LED of switches (dimmable).
• Programmable switch types.
• 8 inputs per module (16 individual controls).
• Sequential button press functionality.

CZone Switch Control Interface Specifications

---

• Protection degree: IPX5 water ingress
• Dimensions, hxwxd: 100 x 156 x 42 mm (3.9 x 6.1 x 1.7 inch)
