Airmar 110WX 12/24vDC Wind & Weather Station w/out cable
Vanemar Smart High Water Sensor, detects high water in bilges. Vanemar Smart High Water Sensor $161.41
Airmar 200WX 12/24vDC Wind & Weather Station w/out cable Furuno Airmar 200WX Wind & Weather Station Instrument $3,030.50

Furuno Airmar 110WX Weather Station Instrument

$1,870.55

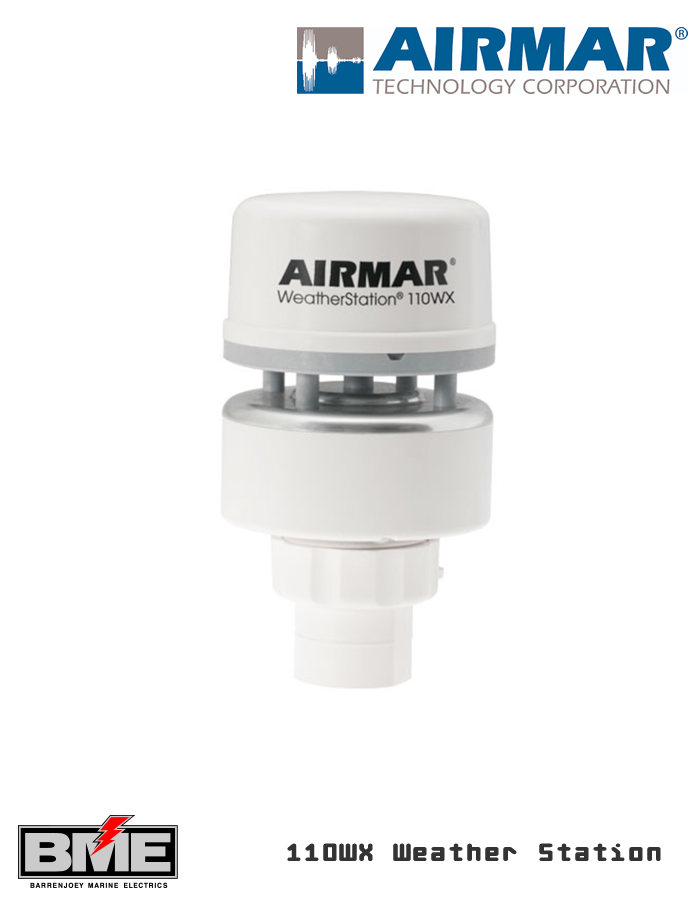

Airmar 110WX 12/24vDC Wind & Weather Station w/out cable

The model 110WX is Airmar’s solution for marine or land-based, stationary, weather-monitoring applications. The Airmar 110WX gives wind speed and direction, air temperature, and barometric pressure readings. Feature rich and encased in a durable, rugged housing that is IPX6 rated, the Airmar 110WX is the right component for either marine-based positions or agriculture field locations. Reliability and performance, along with no moving parts, makes the 110WX a trouble-free and affordable choice.

Enquire about this product

Nationwide Shipping & Support

Guaranteed Safe Checkout

Airmar 110WX 12/24vDC Wind & Weather Station w/out cable
Furuno Airmar 110WX Weather Station Instrument
$1,870.55

    Call Back request

    Features

    • Ultrasonic measurement of apparent wind speed and direction
    • Barometric pressure
    • Air temperature
    • Wind chill
    • Housing IPX6 rated for water-ingress protection
    • Data output via a single cable (various lengths available)
      • NMEA 0183/ASCII serial data protocol over RS-232 interface
      • NMEA 2000 protocol over CAN

    Options

    • Relative humidity module
      • Enables dew-point and heat-index calculations
      • Field serviceable
      • WeatherStation housing rated IPX4

    Specifications

    Recommended Use: Marine Mobile or Stationary
    Humidity: Optional
    Power Supply Voltage: 9 to 40 VDC
    Power Supply Current: <50mA (<0.6 W) at 12 VDC
    Communications Available Protocol: Serial – NMEA 0183, CAN – NMEA 2000
    Waterproof Rating: IPX6 (Relative Humidity/IPX4)
    Air Temp Accuracy: ±0.3°C at 20°C
    Air Temp Range: -40 to 80°C (-40 to 176°F)
    Air Temp Resolution: 0.1°C
    Apparent Wind Speed and Angle: Yes
    Barometric Pressure Accuracy: ±0.5 hPa at 25°C (or better)
    Barometric Pressure Range: 300 to 1100 hPa
    Barometric Pressure Resolution: 0.1 hPa
    Certs And Standards: CE, IPX6 (IPX4 with optional Relative Humidity sensor), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
    Communications Available Hardware Interface: Serial RS232, Serial RS422, CAN
    Communications Serial Data Transmission Code: ASCII
    Communications Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
    Mounting Thread: Standard 1”-14 UNS (3/4” NPT optional)
    NMEA 2000 LEN: 1
    Note: Cables sold separately unless otherwise specified
    Operating Temp Range: -25 to 55°C (-13 to 131°F)
    Optional RH Accuracy: ±5% RH at 0 to 90% RH at 20°C
    Optional RH Range: 0 to 100% RH
    Optional RH Resolution: 0.1% RH
    Stationary: Yes
    True Wind Speed and Direction: Yes (Manual Alignment to North)
    Weight: 275 g (0.6 lb.)
    Wind Direction Accuracy: ±3° at 10 m/s
    Wind Direction Calculations: User configurable damping
    Wind Direction Range: 0° to 359.9°
    Wind Direction Resolution: 0.1°
    Wind Speed Accuracy: 5% at 10 m/s at 4 angles
    Wind Speed Calculations: User configurable damping
    Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
    Wind Speed Resolution: 0.1 m/s

    Download Airmar Manual

    Click here to download Airmar WX Weather Station Instrument Manual
