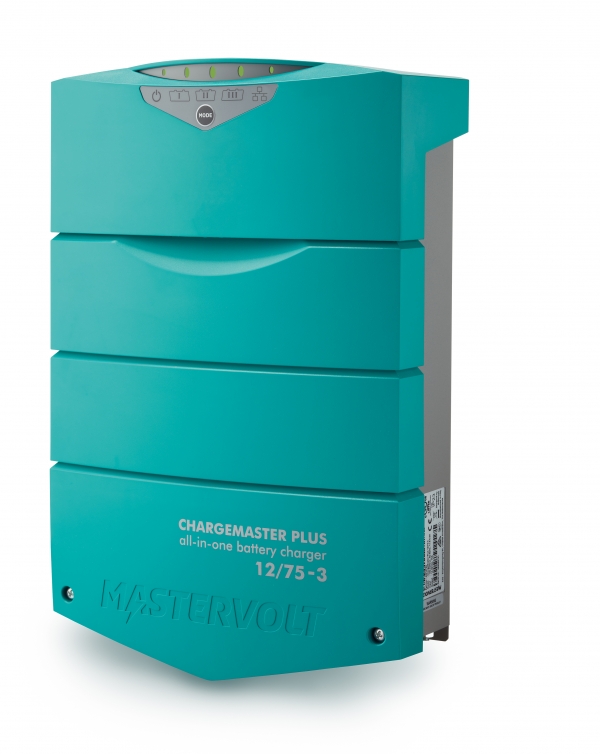

The Mastervolt ChargeMaster Plus is the next-generation marine battery charger, integrating multi-bank charging, battery isolator, DC-DC converter and VSR into one compact device. This 12V / 75A / 3-bank model charges any combination of Lithium Ion, Gel or AGM batteries simultaneously using the 3-step+ method with pre-float to prevent overcharging. Auto-ranging input (80–275V AC, 35–70 Hz). Revival mode recovers fully depleted batteries. MasterBus, CZone and NMEA 2000 communication supported.
Specifications
- Output Voltage: 12V
- Total Charge Current: 75A
- Battery Outputs: 3
- Input Voltage: 80–275V AC, 35–70 Hz (auto-ranging)
- Battery Types: Li-Ion, Gel, AGM (any combination)
- Communication: MasterBus, CZone, NMEA 2000 (via interface)
- Features: Revival mode, Priority Charge, Smart Input, Safe Charge, Pre-float
- Certifications: CE, ABYC, UL, cULus, SAE, CEC/DOE, ISO, ACMA
