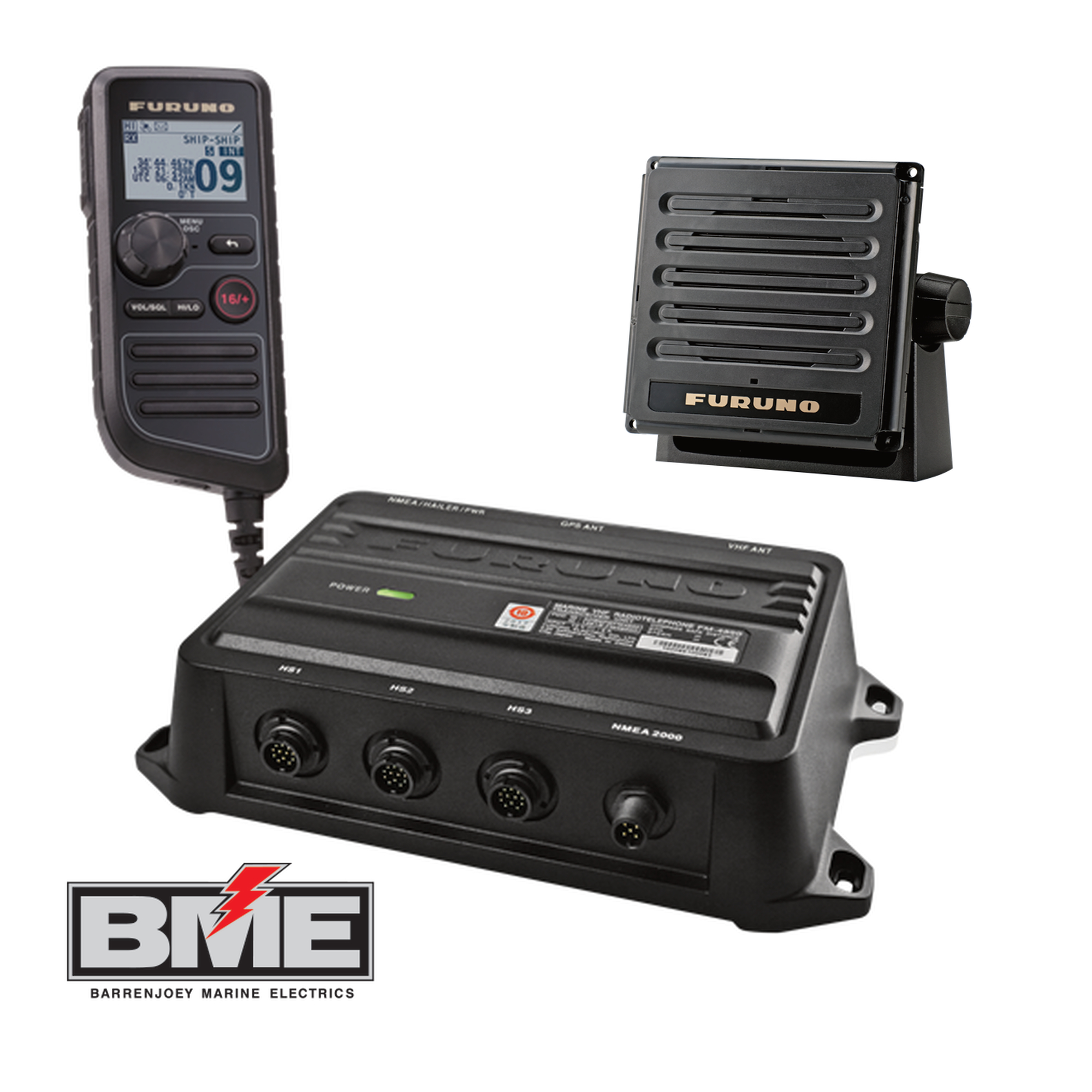

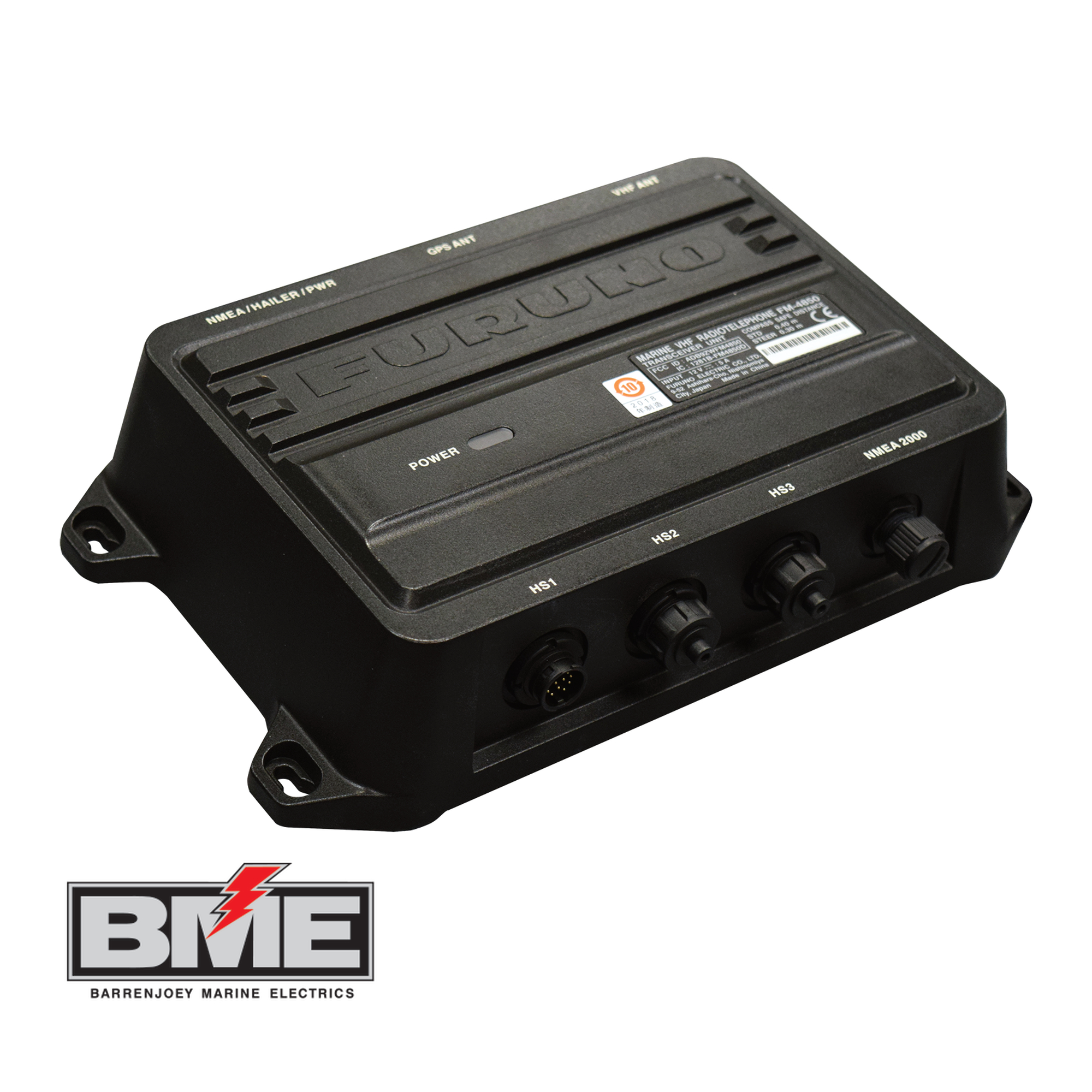

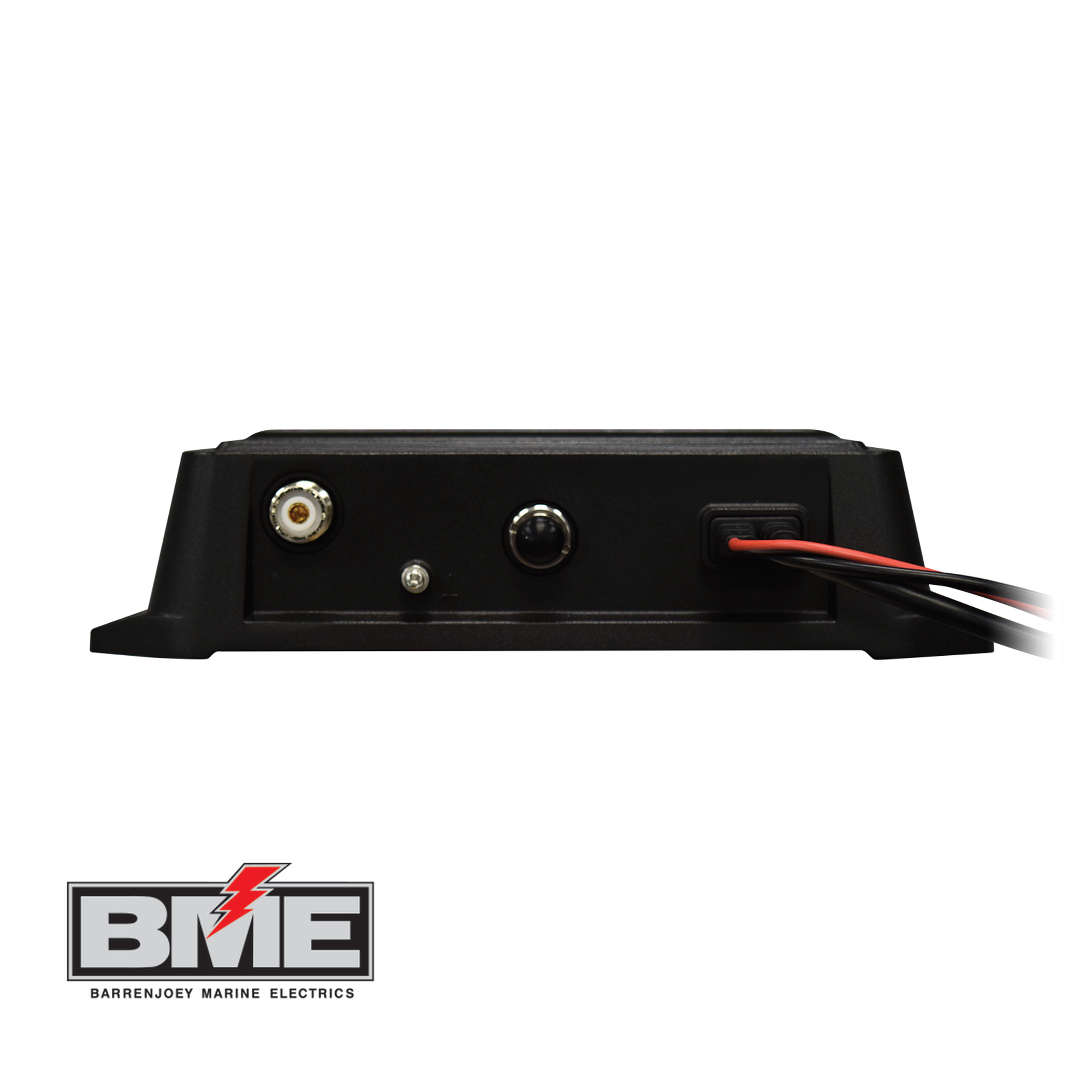

Furuno FM4850 Black Box VHF with HS4800 handset & SP4800 speaker

$1,896.68

Furuno FM4850 Black Box VHF with HS4800 handset & SP4800 speaker

Brand

Furuno

Clear
SKU: N/A Category: Tag: Brand:
Description

Description

Title

PART ID: IMD03656000

The Ultimate 5-in-1 Tool
VHF Radio, GPS, AIS, Loud Hailer, NMEA2000 and DSC Calling (Black Box Type)

Includes:

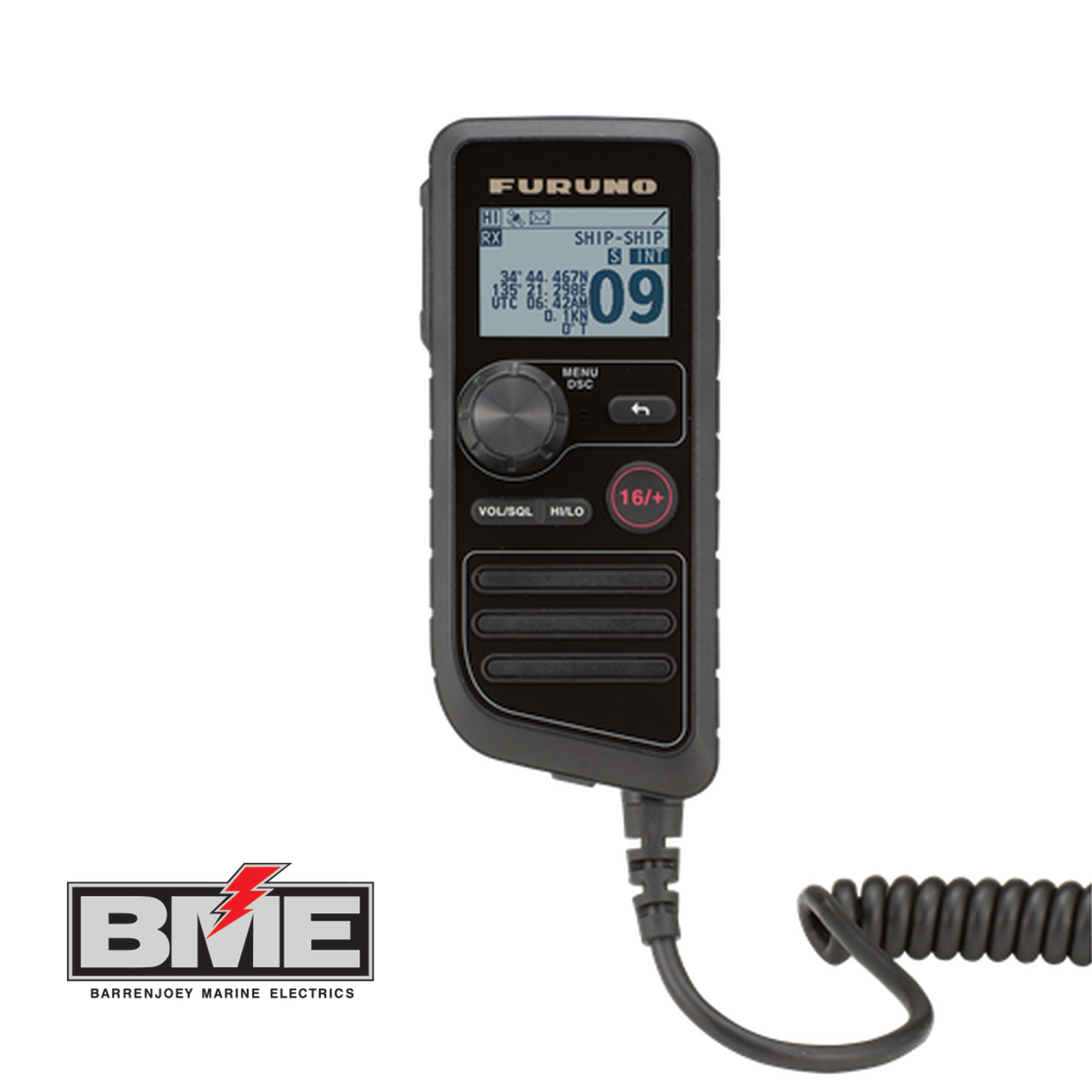

  • Handset HS-4800

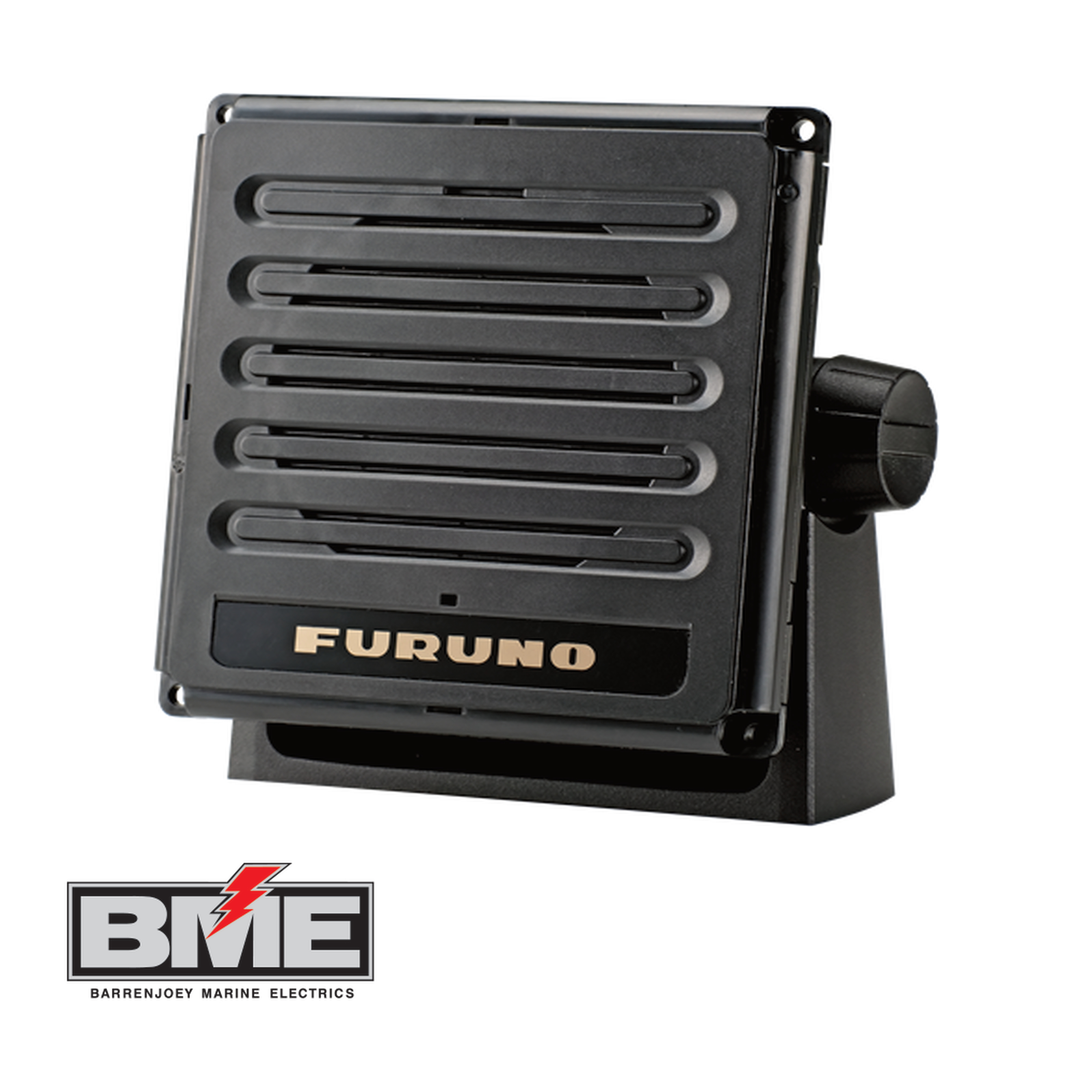

  • Speaker SP-4800

Features

  • Built-in AIS receiver: When connected to an MFD or Chart Plotter that can read and display AIS data, the built-in AIS receiver will guarantee your safety at sea by providing all the data you need for situational awareness and collision avoidance.
  • Loud Hailer: 15 W PA/Loud Hailer having 8 automatic fog/warning signals and a listen-back capability allowing for two-way communication.
  • Class D DSC: With Class D DSC (Digital Selective Calling), the FM-4800 allows you to transmit both routine calls and distress calls in case of an emergency.
  • NMEA2000 Interface: Plug and play NMEA2000 interface allows you to easily connect the FM-4800 to your navigation devices. When connected to the NavNet TZtouch2, DSC calls can be initiated directly from your MFD.
  • Dual Station: ​The optional handset HS-4800 supports al the functionality of the FM-4800 and works as a second station. Intercom function is also supported.
  • 25 W/1 W output power
  • Loud Hailer/ Fog Horn
  • Dual Station with optional handset
  • ATIS mode for inland waterways
  • 10 weather channels
  • Fully waterproof (IP67)
  • Up to 3 Handsets HS-4800 and Speakers SP-4800 connectable

Furuno FM4850 Black Box Specifications


General

  • Channels: International, USA and Canada
  • Frequency Stability: Within ± 1.5 kHz
  • Communication System: Simplex / Semi-duplex
  • Antenna Impedance: 50 ohms
  • Display: Monochrome, 192 x 128 dot (FM-4800, HS-4800)

Transmitter

  • Frequency Range: 156.025 MHz to 162.000 MHz
  • Output Power: 25 W max., 1 W at power reduction
  • Frequency Deviation: ± 5 kHz max
  • Spurious Emission: Standby : less than 2nW
  • Transmit: less than 0.25 μW, 16K0G3E (F3E9) Voice, 16K0G2B (F2B) DSC

Receiver

  • Frequency Range: 155.500 MHz to 163.275 MHz
  • Sensitivity: ± 6 dBμV e.m.f. or less (SINAD 20 dB)
  • Channel Selectivity: 70 dB or more
  • Spurious Response: 70 dB or more

DSC

  • Protocol: Class D DSC
  • Sensitivity: 0 dBμV e.m.f. or less (BER < 1%)
  • Channel Selectivity: 70 dB or more
  • Spurious Response: 70 dB or more

AIS RECEIVER

  • Receiver Frequency (CH): 161.975 MHz (AIS1), 163.025 MHz (AIS2)
  • Sensitivity: -107 dBm or less (PER < 20%)
  • Channel Selectivity: 70 dB or more
  • Spurious Response: 70 dB or more

GPS RECEIVER

  • Receiving Frequency: 1575.42 MHz
  • Number of channel: 72 channels
  • Accuracy: 10 m
  • Position Fixing Time (cold start): 120 sec typical
  • Position Update Interval: 1 sec

LOUD HAILER/ FOG HORN

  • Output Power: 30 W max. (4 ohm)

INTERFACE

  • Number of port: NMEA0183 2 port (IN: 1, OUT: 1), NMEA2000 (3LEN) 1 port
  • NMEA0183 Sentence Input: TM, GGA, GGL, GNS, RMA, RMC
  • Output: DSC, DSE, GLL, RMC, VDM
  • NMEA2000 PGN: Input: 059392/904,060160/416/928, 065240,126208,127258,129026,029,044 Output : 059392,060928,126208/464/993/996/998, 129025/026/029/038/039/040/041/540/793/794, 129795/797/798/801/802/808/809/810

POWER SUPPLY

  • Power Voltage: 12.0 VDC (-10%, +30%) 5.0 A Max

ENVIRONMENT

  • Ambient Temperature: -15°C to +55°C
  • Relative Humidity: 93% or less a +40°C
  • Degree of Protection: IP67 (FM-4800, HS-4800, SP-4800)
