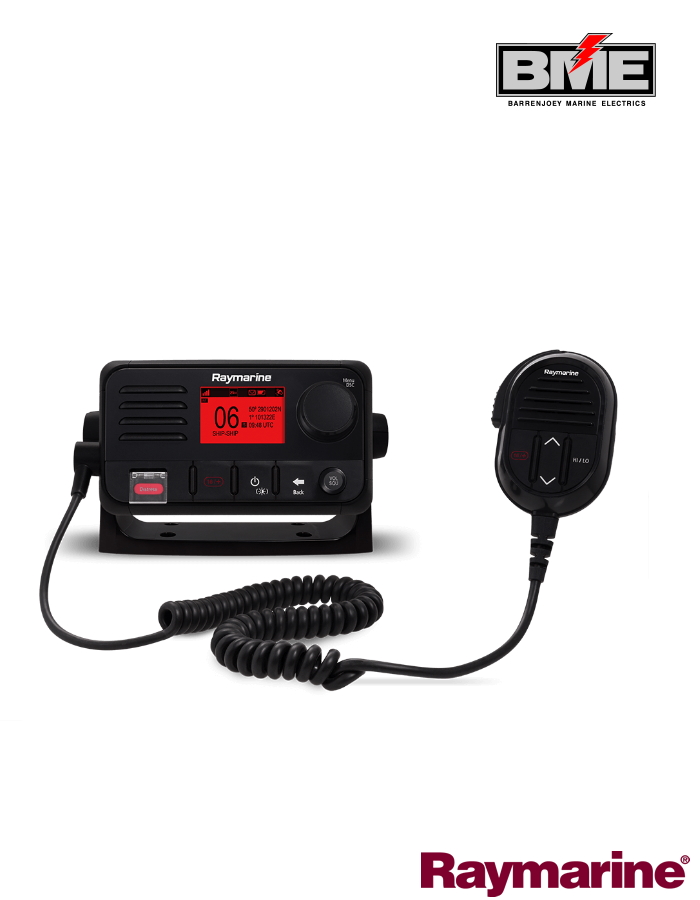

Ray53 VHF Radio with Integrated GPS Receiver

Ray53 VHF Radio with Integrated GPS Receiver Raymarine’s Ray53 VHF Radio with Integrated GPS Receiver radio is small in size but big on features and performance. Ray53 VHF Radio with Integrated GPS Receiver is a full-function VHF marine radio with Class D Digital Selective Calling (DSC) and a built-in GPS receiver. Simply program your boat’s MMSI number into the Ray53 and immediately benefit from the enhanced calling and safety features of DSC. Features

• Compact marine VHF with Digital Selective Calling
• Built-in GPS/GNSS receiver with a connection point for an optional external antenna
• NMEA2000 and NMEA0183 networking for integration with onboard systems
• Audio output connection for optional passive remote speaker (A80542)
• Surface and trunnion mount kits included
• Styled to compliment the Axiom family of multifunction displays

Ray53 VHF Specifications

---

ENVIRONMENTAL SPECIFICATIONS

• Operating Temperature: -20ºC (-4ºF) to +60ºC (140ºF)
• Storage Temperature: -25ºC (-13ºF) to +70ºC (158ºF)
• Relative Humidity: 95%
• Water Proofing: IPx6 & IPx7
• Connections: 1x NMEA 0183 | 1x SeaTalkng ® / NMEA 2000 | 1x Audio (RCA) | 1x GNSS (GPS) antenna (TNC)
• Nominal Supply Voltage: 12 V dc (Reverse polarity and over voltage protection)
• Operating Voltage Range: 9 Vdc to 16 Vdc
• Current Consumption: Less than 6 A at high power (13.6 V) | Standby: 600 mA | Receive: 2 A
