Furuno DFF-3D Multi Beam Digital Network Sounder + Transducer Network

DFF-3D Multi Beam Digital Network Sounder + Transducer Network

PART ID: IMD03357000 Options

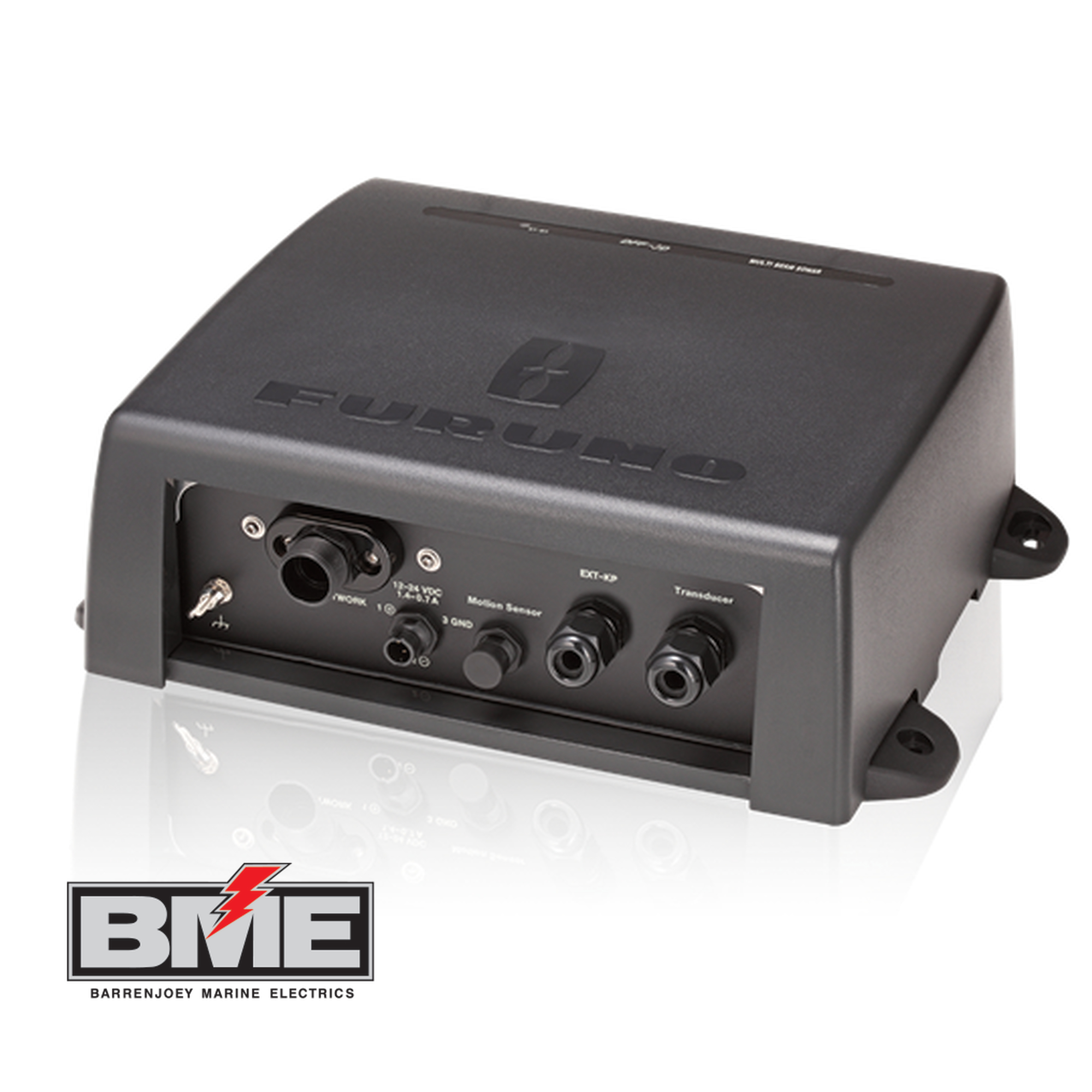

1. DFF-3D Multi Beam Digital Network Sounder w/o transducer

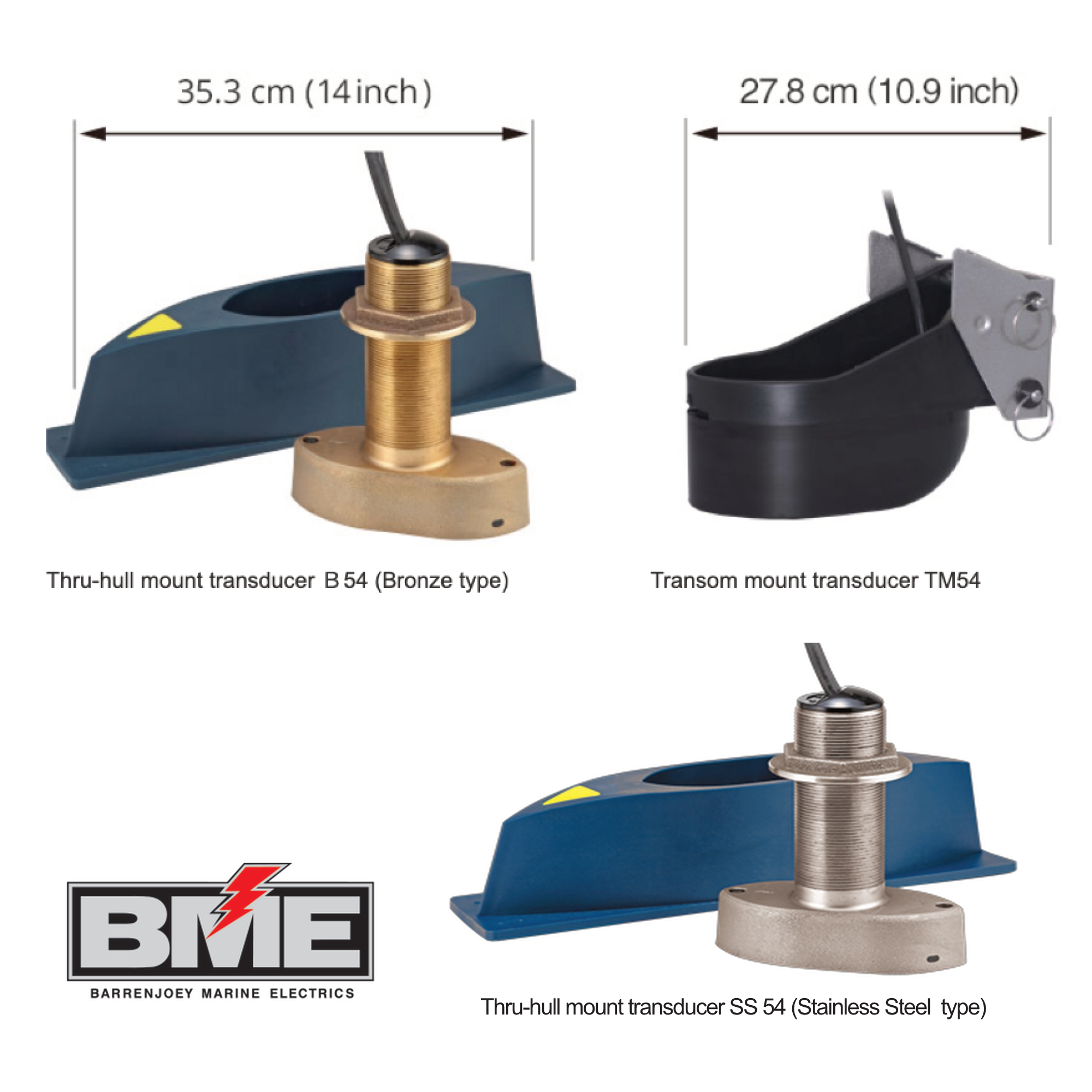

2. Add on Bronze B54 165kHz multi beam transducer, built in motion sensor c/w high speed fairing
3. Add on S/Steel SS54 165kHz multi beam transducer, built in motion sensor c/w fairing
4. Add on Urethane TM54 165kHz transom mount multi beam transducer, built in motion sensor c/w stainless steel bracket

The DFF-3D is an innovative tool for efficient fish location and seabed profile surveying, utilizing new multi beam technology. Highly detailed images are derived from the combination of an advanced signal processing system and an amazingly compact multi beam transducer. Features

• The compact transducer allows easy installation.
• The built-in motion sensor (standard supply) stabilizes the display to give clear and stable images even under rough sea conditions.

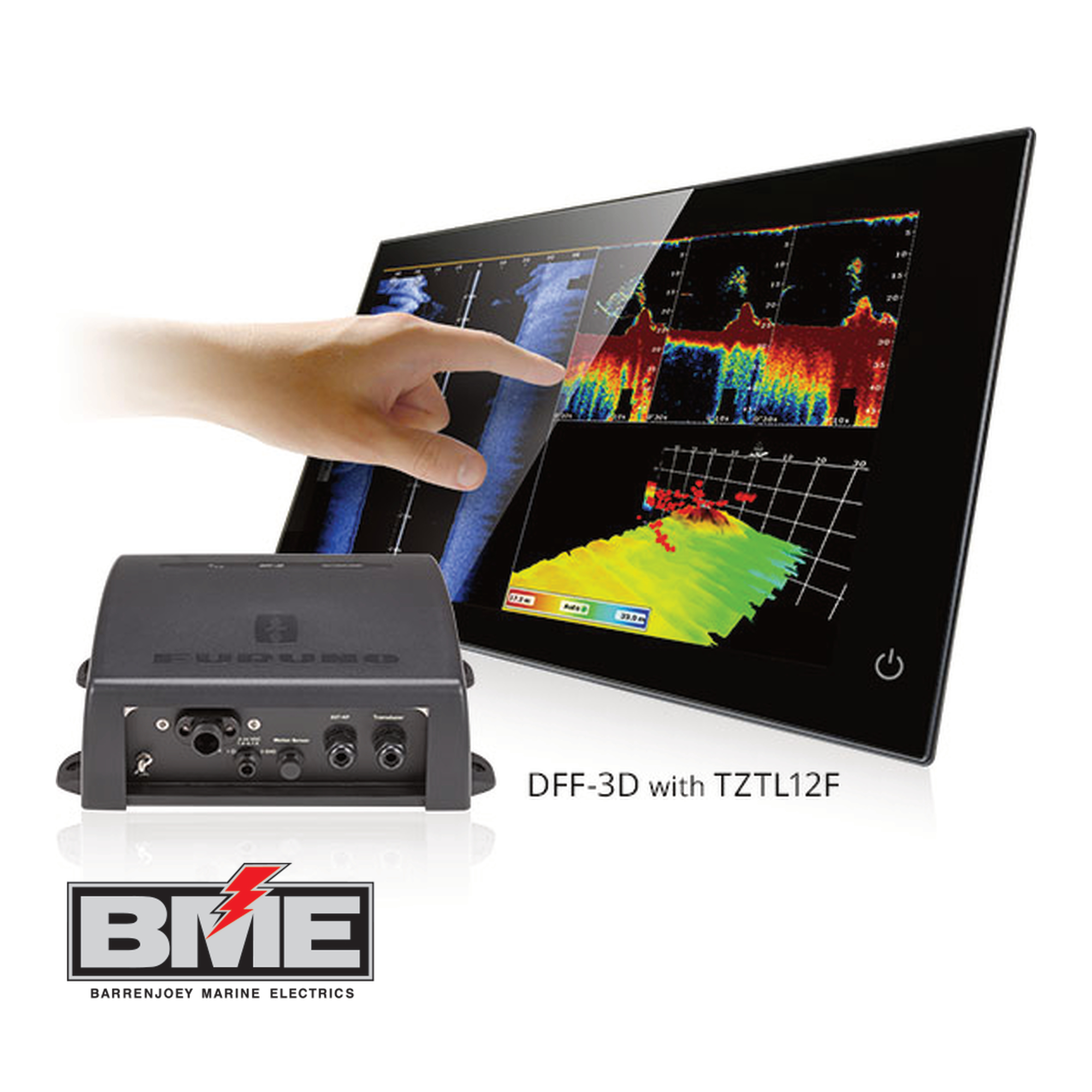

• When paired with TZ (TIMEZERO) Professional software and the optional PBG module, the DFF-3D can generate up to 50 depth points per second to quickly create a highly accurate Personal Bathymetric Generated (PBG) database. The following screenshots show how the PBG database is dynamically created with the DFF-3D, in comparison with conventional Fish Finder models.
