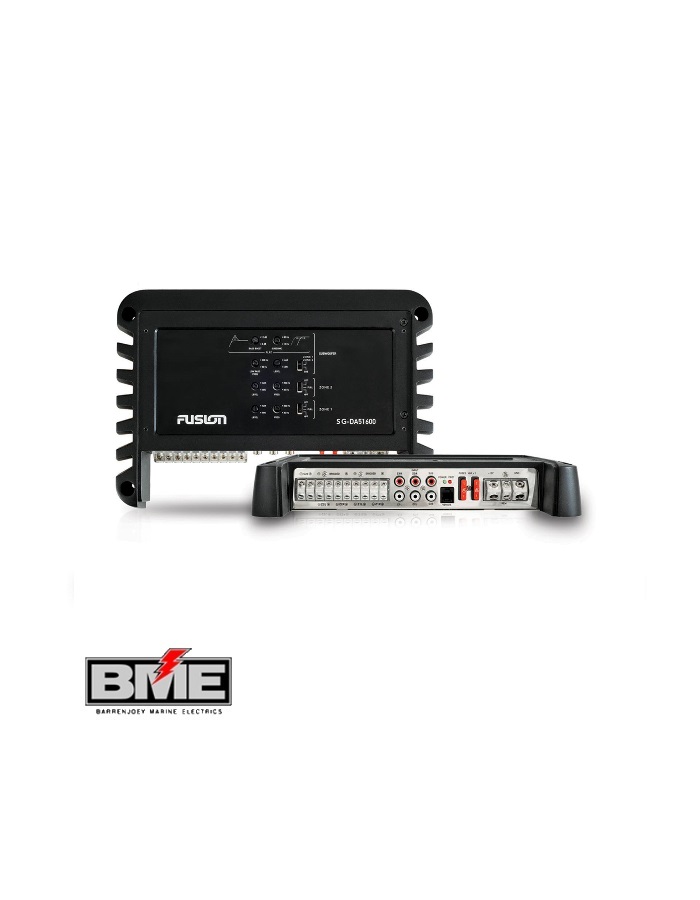

Fusion Signature Series 5 Channel Marine Amplifier The FUSION Signature Series marine amplifiers are purpose-built for the marine environment. Boasting some of the most impressive environmental protection available, they deliver a Signature performance on the water like never before.
Introducing our most efficient, stunning and powerful marine amplifier, the SG-DA51600. Its True-Marine design will resist corrosion, and the incredible 1600 Watt peak power will power 4 speakers and 1 subwoofer with ease.
The SG-DA51600 is FUSION’s first 5 Channel, Class-D Hi-Fi Marine amplifier. The key benefit of a Class-D amplifier is that it has a low battery drain with high output, making this the perfect amplifier for the marine environment. The SG-DA51600 also has conformal coated PCBs for maximum product life and performance, plus the amplifier chassis is a heat sink, to reduce component core temperature and increase efficiency.
Undeniably a stand-out piece, the stunning stainless steel mirror install panel provides practical confinement of all cable connections and tuning controls, with great looks to complement any vessel.
Zone 1 and 2 outputs include four speaker channels plus a subwoofer. RCA line-level inputs allow for easy connection to new or existing systems. Features
- Class-D amplifier – for a high output with low battery drain
- 1600 Watt peak power – easily powers 4 speakers, or 2 speakers with a subwoofer
- Conformal coated PCB – extends product life and performance
- True-Marine design – perfect for the marine environment with a 3 year warranty
Fusion Signature Series 5 Channel Marine Amplifier Specifications
| Amplifier Class | Class-D |
|---|---|
| Frequency Response | 10Hz – 50kHz |
| Peak Power | 1600 Watts |
| Rated Power (4 Ohms) | 80 Watts RMS x 4 @ 14.4V – 4 Ohms 1% THD |
| Rated Power (2 Ohms) | 130 Watts RMS x 4 @ 14.4V – 2 Ohms 1% THD |
| Rated Power (4 Ohms Bridged) | 250 Watts RMS x 2 @ 14.4V – 4 Ohm Bridged 1% THD |
| Height | 50mm [2”] |
|---|---|
| Length | 300mm [11-13/16”] |
| Depth | 210mm [8-1/4”] |
