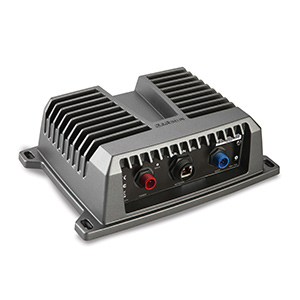

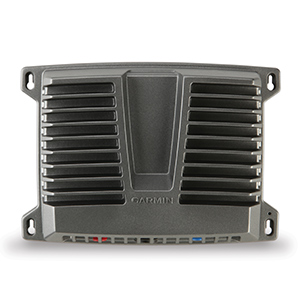

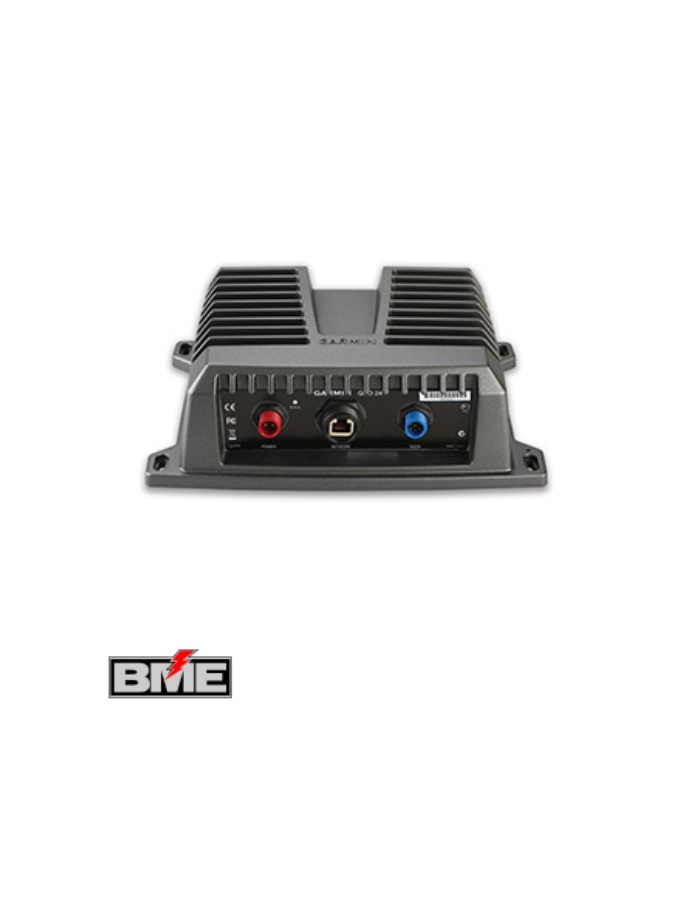

Garmin GSD 24 Advanced Sonar Module The GSD 24 features a vastly improved digital sonar design for superior target definition and deep-water performance.
With up to 2,000 Watts of transmit power and a high-dynamic range receiver, the GSD 24 brings high-definition imaging to your compatible Garmin chartplotter. The system is dual frequency (50/200 kHz) capable and offers selectable transmit power (600 W, 1 kW and 2 kW, depending on transducer) for pin-point accuracy at depths of up to 5,000 ft (1,500 m).
So whether you’re out sportfishing or just keeping an eye on hazardous terrain and reef structures beneath your boat, you’ll see a clearer picture with enhanced separation of images and deeper bottom detection. Watch Promotional Video
Garmin GSD 24 Advanced Sonar Module Specifications
| Case material | Fully gasketed, aluminum and steel housing |
|---|---|
| Physical dimensions | 8″”×11.2″”×3.2″” (204 mm × 284 mm × 81 mm) |
| Weight | 5.27 lbs (2.39 kg) |
| Water rating | IPX7 |
| Garmin Marine Network™ ports | 1 |
| Temperature range | From 5°F to 158°F (from -15°C to 70°C) |
| Frequencies supported | 50/200 kHz |
|---|---|
| Transmit power | 25-2,000 W rms |
| ClearVü | No |
| SideVü | No |
| Maximum depth | 5,000 ft. (1,524 m) |
| Power input | 10-35 V |
|---|---|
| Power usage | 40 W maximum |
| Fuse | 7.5 A |
| Compass-safe distance | 15.75 in. (40 cm) |
