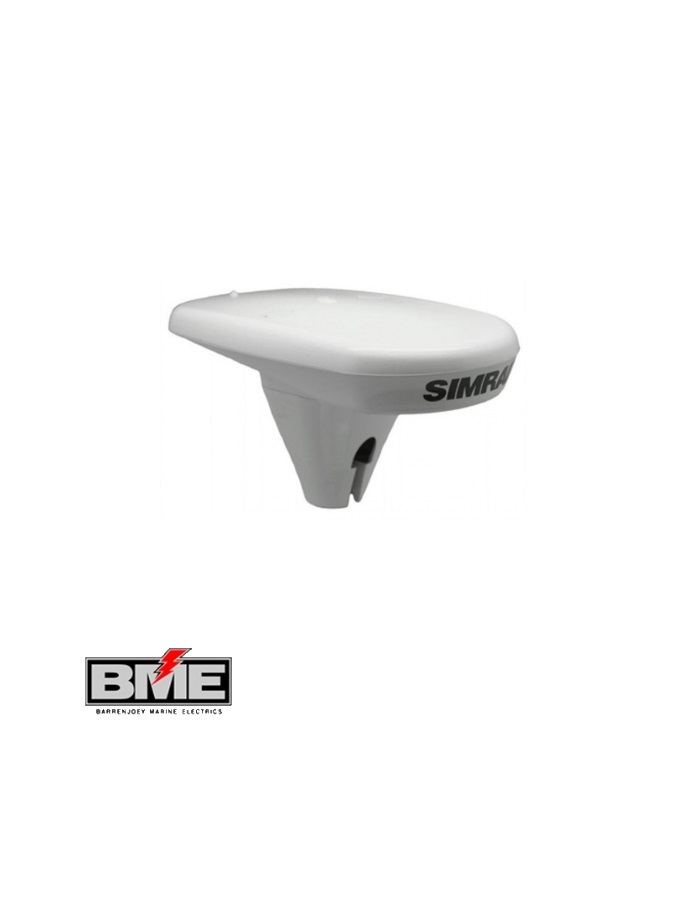

Simrad HS70 Compass

$3,582.89

The Simrad HS70 brings a series of new features to a traditional heading sensor including heave, rate of turn, pitch and roll output.

Clear
Description

The HS70 uses SBAS (WAAS, EGNOS, MSAS, etc.) for differential GPS positioning providing a low cost, yet highly effective heading and position based smart antenna. The HS70 delivers extremely time-to-first-fix, and excellent in-band and out-of-band interference rejection.

Features

  • Provides heading, positioning, heave, rate of turn, roll and pitch
  • SimNet, NMEA2000 or NMEA0183 communication
  • 0.75 degree heading accuracy in amazingly small form factor
  • Differential positioning accuracy of 1.0 m, 95% of the time
  • SBAS compatible (WAAS, EGNOS, MSAS, etc.)
  • COAST technology (with integrated gyro and tilt sensors) maintains differentially-corrected positioning for 40 minutes after loss of differential signal.

Simrad HS70 Compass Specifications


  • Operating Temperature: -30°C to + 70°C (-22°F to + 158°F)
  • Operating Temperature Store: -40°C to + 85°C (-40°F to + 185°F)
  • Humidity Range [rh]: 100% non-condensing
  • Power Consumption: 3 W nominal
  • Power Supply (Supply Voltage): 6 to 36 VDC vDC
  • Grounding: Isolated to enclosure
  • Baud Rates: 4800 – 115200
  • Correction I/O Protocol: RTCM SC-104
  • Data I/O Protocol: NMEA 0183, Crescent binary3, CAN
  • Serial Ports: 2 full-duplex RS-232
