Simrad IS42 Colour Instrument Display


The IS42 is a smart multi-purpose instrument featuring a full colour display and modern glass helm styling

SKU: 000-13285-001 Categories: , Tags: , Brand:

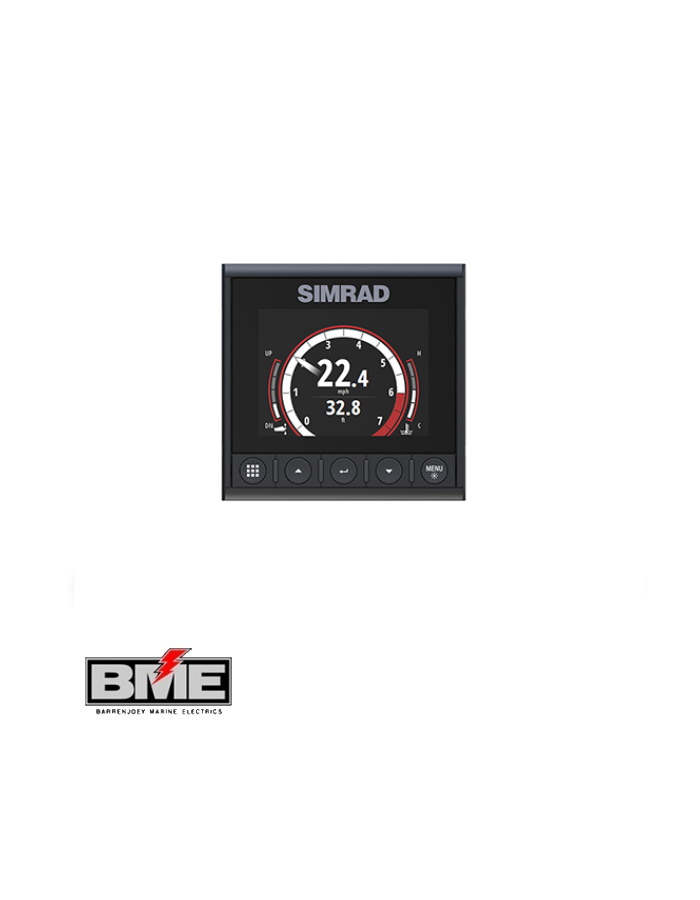

View wind, speed, depth, engine data, autopilot status, AIS data and more at a glance, or add the optional OP12 keypad to take full control of your Simrad autopilot system. The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels.


  • Optically bonded 4.1-inch colour display
  • Ultra wide 170-degree viewing angle
  • Multi-purpose digital instrument

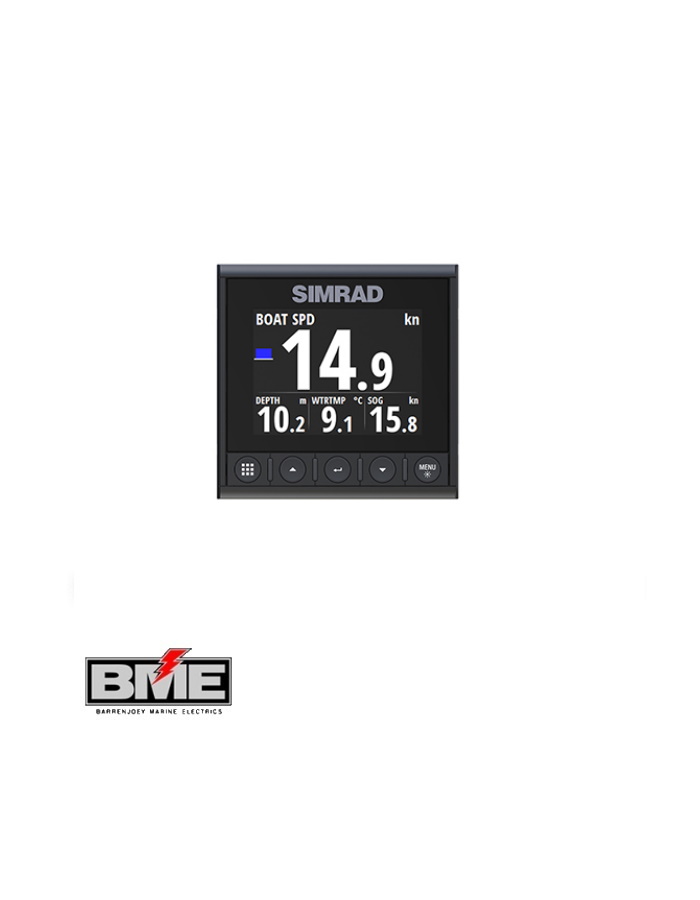

  • Display wind, speed, depth, engine data, autopilot status and more

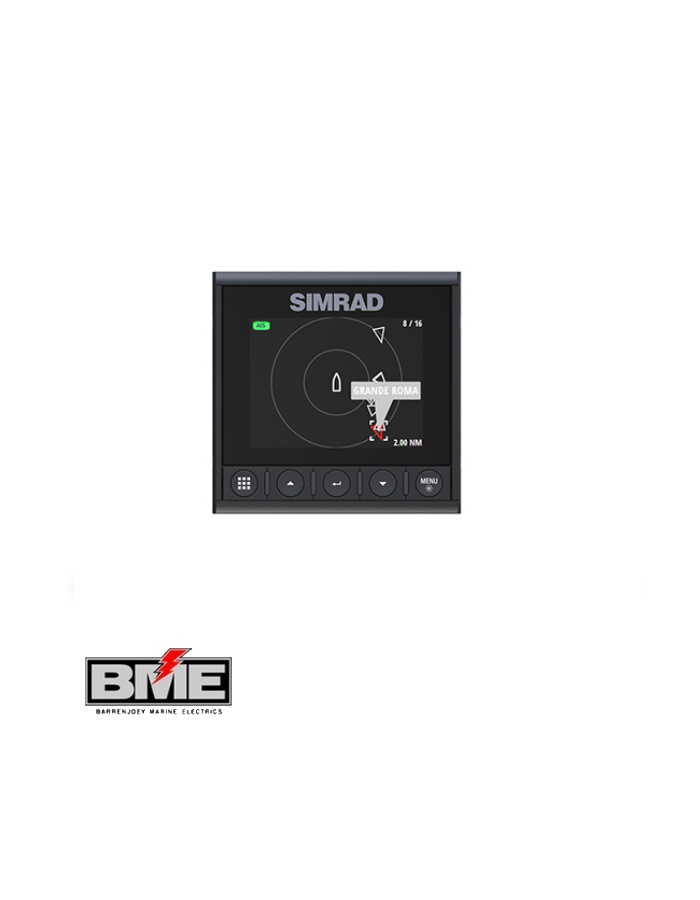

  • Advanced AIS functionality including the ability to initiate radio calls to AIS-equipped vessels (additional hardware required)
  • Intuitive operation with waterproof silicon keys
  • Easy installation with front-mount option and just one cable
  • Add an OP12 keypad for full Simrad autopilot control
  • Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
  • Low-profile glass helm design
  • Low power consumption
  • Certified NMEA 2000 connectivity

Simrad IS42 Colour Instrument Display Specifications

  • Display Resolution: 320 x 240 (H x W)
  • Display Type: LED-backlit optically bonded full-colour transflective TFT-LCD
  • Display Size: 104 mm / 4.1 in
  • Other Features Display Viewing Angle: 170 degrees
  • Operating Temperature: -25°C to 65°C / -13°F to 149°F
  • Operating Temperature Stored: -40°C to 85°C / -40°F to 185°F
  • Water Resistance: IPX7
  • Product Width: 118 mm / 4.64 in
  • Product Depth: 36.5 mm / 1.43 in
  • Product Height: 115 mm / 4.52 in
  • Product Weight: 0.32 kg / 0.7 lb
  • Power Consumption: 2.2 W (maximum)
  • Power Supply (Supply Voltage): NMEA 2000
  • NMEA 2000 Load Equivalency Number: 4 network loads
