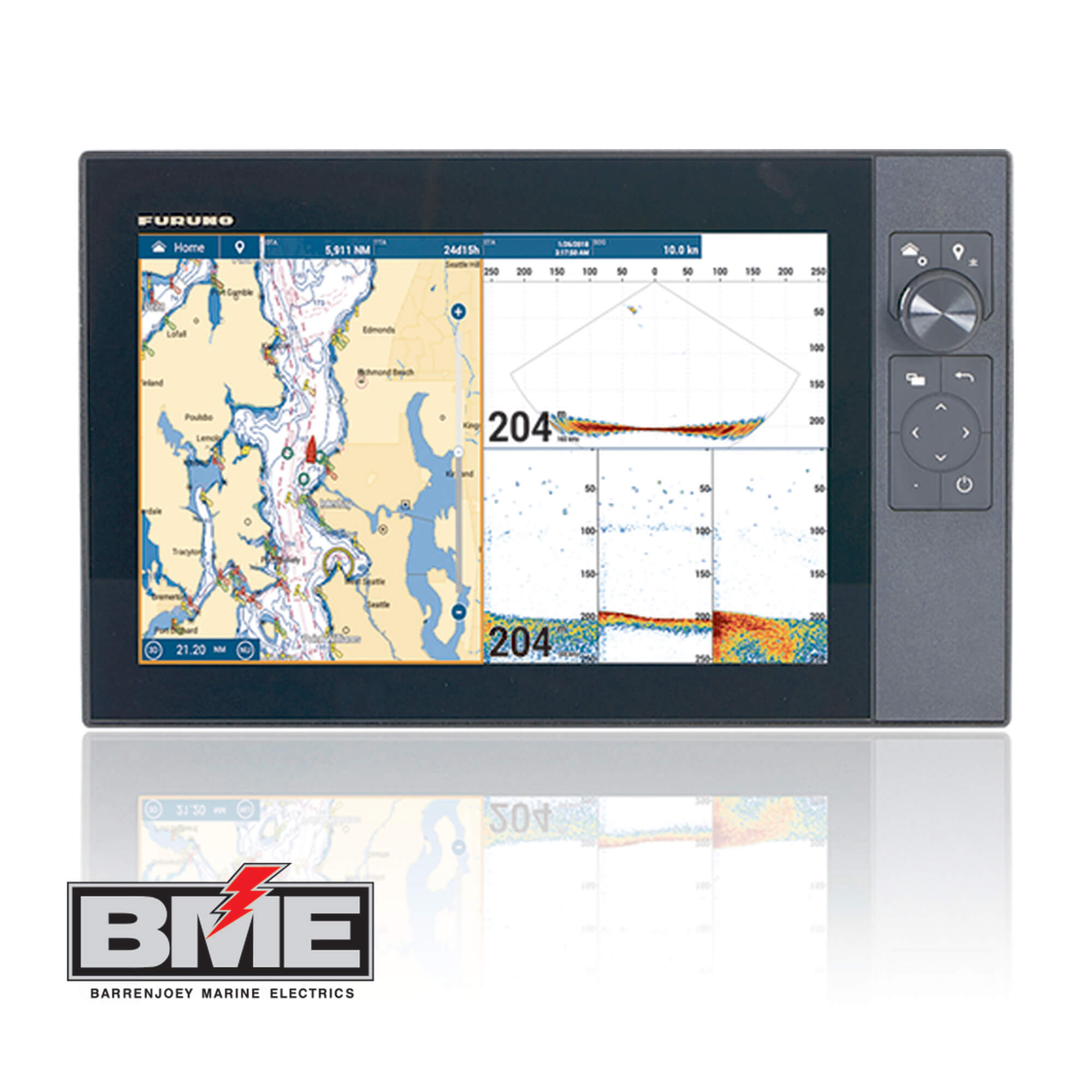

NavNet TZtouch3 Chart Plotter/Fish Finder – TZT3 1kW Dual Channel TruEcho CHIRP™, 12″ Hybrid Control IPS Display
PART ID: IMD034990AB
Features
- More powerful quad-core processor for lightning-fast response
- Built-in Dual Channel 1kW TruEcho CHIRPTM & CW Fish Finder
- High-power 2/3/5kW* TruEcho CHIRPTM Fish Finder network amp
- Power-packed 100W & 200W NXT Solid-State Doppler Radars
- Deep water Multi-Beam Sonar for up to 300m depth & 200m side scan

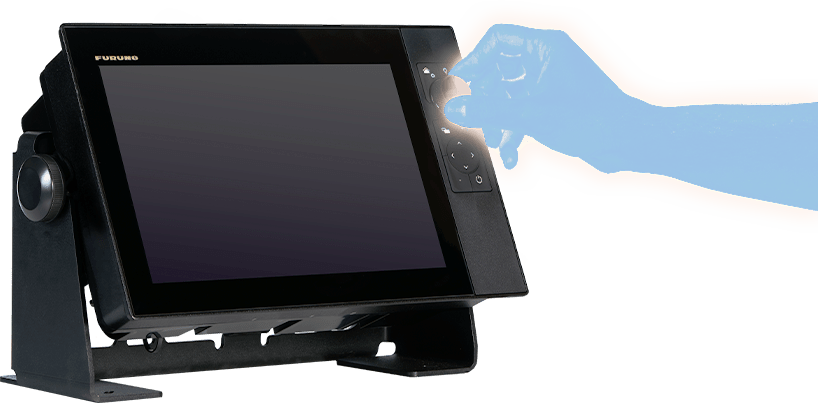

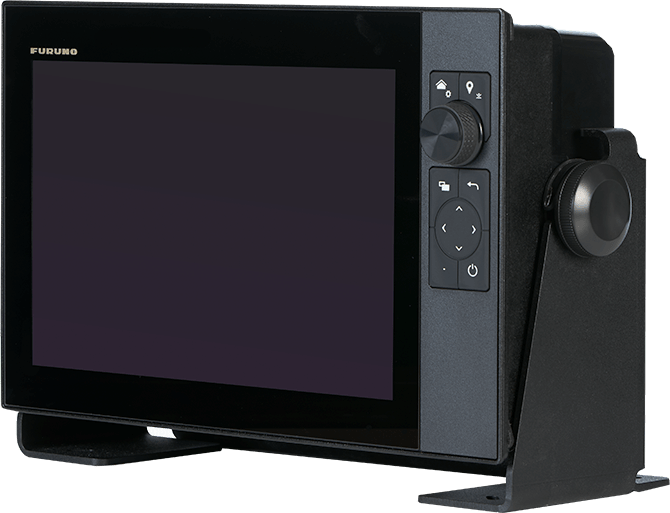

- Hybrid 12” display with RotoKeyTM and buttons for added accessibility with upgrade options of: Large 19” and 16” multi-touch IPS display for maximum brightness.
- Pin Code Lock – require a password to access your TZtouch3 upon startup
Suggested Accessories
NavNet TZtouch3 Specifications
| MODEL: TZT12F | MODEL: TZT16F | MODEL: TZT19F | |
|---|---|---|---|
| DISPLAY UNIT | |||
| Type | Color TFT multi touch In-Plane Switching (IPS) LCD | ||

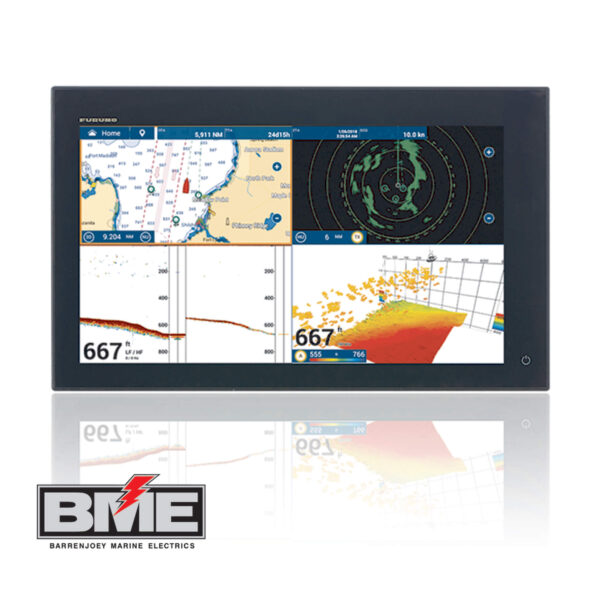

| Screen Size | 12.1″ Wide | 15.6″ Wide | 18.5″ Wide |
| Screen Resolution | WXGA 1280 x 800 | FHD 1920 x 1080 | FHD 1920 x 1080 |
| Screen Brightness | 900 cd/m2 (typical) | 1000 cd/m2 (typical) | 900 cd/m2 (typical) |
| Display Colors | 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder) | ||
| Language | Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French,German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish | ||
| GPS/WAAS | |||
| Receiver Type | GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS) | ||
| Receiving Frequency | L1 (1575.42 MHz) | ||
| Time to First Fix | 100 s (cold start) | ||
| Accuracy | 10 m (GPS), 7 m (MSAS), 3 m (WAAS) | ||
| Position Update Interval | 0.1 s | ||
| CHART PLOTTER | |||
| Cartography | MapMedia mm3d chart (C-MAP/Navionics/NOAA) | ||
| Memory Capacity | 30,000 user points, 30,000 points for ship’s tracks, 200 planned routes (500 points per route) | ||
| Alarms | Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*external data required) | ||
| RADAR | |||
| Display Modes | Head-up*, North-up *Heading input required. | ||
| Echo Trail | Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous | ||
| Target Tracking | 30 ARPA Targets | ||
| Radar Alarms | Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line | ||
| FISH FINDER | |||
| Transmit Frequency | CW: 50/200 kHz CHIRP: 40 kHz to 225 kHz | ||
| Transducer | 300/600 W or 1 kW* *Matching box MB1100 required for some FURUNO transducers. | ||
| Display Range | 2-1, 200 m, shift: 0-1200 m | ||
| Extension Mode | ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), RezBoost™, Bottom Discrimination, TruEcho CHIRP™ | ||
| Picture Advance | 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop | ||
| Fish Finder Alarms (option) | School of fish, School of fish for bottom lock | ||
| INTERFACE | |||
| CAN bus/NMEA2000 | 1 Port | ||
| Input | 065280, 126992/126993/126996, 127237/127245/127251/127257/127488/127489/125505, 128259/128267, 129025/129026/129029/129330/129038/129039/129040/129041/129291/129538/129540, 129793/129794/129798/129801/129802/129808/129809/129810, 130306/130310/130311/130312/130313/130314/130316/130577/130578, 130817/130818/130820/130822/130823/130826/130827/130828/130880 | ||
| Output | 126992/126993/126996, 127250/127251/127257/127258, 128259/128267/128275, 129025/129026/129029/129033/129283/129284/129285, 130306/130310/130311/130312/130313/130314/130316 | ||
| NMEA0183 | 1 Serial Output Port | ||
| Output | AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TTM, VDM, VTG, WPL, XTE, ZDA | ||
| LAN | 2 Ports (100 BASE-TX) | ||
| USB | 1 Port (USB2.0) for touch monitor and control unit: | 1 Port (USB2.0) for touch monitor and control unit: 1 Port USB | |
| Video I/O | Input: 2 Ports (NTSC/PAL) Output: 1 Port (HDMI 720p) |
Input: 2 ports (NTSC/PAL) and 1 port HDMI 1920 x 1080p or less (progressive only) Output: 1 port(HDMI 1080p) |
|
| AUX I/O | 2 Ports (Event Switch and External Power Switch) and 1 Port Buzzer Output | ||
| SD Card Slot | 1 Micro SD Card Slot (Micro SDXC, rear), 2 Slots Card Unit: Model SDU-001 (option) | ||
| Wireless LAN | IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11 dBm max | ||
| Transducer | 1 Port | ||
| ENVIRONMENT | |||
| Temperature (IEC60945) | -15°C to +55°C | ||
| Relative Humidity | 93% or less at +40°C | ||
| Waterproofing | IP56 | ||
| POWER | |||
| 12-24 VDC | |||
| 2.3 – 1.2 A | 4.3 – 2.2 A | 4.7 – 2.3 A | |
