Furuno TZT2 Black Box Multi Function Processor
TZT2BB Black Box Multi Function Processor 12-24vDC FHD 1920×1080
PART ID: IMD03460000
Features“]

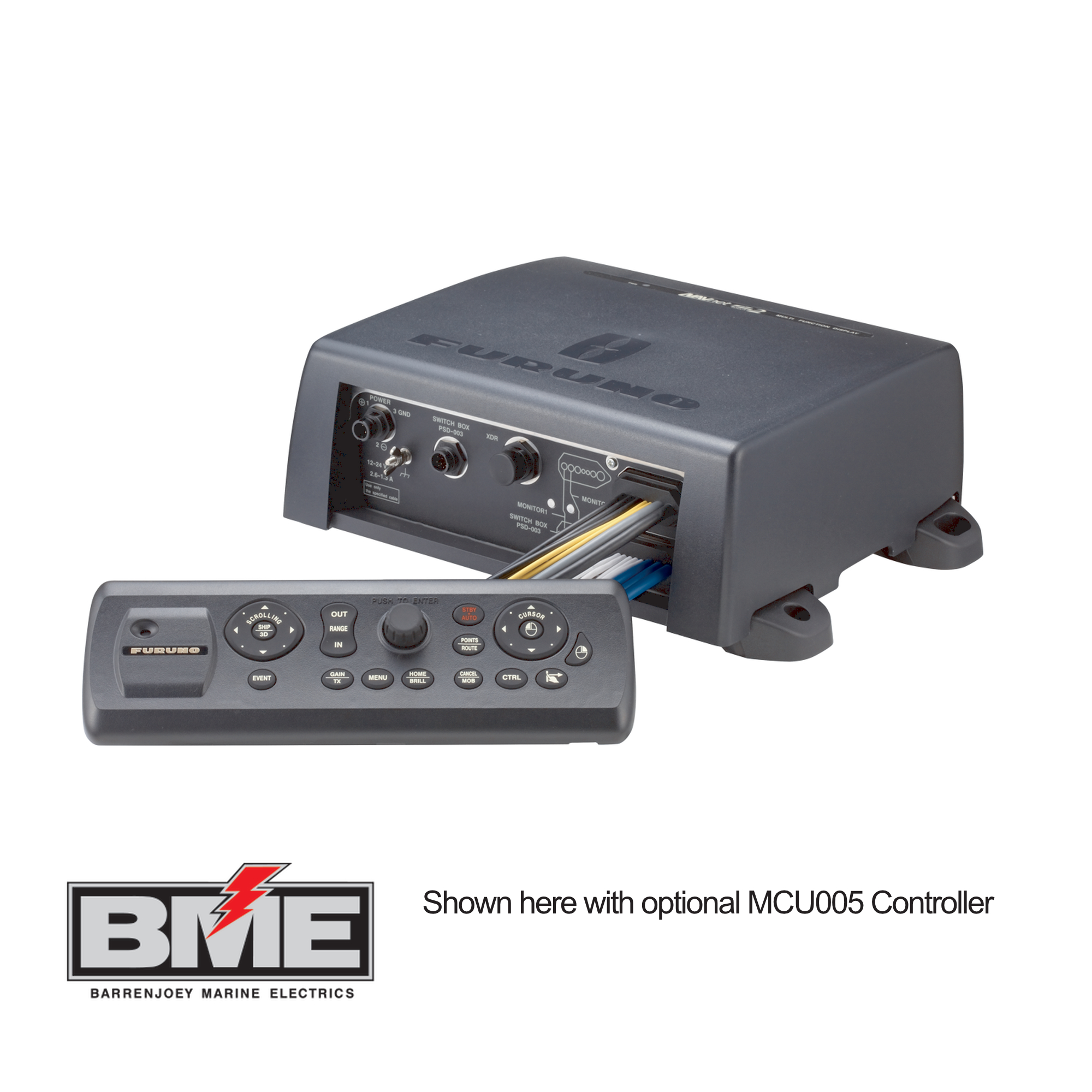

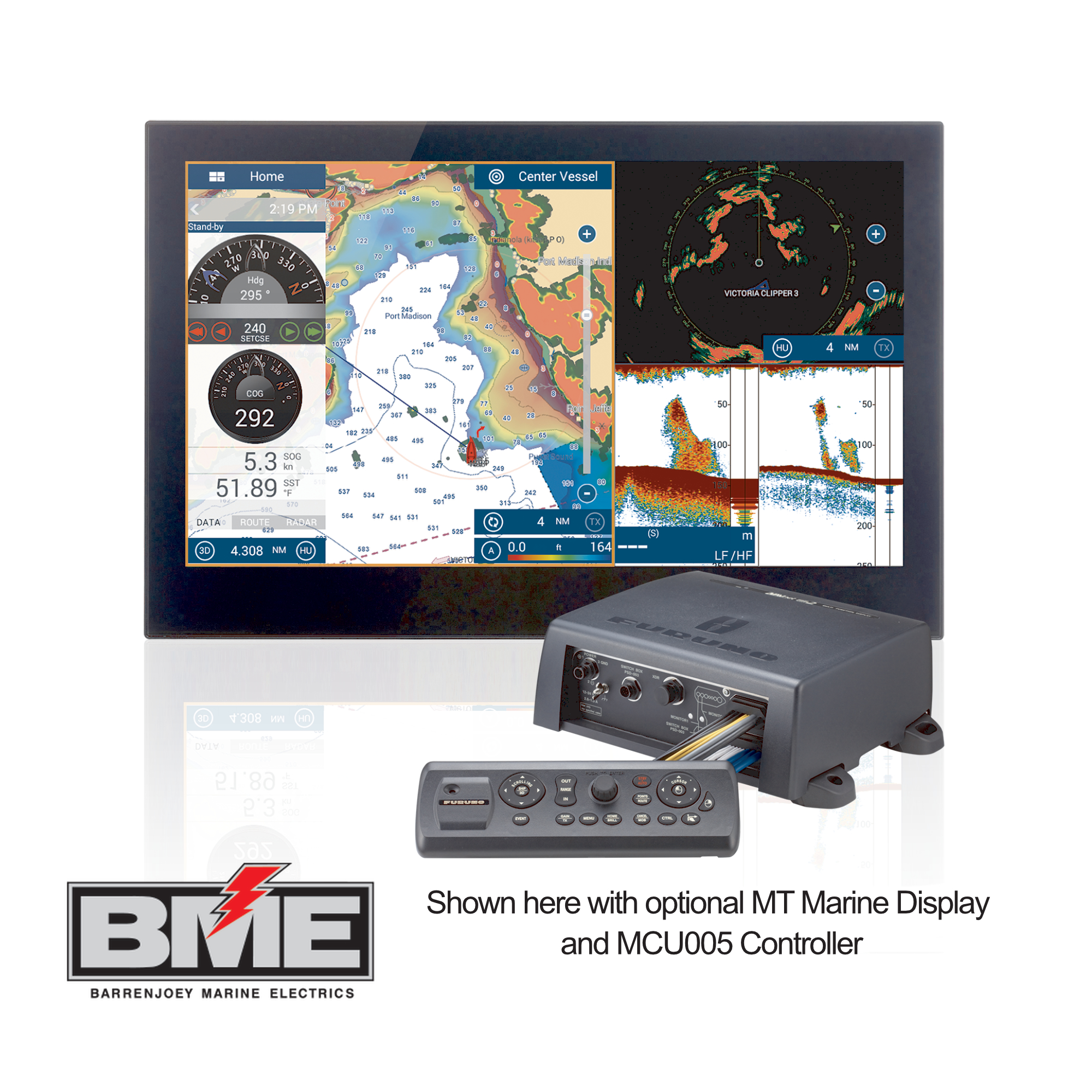

*TZT2BB shown with optional monitors and MCU005 controller
- Data Type NMEA2000
- Display Size Black Box
- Display Type Black Box
- Frequency 50 and 200 kHz
- Power Usage 12-24 VDC
Furuno TZT2 Black Box Multi Function Processor Specifications

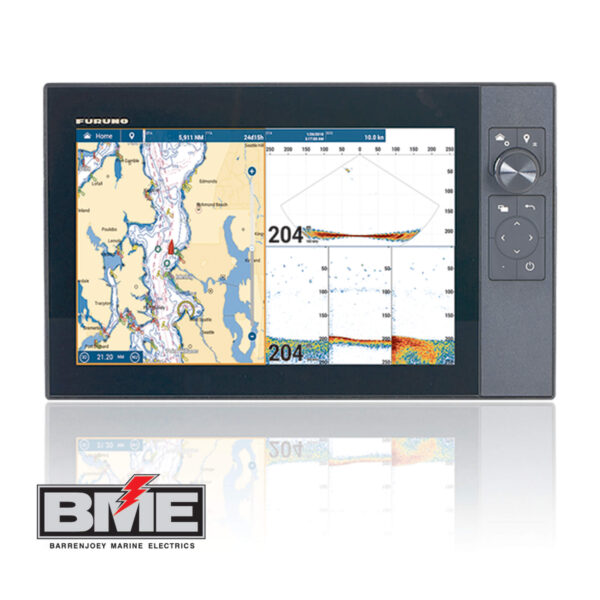

| MULTI FUNCTION DISPLAY | TZTL12F | TZTL15F | TZT2BB NEW | |
|---|---|---|---|---|
| DISPLAY UNIT | ||||
| Type | Color TFT multi touch LCD | Color LCD with touch panel control *Display from local supply. |
||
| Screen Size | 12.1″ Wide | 15.6″ Wide | – | |
| Screen Resolution | WXGA 1280 x 800 | FWXGA 1366 x 768 | FHD 1920 x 1080 recommended, XGA 1024 x 768/SXGA 1280 x 1024 available | |
| Screen Brightness | 1300 cd/m² (typical) | 1000 cd/m² (typical) | – | |
| Language | Chinese (simplified Chinese characters), Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish | |||
| Signal Interface | – | – | Picture: HDMI, Extended, HDCP Touch panel: USB2.0, Windows® 7 multi-touch |
|
| GPS/WAAS (Built-in) | ||||
| Receiver Type | GPS | 56 channels | – | |
| SBAS | 1 channel (C/A mode, WAAS) | – | ||
| Receiving Frequency | L1 (1575.42 MHz) | – | ||
| Time to First FIX | 100 s (cold start) | – | ||
| Tracking Velocity | 999 kn | – | ||
| SBAS | WAAS, EGNOS, MSAS | – | ||
| Accuracy (Internal Antenna) |
GPS | 10 m Max | – | |
| WAAS | 3 m Max | – | ||
| MSAS | 7 m Max | – | ||
| CHART PLOTTER | ||||
| Cartography | MapMedia mm3d chart (C-MAP/Navionics/NOAA) | |||
| Memory Capacity | 30,000 user points, 30,000 points for ship’s tracks, 200 planned routes (500 points per route) | |||
| Alarms | Anchor Watch, XTE, Proximity, Depth, Temperature, Speed, etc. | |||
| RADAR | ||||
| Display Modes | Head-up, North-up* *Heading input required. |
|||
| Target Tracking** | 30 Targets* *Heading input required. |
|||
| FISH FINDER (Built-in) | ||||
| Transmit Frequency | 50/200 kHz | |||
| Transmission Power | 600 W or 1 kW* *Matching Box MB-1100 required for some specific FURUNO transducers |
|||
| Modes | RezBoost™, ACCU-FISH™, Bottom Discrimination, A-Scope, Auto (Fishing/Cruising/Manual), Bottom Zoom, Bottom Lock | |||
| INTERFACE | ||||
| CAN bus / NMEA2000 | 1 Port | |||
| PGN | Input | 065280, 126992, 126993, 126996, 127237, 127245, 127250, 127251, 127257, 127488, 127489, 127505, 128259, 128267, 129025, 129026, 129029, 129033, 129038, 129039, 129040, 129041, 129291, 129538, 129540, 129793, 129794, 129798, 129801, 129802, 129808, 129809, 129810, 130306, 130310, 130311, 130312, 130313, 130314, 130316, 130577, 130578, 130817, 130818, 130820, 130822, 130823, 130826, 130827, 130828, 130880 | ||
| Output | 126992, 126993, 126996, 127250, 127251, 127257, 127258, 128259, 128267, 128275, 129025, 129026, 129029, 129033, 129283, 129284, 129285, 130306, 130310, 130312, 130313, 130314, 130316 | |||
| NMEA0183 | 1 Integrated Output Port | |||
| Sentences | Output | AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TLL, TTM, VTG, WPL, XTE, ZDA | ||
| LAN | 1 Port (100 BASE-TX) | 3 Ports (100 BASE-TX) | ||
| USB | 1 Port (USB2.0) | 5 Ports (USB2.0): Type A 4 Ports, microB 1 Port | ||
| HDMI I/O | – | Input: 1 Port | ||
| HDMI OUT | １Port (HDMI) 1280 x 720 |
2 Ports (FHD 1920 x 1080, SXGA 1280 x 1024, XGA 1024 x 768) Extended |
||
| Video Input | 2 Ports (NTSC/PAL) | |||
| AUX I/O | 1 Port (External Event/MOB Input/Operator Fitness/Alarm Output) | 1 Port (External Event/MOB Input/Power Switch/Alarm Output) | ||
| SD Card Slot | 1 Slot (Micro SDXC, rear), 2 Slots Card Unit: SDU-001 (optional) | 2 Slots (SDXC, PSD-003) | ||
| Wireless LAN | IEEE802.11b/g/n, Transmit frequency: 2.4 GHz band | |||
| Transducer | 1 Port | |||
| ENVIRONMENT | ||||
| Temperature (IEC60945) | -15°C to +55°C | |||
| Waterproofing | IP56 | Processor Unit: IP22 Switch Box: IP56 (front), IPX2 (chassis) |
||
| POWER | ||||
| 12-24 VDC | ||||
| 3.0-1.5 A | 3.6-1.8 A | 2.6-1.3 A | ||
