Raymarine Axiom XL Glass Bridge Multifunction Display

$9,495.25$18,995.25

Designed for glass bridge installations, Axiom XL displays offer superior performance, large format visibility and elegant simplicity.

Clear
SKU: N/A Categories: , Tags: ,
Description

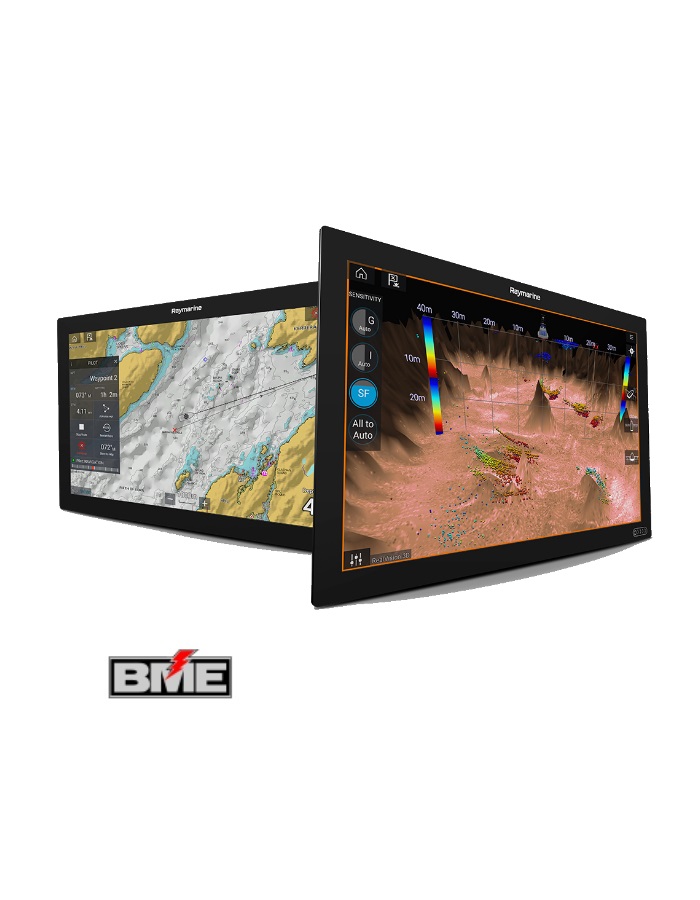

Raymarine Axiom XL Glass Bridge Multifunction Display

The Axiom XL range is the pinnacle of Raymarine navigation and modern helm integration.

Designed for glass bridge installations, Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge MFDS can be installed in both open cockpits and enclosed bridge stations.

Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun.

Flagship Performance
At the heart of each Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience.

Superior Integration
A powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays.

Available in 16, 19, 22 and 24-inch display sizes, Axiom XL’s edge-to-edge glass construction gives vessel designers the ability to create integrated and elegant navigation helm appearance.

Features

  • Smart and Rugged All-Glass Display is optimized for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control.
  • Access Axiom Everywhere using Axiom XL’s HDMI video output.
  • Elevate Awareness with Quantum 2 CHIRP radar and Doppler target tracking, the easier way to keep a watchful eye on potentially dangerous targets.
  • Keep Watch on the crew or engine room with marine video cameras. Connect both analog and video over IP to view 4 simultaneous video streams.

Raymarine Axiom XL Glass Bridge Multifunction Display Specifications

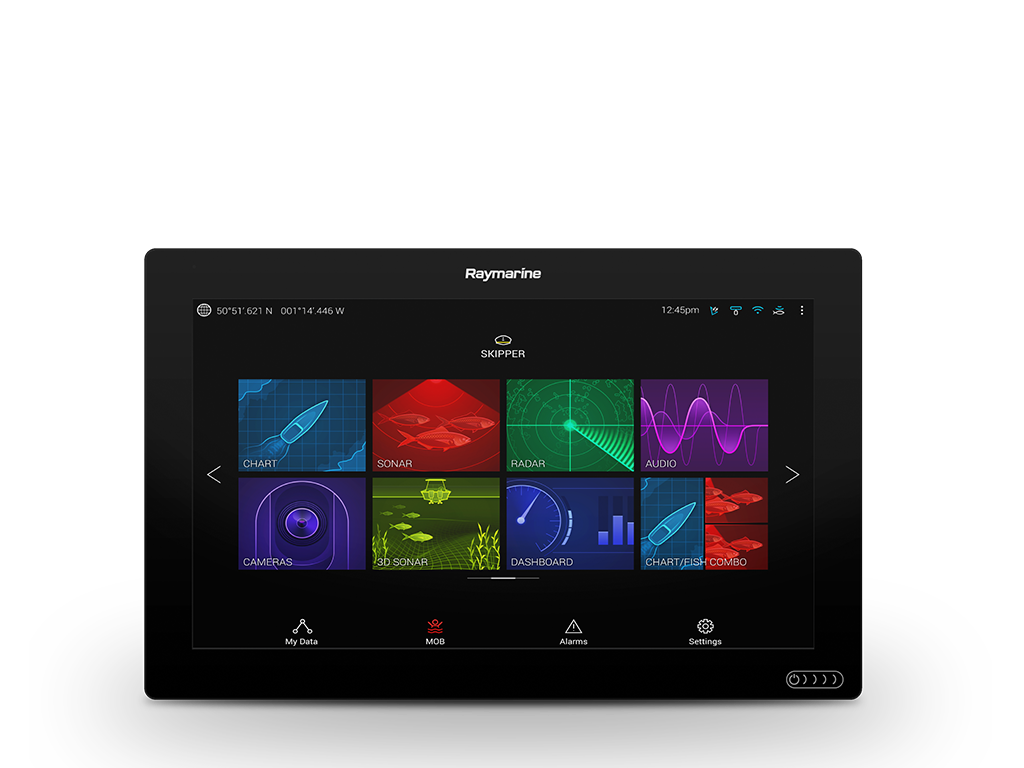

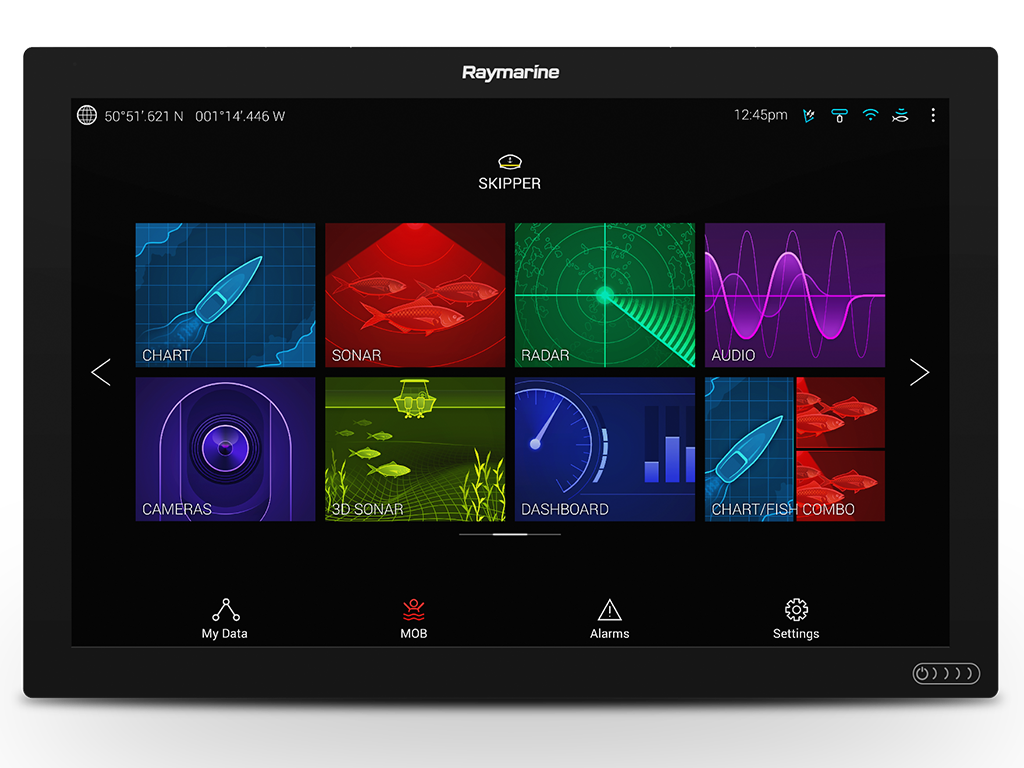

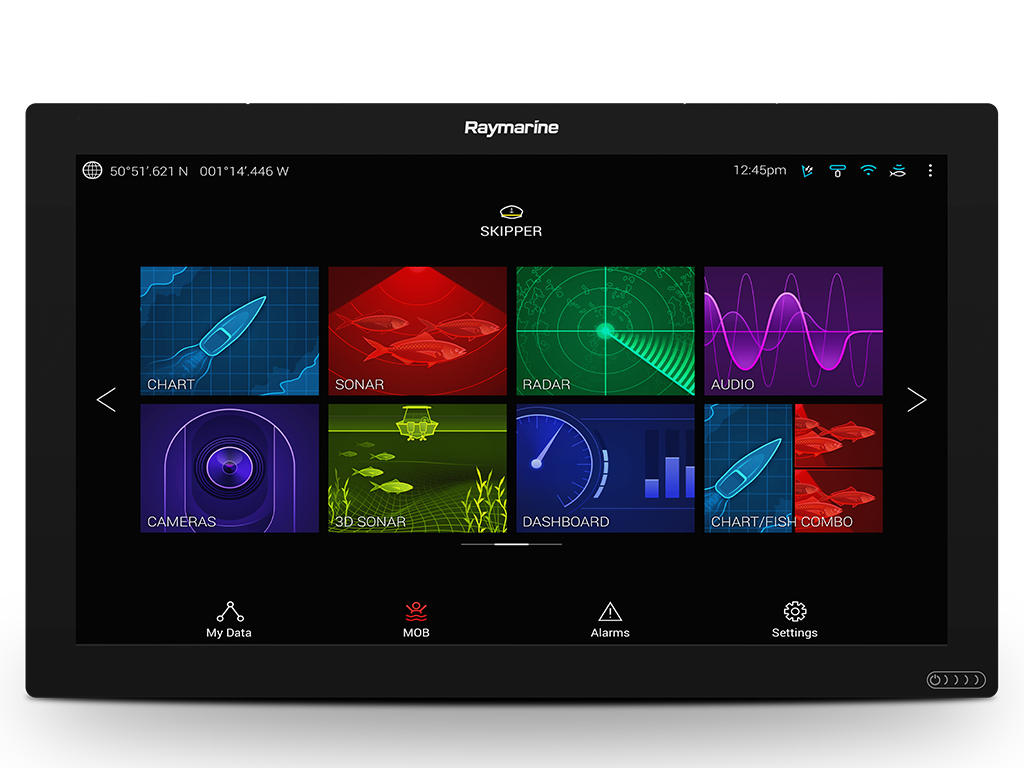

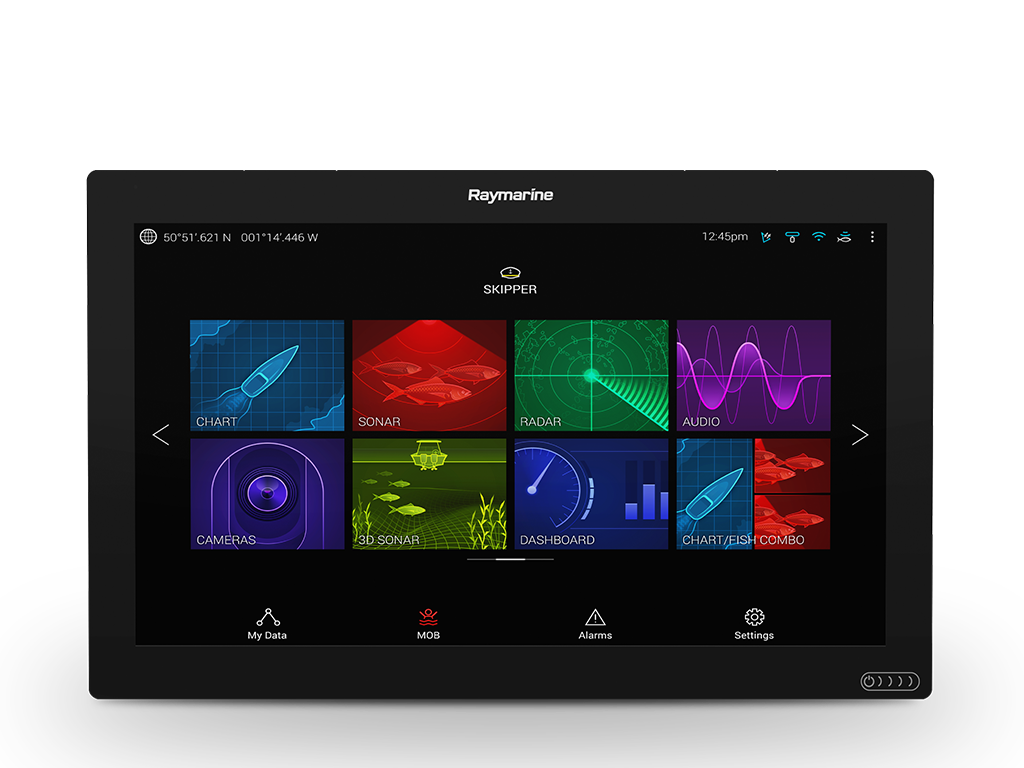

MODEL Axiom XL 16″ Axiom XL 19″ Axiom XL 22″ Axiom XL 24″
Display Size 15.6″ 18.5″ 21.5″ 24.0″
Display Type IPS (In-Plane Switching)
Color Depth 24 bit
Display Resolution 1920 x 1080 FHD 1920 x 1200 WUXGA
Display Aspect Ratio 16:9 16:10
Viewing Angle Top 88’ / Bottom 88’ / Left 88’ / Right 88’ Top 89’ / Bottom 89’ / Left 89’ / Right 89’
Number of simultaneous touches 2
Nominal supply voltage 12 / 24 Vdc
Operating voltage range 8 Vdc to 32 Vdc
Fuse Requirements Inline fuse = 15Amp, or Thermal breaker = 15Amp
Max. Power 60W 72W 84W 96W
Operating Temperature Range -25°C to + 55°C
Storage temperature range -30°C to +70°C
Humidity Up to 93% @40°C
Water Ingress Protection IPx6 and IPx7
Overall Dimensions
W x D x H (mm)
395 x 78 x 249 462 x 77 x 290 534 x 75 x 326 579 x 74 x 387
Product Weight (Kg) 5.9 7.9 9.9 11.3
