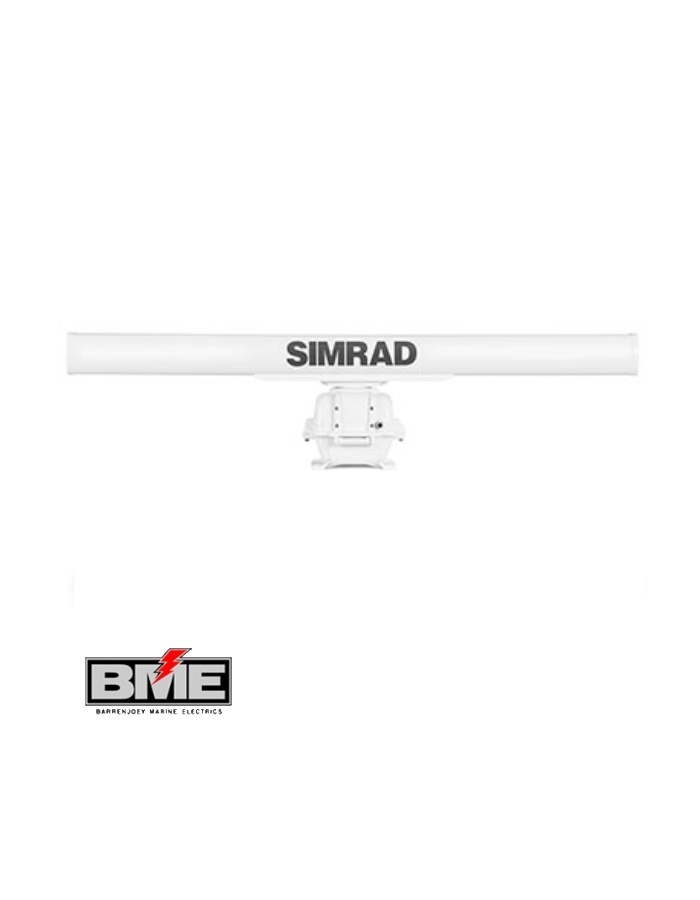

Simrad HD Digital Radar TXL 10S 6


The Simrad TXL-10S-6 HD Digital Radar employs a 10kW transceiver and high-performance 6-foot open array scanner with 1.2° beam resolution to deliver an instrumented range of 72 nautical miles.

SKU: TXL-10S-6 Categories: , Tags: , , , Brand:

Suitable for a range of non-SOLAS applications, this commercial-grade radar is designed to withstand sustained wind loads up to 100 knots, and features a long-life magnetron and brushless motor for maximum service life.


  • 6-foot open-array antenna
  • 72nm instrumented range with 1.2° beam resolution
  • Meets IMO IEC62388 Annex D target detection specifications
  • Triggers RACONs and SARTs at 5nm range
  • Automatic Tune, Gain, and Sea Clutter adjustments in Harbour and Offshore Modes
  • Dual EBL/VRM, Dual Guard Zones
  • TrueColor display for improved target distinction
  • Radar overlay on charts (requires heading sensor)
  • 10-target MARPA tracking (requires heading sensor)
  • Ethernet connectivity, compatible with all Simrad NSE/NSS/NSO multifunction displays

Simrad HD Digital Radar TXL 10S 6 Specifications

  • Humidity Range [rh]: +40°C, 93% RH
  • Other Features: Automatic Harbour & Offshore modes, Chart Overlay, 10-target MARPA, Dual EBL/VRM, Dual Guard Zones, Low Radiation, Brushless motor
  • Operating Temperature: -25° to +55°C
  • Water Resistance: IPX6
  • Product Width: 1910/ 6.3’
  • Product Height: 458mm / 1’6″
  • Product Weight: 36kg / 79lb ±10%
