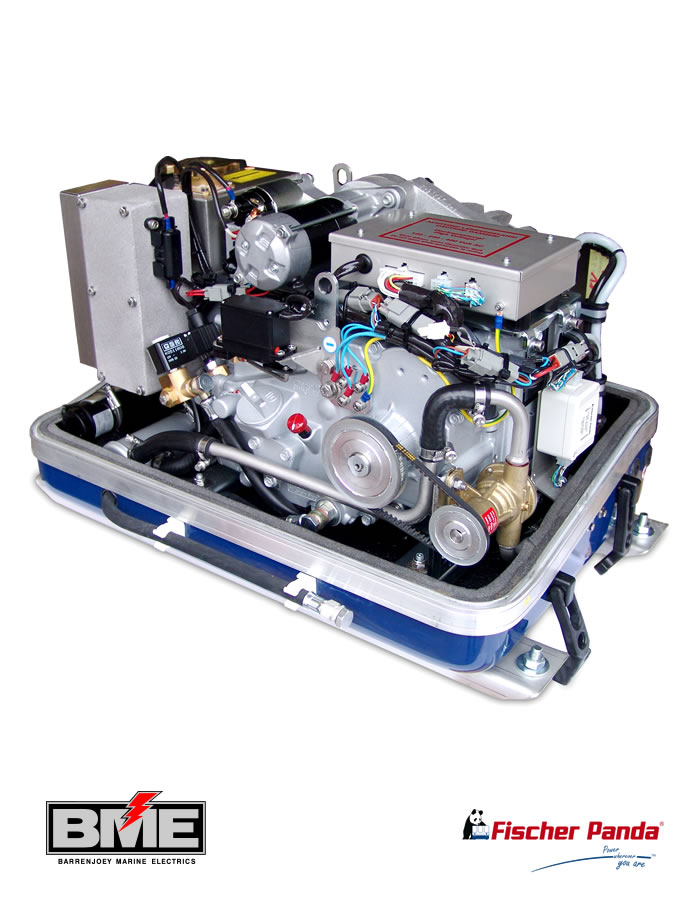

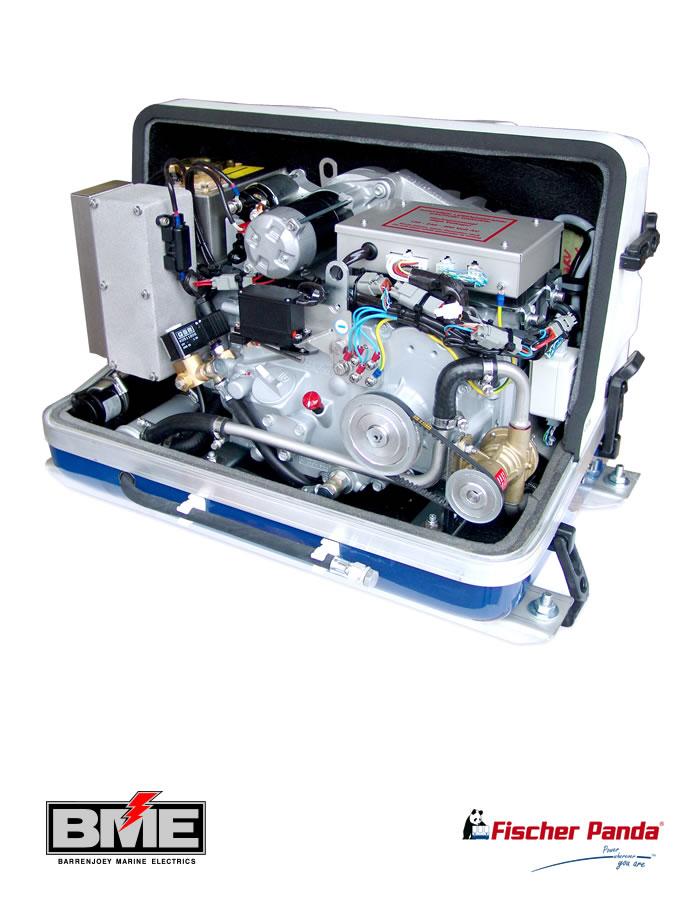

Fischer Panda 5000I PMS 230V 50Hz 5kVA Marine Generator

Fischer Panda 5000I PMS 230V 50Hz 5kVA Marine Generator

Engin Data

Engine Manufacturer: Kubota (KU) Engine Type: EA300 No. Cylinders: 1 Displacement [cm3]: 309 Starter System: 12V (24V Optional) Fischer Panda PMS Features

• Suitable for internal installation
• Low ambient temperatures
• External control panel with cable
• Dual circuit cooling

Single Phase Version with Inverter Technology

Frequency [Hz]: 50 Generator manufacturer: Fischer Panda GmbH Isolation class of windings: H Nominal Speed [rpm]: 2200-2800 rpm Voltage Regulation: iControl Voltage Tolerance: ±3% Power rating factor Cos Pi: 0.80 Nominal Voltage in Volt: 230 Nominal Performance in kW)1): 0-4.00 Nominal Performance in kVA1): 0-5.0 Continuous Performance in kW1): 0-3.6 Continuous Performance in kVA1): 0-4.5 Number of Phases: 1 Max. Rated Inrush Current in Ampere: 75A

Fischer Panda 5000I PMS 230V 50Hz 5kVA Marine Generator Specifications

---

Technical Data

• Panda i-Series (50 Hz)
• Digital display
• Environmentally friendly – low fuel consumption
• Variable speed – load-dependent
• Easy to install – reduces costs
• Small size and low weight – compact installation
• High starting capacity for air conditioners / diving compressors
• Highly efficient – maximum energy
• Pure sinus wave is ideal for sensitive electronics
• External 12V fuel pump
