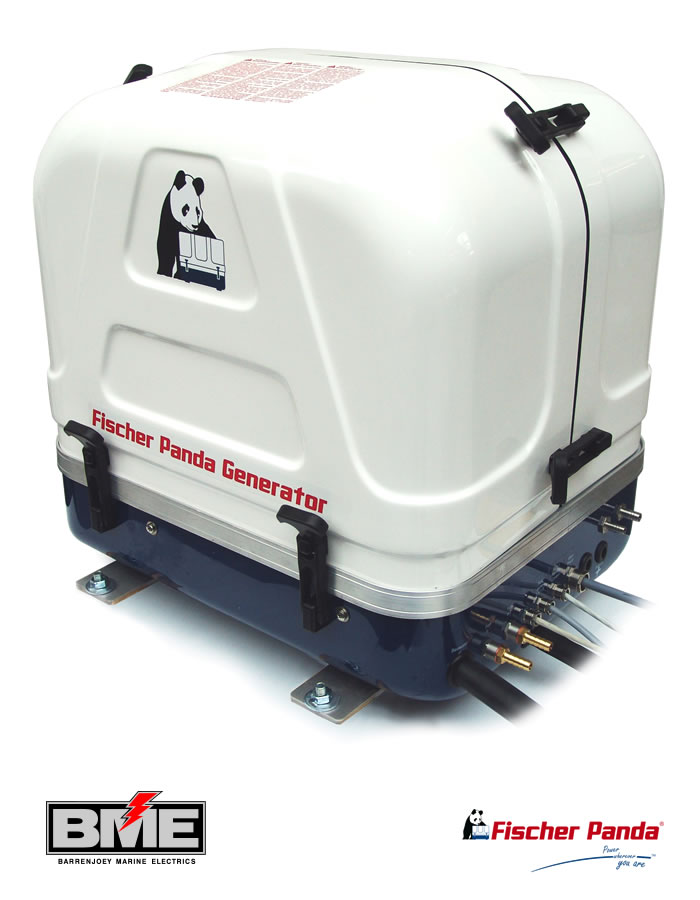

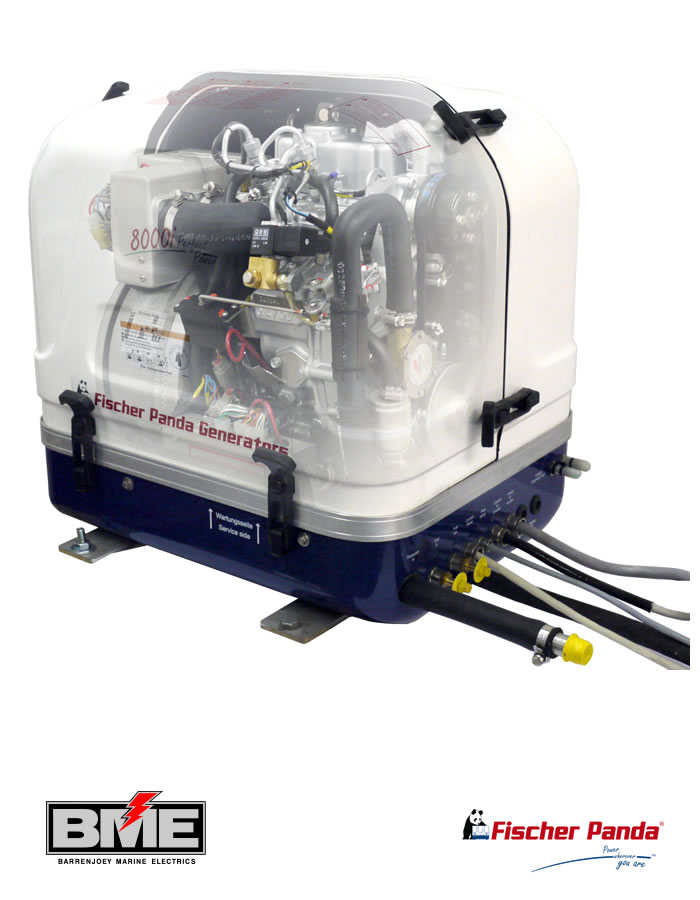

Fischer Panda 8000I PMS 230V 50Hz 8kW Marine Generator

Fischer Panda 8000I PMS 230V 50Hz 8kW Marine Generator

Panda i-Series (50 Hz) Features

• Digital display
• Environmentally friendly – low fuel consumption
• Variable speed – load-dependent
• Easy to install – reduces costs
• Small size and low weight – compact installation
• High starting capacity for air conditioners / diving compressors
• Highly efficient – maximum energy
• Pure sinus wave is ideal for sensitive electronics
• External 12V fuel pump

Fischer Panda PMS Features

• Suitable for internal installation
• Low ambient temperatures
• External control panel with cable
• Dual circuit cooling

Single Phase Version with Inverter Technology

Engine Speed [rpm]: 2200 – 2800 Nominal Voltage in Volt: 230 Nominal Performance in kW)1): 0-6.40 Nominal Performance in kVA1): 0-8.0 Continuous Performance in kW1): 0-5.7 Continuous Performance in kVA1): 0-7.2 Number of Phases: 1 Max. Rated Inrush Current in Ampere: 75A Frequency [Hz]: 50

Fischer Panda 8000I PMS 230V 50Hz 8kW Marine Generator Specifications

---

Electrical Data

• Frequency [Hz]: 50
• Generator manufacturer: Fischer Panda GmbH
• Isolation class of windings: H
• Nominal Speed [rpm]: 2200-2800 rpm
• Voltage Regulation: iControl
• Voltage Tolerance: ±3%
• Power rating factor Cos Pi: 0.80

Engin Data

• Engine Manufacturer: Kubota (KU)
• Engine Type: Z482
• No. Cylinders: 2
• Displacement [cm3]: 479
• Starter System: 12V (24V Optional)
