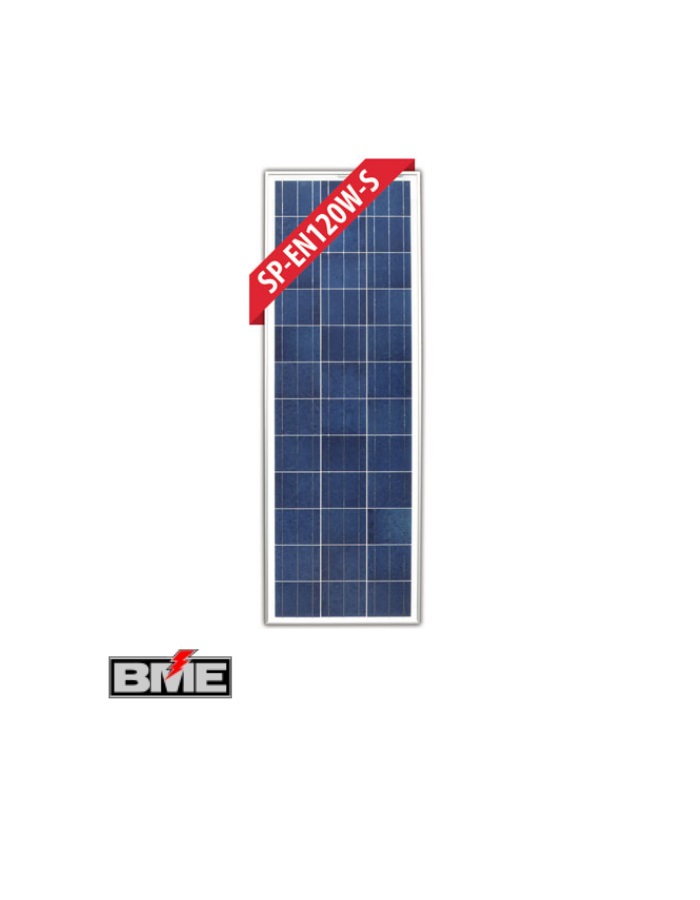

Enerdrive 120W Slim Fixed Solar Panel Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included. Enerdrive stocks a full range of spare cables.
With a mass of factories developing solar panels around the world, the biggest choice is ‘Where to buy” & even more importantly “What quality and support am I getting”. Enerdrive can become your single point contact for all things relating to solar products, warranty and importantly that same level of support that we have provided for many years with all Enerdrive products. Panel Tips
- Keep your panel in direct sunlight as much as possible.
- Secure your Folding Solar Kit from theft around your work or campsite.
- Protect and store your portable folding kit in the most secure place you can to prevent accidental breakage
Enerdrive 120W Slim Fixed Solar Panel Specifications
| Enerdrive Part Number | SP-EN200W |
|---|---|
| Max Power Pm(W) | 200 |
| Power Tolerance % | – 1% ∼ + 3% |
| Max Power Voltage Vm(V) | 37.26 |
| Max Power Current Im(A) | 5.37 |
| Open Circuit Voltage Voc(V) | 43.7 |
| Short Circuit Current Isc(A) | 6.17 |
| Max System Voltage (VDC) | 1000 |
| Dimensions (mm) | 1580 x 800 x 40 |
| Weight (kg) | 15.3 |
| Test Conditions | 1000W/m² , AM1.5 , 25°C |
| SP-EN10W | SP-EN20W | SP-EN40W | SP-EN55W | SP-EN80W | SP-EN100W | SP-EN120W-S | SP-EN150W | SP-EN200W | |
|---|---|---|---|---|---|---|---|---|---|
| Note: Specifications subject to change without notice. | |||||||||
| Max Power Pm(W) | 10 | 20 | 40 | 55 | 80 | 100 | 120 | 150 | 200 |
| Power Tolerance % | ± 3% | ± 3% | 0% ∼ 3% | ± 3% | – 1% ∼ + 3% | – 1% ∼ + 3% | – 1% ∼ + 3% | ± 3% | – 1% ∼ + 3% |
| Max Power Voltage Vm(V) | 16.6 | 17.6 | 35.5 | 18 | 17.99 | 18 | 17.7 | 18.8 | 37.26 |
| Max Power Current Im(A) | 0.613 | 1.13 | 1.13 | 3.05 | 4.45 | 5.56 | 6.78 | 8.01 | 5.37 |
| Open Circuit Voltage Voc(V) | 22.3 | 22.03 | 43.1 | 22.29 | 22.19 | 22 | 22.5 | 24.0 | 43.7 |
| Short Circuit Current Isc(A) | 0.786 | 1.5 | 1.85 | 3.73 | 4.85 | 6.34 | 7.45 | 8.62 | 6.17 |
| Max System Voltage (VDC) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Dimensions (mm) | 320 x 279 x 30 | 540 x 350 x 30 | 567 x 670 x 35 | 840 x 541 x 35 | 780 x 660 x 35 | 1195 x 541 x 35 | 1578 x 541 x 35 | 1482 x 660 x 35 | 1580 x 800 x 40 |
| Weight (kg) | 1 | 3 | 4.6 | 5 | 7.9 | 7.9 | 10.2 | 12 | 15.3 |
| Test Conditions | 1000W/m² , AM1.5 , 25°C |
