Blue Water Explorer Watermaker

Blue Water EXL Watermakers are designed for the mid sized to large vessels, the Blue Water Explorer Series desalination systems range from 475 Gallons (1,800 Litres) Per Day to 1,800 Gallons (6,810 Litres) Per Day.

This product is currently out of stock and unavailable.

Description

Blue Water Explorer for Mid to Large Vessels

Blue Water EXL Watermakers are designed for the mid sized to large vessels, the Blue Water Explorer Series desalination systems range from 475 Gallons (1,800 Litres) Per Day to 1,800 Gallons (6,810 Litres) Per Day.

With an electronic controller and LED indicators, the Explorer Series units allow for simple semi-automatic operation use, whilst enabling interaction with hands on owners via the traditional switches and manual high pressure valve.

There is no extra charge for upgrade to commercial grade pre-filters. Additionally, the Explorer Series units are available as either compact or modular for when there is a shortage of space available.

Features

  • Fresh Water Flush system
  • High Rejection membranes
  • Quiet and reliable high-pressure pumps
  • Product water Carbon filter
  • Dual voltage 50/60 Hz motors
  • Stainless steel booster pump shaft
  • Designed for ease of service & maintenance
  • Installation kit including bronze sea strainer
  • No charge upgrade to Commercial Pre-filter

Advantages

  • Semi-Automatic operation
  • Simple controller with LCD screen & hour meter
  • Optional remote control
  • Compact design
  • Expandable to 1800 gallons per day
  • High and low-pressure safety switches

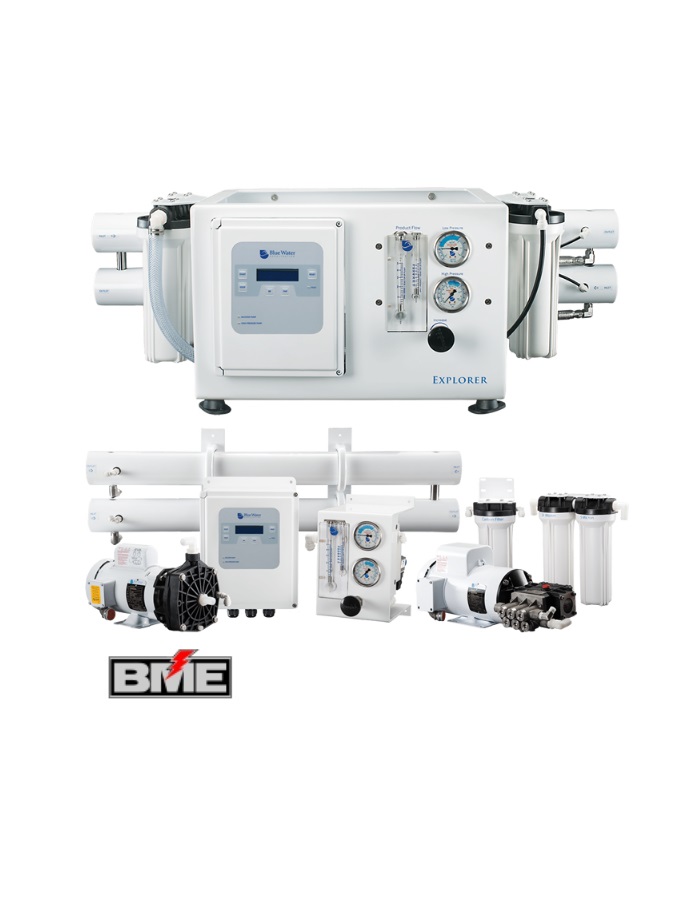

  • Available in both compact frame and modular component style configurations
Blue Water Explorer 68 Watermaker

Explorer Series Specifications


Model # No. of Membranes Production / hour Production / 24 hour (Gallon / Liter) Feed Flow GPM Weight
(lbs. / kg.)
EXL 475 1 20 Gal / 75 L 475 / 1,800 4.2 160 / 73
EXL 750 1 31 Gal / 118 L 750 / 2,840 4.2 170 / 77
EXL 950-1 1 40 Gal / 150 L 950 / 3,600 4.2 180 / 82
EXL 950-2 2 40 Gal / 150 L 950 / 3,600 4.2 195 / 88
EXL 1200 2 50 Gal / 189 L 1,200 / 4,540 4.2 210 / 95
EXL 1500 2 63 Gal / 237 L 1,500 / 5,680 4.2 210 / 95
EXL 1800 2 75 Gal / 284 L 1,800 / 6,810 4.2 225 / 102
Model
(Phase)
Booster Pump
HP | kW
HP Pump
HP | kW
Hz Voltage Run Amps Start Amps
Single 0.50 | 0.37 2.5 | 1.8 50/60 110/220 31 / 15.5 109 / 55
Three 0.50 | 0.37 3.0 | 2.2 50/60 208/230 10.6 / 8.9 37 / 36
Three 0.50 | 0.37 3.0 | 2.2 50/60 380/460 5.3 / 4.4 18 / 16

Product Enquiry

Would you like to know more?

Please complete our short form below to let us know the details of your enquiry

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Blue Water Explorer Watermaker”
About Blue Water

Blue Water Desalination offers a distinct lines of watermakers to suit the needs of the day fisherman up to the long-range sailor and yachtsman. Blue Water Desalination offer dozens of models of varying capacities in both frame and modular style configurations along with high-output commercial systems that can be custom designed for many different applications.

All Blue Water systems feature:

  • Fresh Water Flush system
  • High Rejection membranes
  • Quiet and reliable high pressure pumps
  • Product water Carbon filter
  • Dual voltage 50/60 Hz motors
  • Stainless steel booster pump shaft
  • Designed for ease of service & maintenance
  • Installation kit including bronze sea strainer

Blue Water Desalination have a steadfast commitment to providing world class customer experiences to complement Blue Water Desalination range of cutting edge watermakers that fit the needs of the most discerning marine owners and operators.
