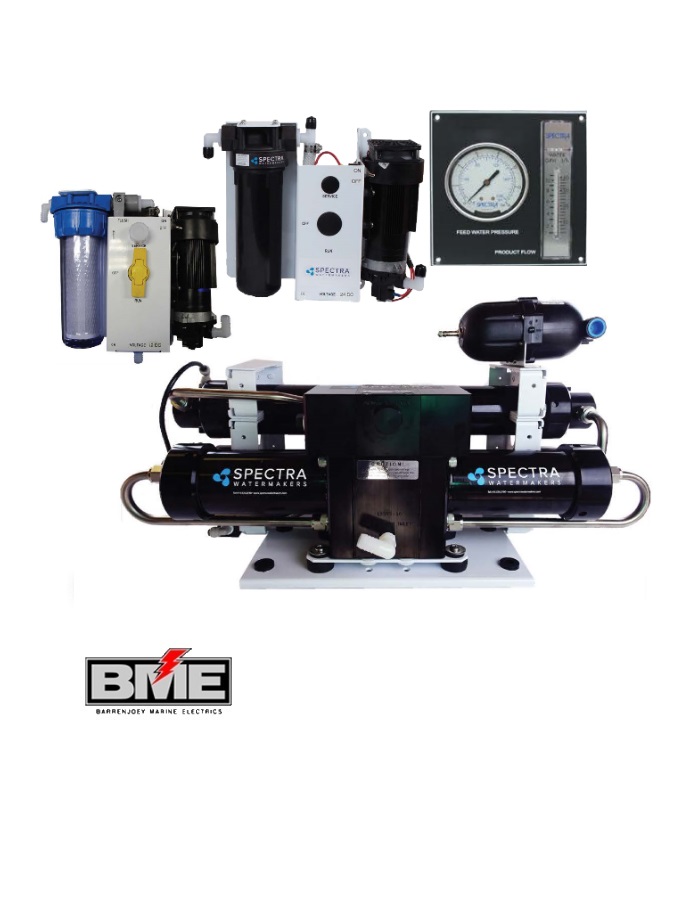

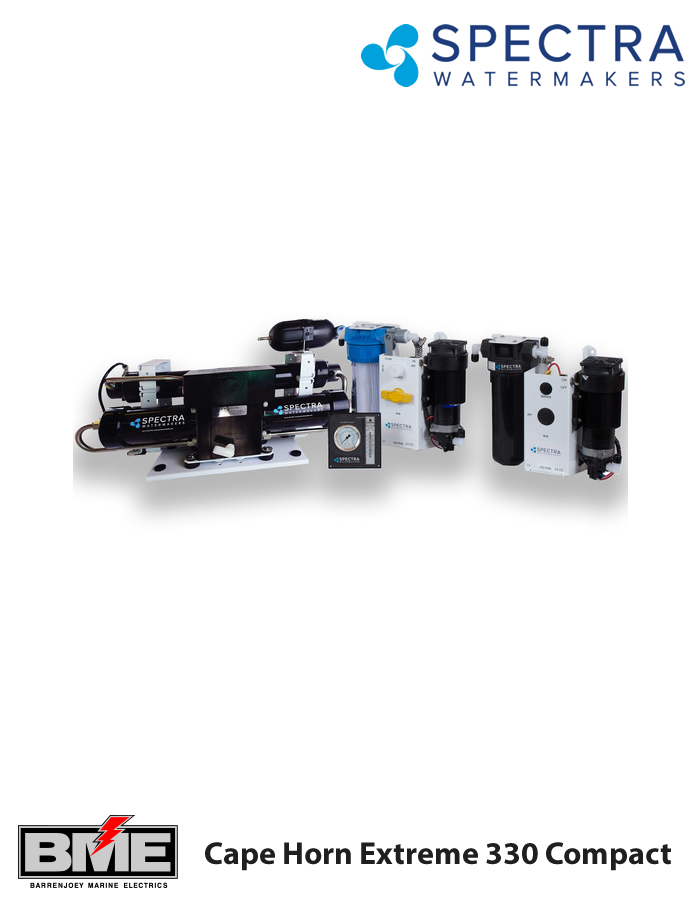

Spectra Cape Horn Extreme 330 Compact Water Maker

Spectra Cape Horn Extreme 330 Compact Water Maker

The Cape Horn Extreme continues to be the choice for serious offshore racing campaigns like the Volvo Ocean Race and Clipper Challenge round-the-world yachts. The Cape Horn Extreme Compact is reliable and durable, with its diaphragm feed pumps in parallel, it can be run on a single pump for high efficiency or two pumps for high output.

The system uses rugged mechanical controls and gauges and is perfect for the hands-on racer or cruiser.

Features

• Redundant dual feed pumps for maximum reliability
• Simple analog control panel
• Compact modular design
• Spectra’s unique Clark Pump for efficiency and reliability
• High and low speed operation for customizable power management and output volume
• Low power consumption, can be run on batteries, solar, or wind power
• Whisper quiet
• Commercial grade diaphragm pumps with run dry protection
• System includes installation kit, handheld water quality tester, and product sample valve
• Z±ION Compatible

Spectra Cape Horn Extreme 330 Compact Water Maker Specifications

• Production / Day: 330 gal (1249 l)
• Production / Hour: 15 gal (56 l)
• Power Requirement:
  12v DC 19A / 24v DC 10A
  16 Watts/1 gal 4.2 Watts/1 liter
• Weight: 90 lbs (41 kg)
• Pre Filters: 2.5”x10” pleated polyester 5 micron
• Controls: Analog controls
• Installation Requirements: Dedicated thruhull, dry and well ventilated area not to exceed 110°F/37°C
• Membranes: (2) 20” x 2.5” High rejection spiral wound polyamide
• Pump and Motor: Shurflo diaphragm pump
• Salt Rejection: 99.2%
• Temperature Range: Max 110°F/37°C Min 36°F/2°C
• Baseline Conditions: 33,000 PPM feed water at 77°F/25°C
• pH Range: 3-11 (typical seawater pH is 8)
• Chlorine Tolerance: 0 PPM
• Warranty: Spectra standard warranty
• Shipping Weight: 100 lbs (45 kg)
• Shipping Dimensions: 84cm x 64cm x 117cm – 33”x25”x19”

Download

• Cape Horn Extreme 330 Compact Fact Sheet
• Cape Horn Extreme 330 Manual
