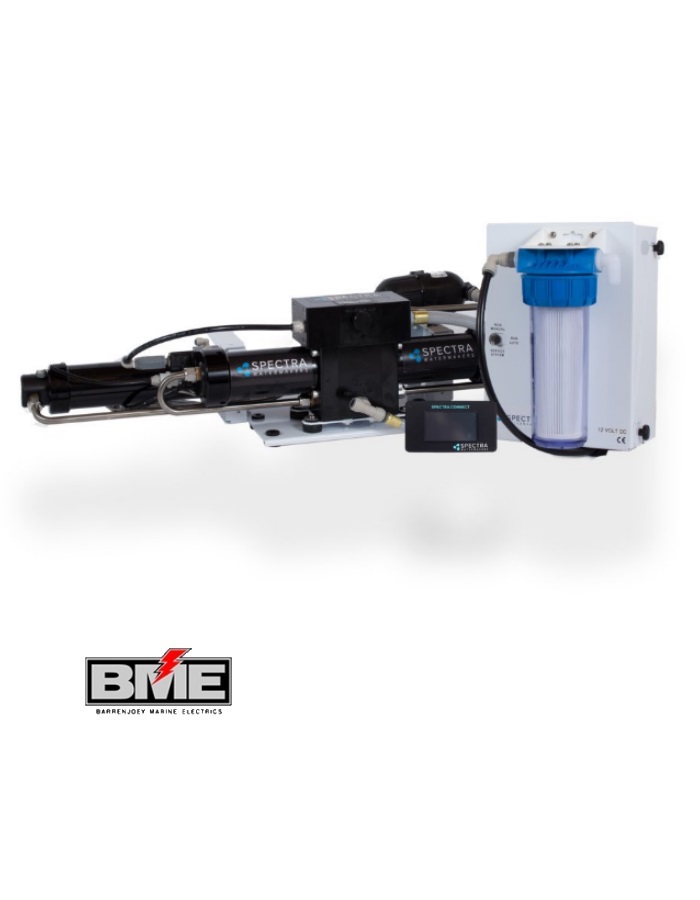

Spectra Catalina 340c Water Maker

Spectra Catalina 340c Water Maker

The new Catalina 340c produces 14 gallons (53 liters) of water per hour, making it the perfect watermaker for the midsize yacht with two to four people onboard. The Catalina uses the Spectra Magdrive feed water pump, making the system extremely quiet, energy-efficient, and reliable.

This system comes standard with the Spectra Connect allows you to operate and monitor your watermaker from a remote device, and has newly added features like the Fill Tank mode, or a customizable Auto Run mode, One-TouchSensor Calibration, and suggested maintenance intervals displayed on the
dashboard.

Features

• Completely automated with the Spectra Connect Controller
• Compact modular design
• Spectra’s unique Clark Pump for efficiency and reliability
• High and low speed operation for customizable power management and output volume
• Low power consumption, can be run on batteries, solar, or wind power
• Whisper quiet
• Commercial grade diaphragm pumps with run dry protection
• System includes installation kit, handheld water quality tester, and product sample valve
• Z±ION Compatible

Spectra Catalina 340c Water Maker Specifications

• Production / Day: 340 gal (1287 l)
• Production / Hour: 14 gal (53 l)
• Power Requirement:
  12v DC 18A / 24v DC 9A
  15 Watts/1 gal 4 Watts/1 liter
• Weight: 110 lbs (50 kg)
• Pre Filters: 2.5”x10” pleated polyester 5 micron
• Controls: Spectra Connect Remote Controller
• Installation Requirements: Dedicated thruhull, dry and well ventilated area not to exceed 110F/37C
• Membranes: 40” x 2.5” High rejection spiral wound polyamide
• Pump and Motor: Brushed DC motor with carbon vane pump
• Salt Rejection: 99.2%
• Temperature Range: Max 110F/37C Min 36F/2C
• Baseline Conditions: 33,000 PPM feed water at 77F/25C
• pH Range: 3-11 (typical seawater pH is 8)
• Chlorine Tolerance: 0 PPM
• Warranty: Spectra standard warranty
• Shipping Weight: 120 lbs (55 kg)
• Shipping Dimensions: 120cm x 59cm x 46cm – 47”x23”x18”

Download

•  Catalina 340C Manual
• Catalina 340c Fact Sheet
