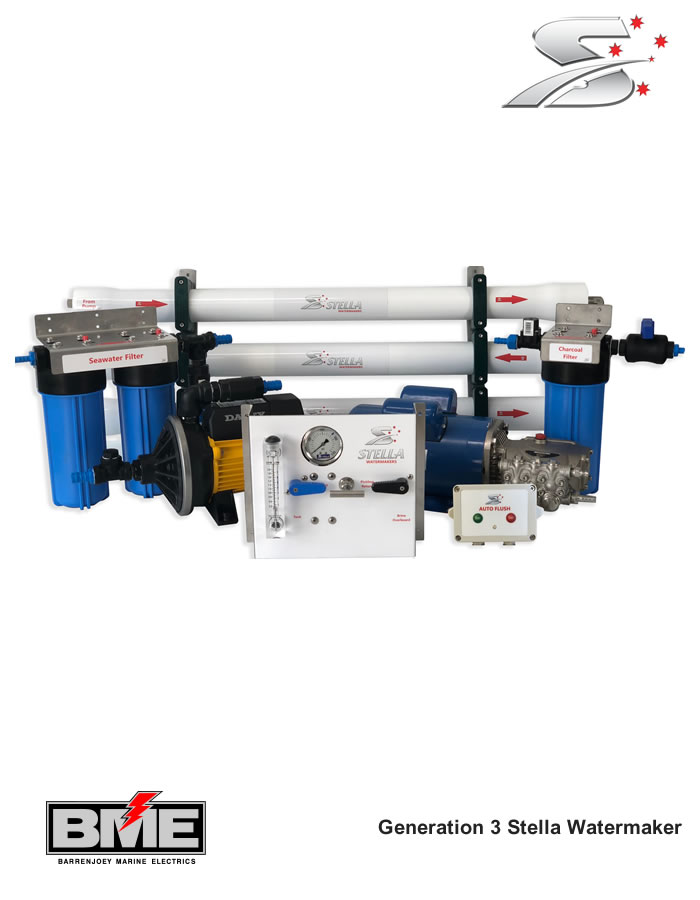

Generation 3 Stella Watermaker is a modular watermaker system (separate components, not a large framed box) so they can be fitted wherever there is available space (pictured) and use no electronics, just simple manual control valves.
All Generation 3 Stella Watermaker come standard with
- 1 x Control Panel
- 1 x GP motor and high-pressure pump (unless engine drive)
- 1 x Davey Low-Pressure Pump

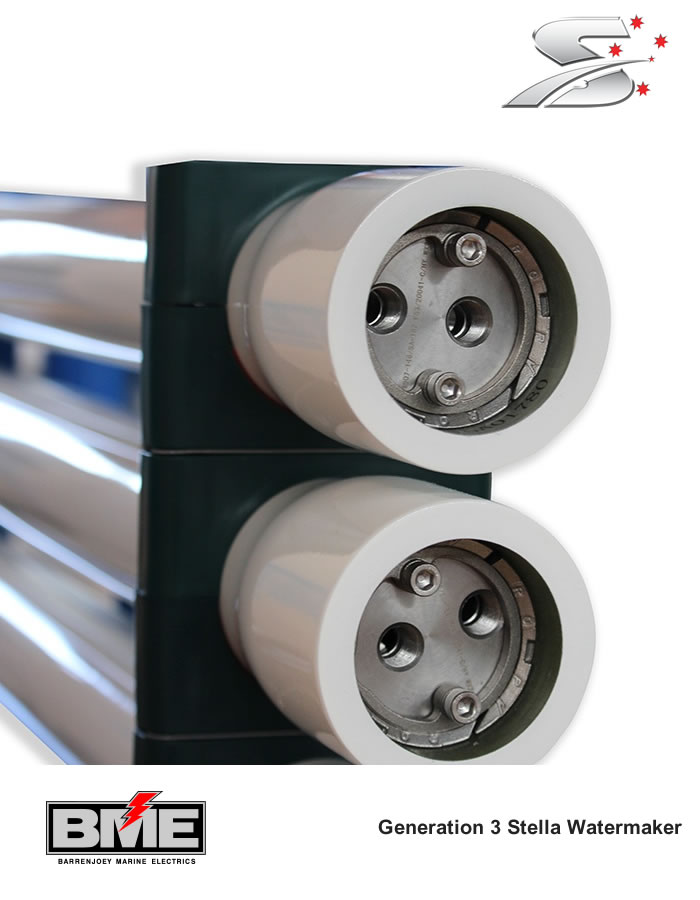

- Filmtec membranes (1,2 or 3) and housings
- 1 x 20 micron and 5-micron pleated filters
- 2 x seawater filter housings
- 1 x carbon filter, and housing
- standard high-pressure hoses and a TDS reader
How To Replace A Watermaker Membrane
Stella Manufactures AC or Engine Driven Watermakers
Generation 3 Electric 240VAC
The Generation 3 Electric watermakers for larger powerboats, yachts, and catamarans with a suitable sized AC Genset. Always the first option, easy installation and makes lots of water fast. You will need a minimum 3.5kva (continuously rated) Genset to run our 240VAC electric unit. Output is 80, 160, or 210 litres per hour of water using 1, 2, or 3 standard membranes. Power usage (LP and HP pump) is approx. 12amps when running (without start-up load). For more info download the 240VAC manual at the bottom of this page.
Generation 3 Engine Driven
For all marine vessels without a Genset, but with an inboard engine. It’s a very efficient and reliable way of making plenty of water very quickly. You will need a suitable engine with room to fit an engine bracket and pulley system. We have some standard brackets available or custom fabrication is required. Output is 80, 160, or 240 litres per hour of water using 1, 2, or 3 standard membranes. Power usage is approx. 2HP draw from the engine. For more info download the engine drive manual at the bottom of this page.
Generation 3 Stella Watermaker Options
Auto Flush
Makes it easier to maintain your watermaker if you are not making water or on the boat every week to perform a manual flush. All watermaker membranes need to be freshwater flushed after each use and then every 7 days if not pickled for storage to avoid damage to the membrane. Our auto-flush system includes a box with a dual timer and solenoid valve to flush your system with water from your boat’s tank for a few minutes every 7 days.
Spares Kit
All the consumables you need for 6-12 months cruising (depending on usage). Includes: 3x 20-micron seawater filters, 3x 5-micron seawater filters, 1x 5-micron charcoal (carbon) filter, 1x 500g pickling solution (for membrane storage), 1x 1lt HP pump oil.
