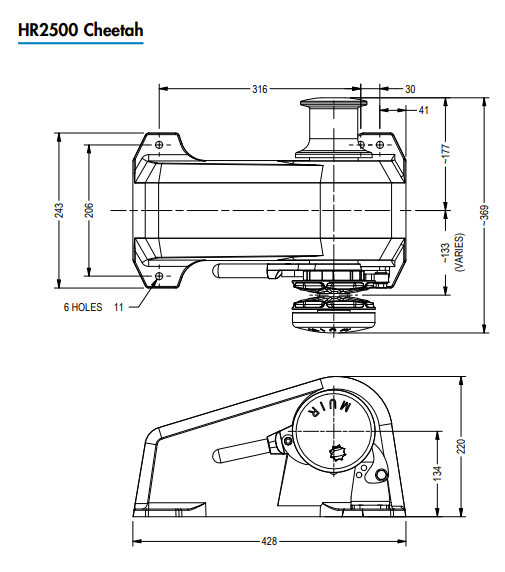

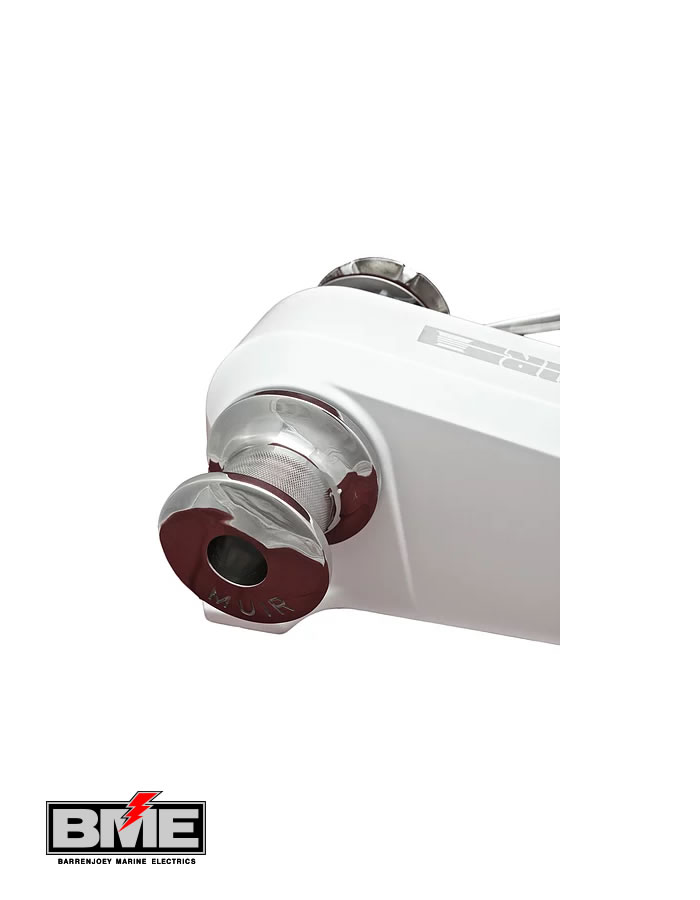

Muir Compact HR 2500 Cheetah
The Muir Compact series winches incorporates many of the innovative features available across the Atlantic range. The powerful Muir Compact range of horizontal windlasses provides the perfect alternative to vertical models for all recreational, commercial and fishing vessels up to 25 metres. These complete above deck units are constructed from durable marine alloy housings enclosing the powerful and heavy duty motor and gearbox, waterproofing and protecting it from the harsh elements.
| Model | HR4200 Thor | HR4000 Thor | HR3500 Jaguar | HR2500 Cheetah | HR1600 Cougar |
|---|---|---|---|---|---|
| Vessel Length | 18-25m (58-80ft) | 18-24m (58-77ft) | 14-20m (45-65ft) | 13-17m (42-55ft) | 9-13m (29-42ft) |
| Power Supply (DC) | 24V | 24V | 12/24V | 12/24V | 12/24V |
| Motor (Watts) | 2000 | 1500 | 1500 | 1200 | 1000 |
| Hydraulic Pressure | 12MPa (1750PSI max) | 12MPa (1750PSI max) | 10MPa (1450PSI) | 10MPa (1450PSI) | N/A |
| Hydraulic Flow | 28L/min (7.5gal/min) | 28L/min (7.5gal/min) | 28L/min (7.5gal/min) | 20L/min (5.5gal/min) | N/A |
| Max Load | 2045kg (4500lb) | 1818kg (4000lb) | 1590kg (3500ft) | 1136kg (624lb) | 545kg (1200lb) |
| Work Load | 682kg (1500lb) | 606kg (1333lb) | 530kg (1167lb) | 379kg (833lb) | 182kg (400lb) |
| Amps Work Load | 110 | 90 | 185/90 | 150/75 | 125/60 |
| Max Line Speed | 13.5m/min (44ft/min) | 13.5m/min (44ft/min) | 15m/min (48ft/min) | 15m/min (48ft/min) | 14.5m/min (46ft/min) |
| Chain Size | 10mm (3/8″), 13mm (1/2″), 16mm (5/8″) | 10mm (3/8″), 13mm (1/2″), 16mm (5/8″) | 10mm (3/8″), 13mm (1/2″), 8mm (5/16″) | 10mm (3/8″), 8mm (5/16″) | 10mm (3/8″), 6mm (1/4″), 8mm (5/16″) |
| Net Weight | DC 64kg (140lb), HYD 63kg (139lb) | DC 64kg (140lb), HYD 63kg (139lb) | DC 58kg (128lb), HYD 57kg (125lb) | DC 36kg (79lb), HYD 35kg (77lb) | DC 25kg (55lb), HYD 24kg (53lb) |
| Manual Operation | MORS (std) | MORS (std) | MORS (std) | MORS (std) | MORS (std) |
Main Features Muir Compact 2500
- Made in Tasmania, Australia
- Gypsy for Rope & Chain Combination or Gypsy for Chain Only
- Manual Override System (MORS)
- Heavy Duty Dual Direction Motor 12 & 24V DC
- Hydraulic Option for the HR 2500 Model
- New durable and low-maintenance composite housing
- Fully enclosed motor & gearbox
- Independent gypsy and capstan operation
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- Stainless steel drive shaft
- Cone clutch/brake
- Shaft seal
- Clutch release handle
Options
- Twin gypsy, twin capstan
- Traditional polished bronze finish on running gear
- Full range of accessories including chain, chain pipes, chain stoppers, snubber kits & devil claws
- Electric & hydraulic operating options & accessories
- Auto anchor – chain counter.
