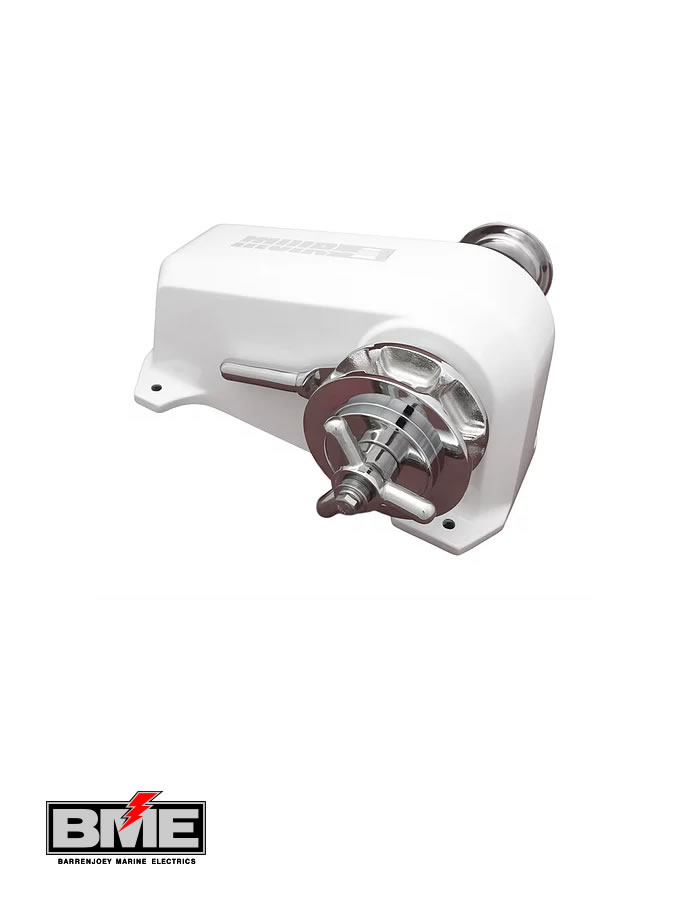

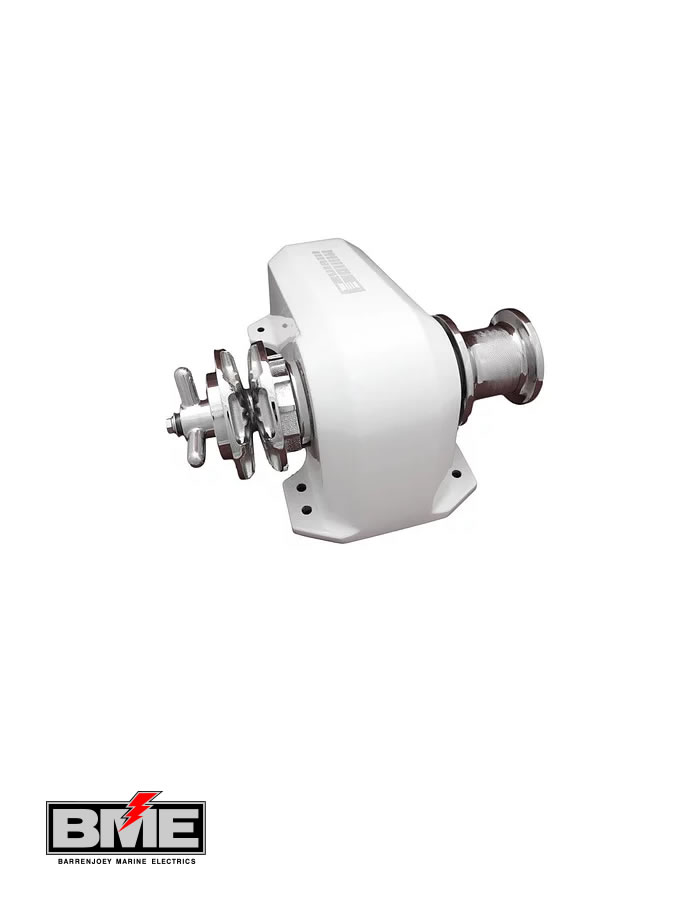

Muir Compact Cougar Anchor Winch 1600 12V or 24V DC 1000W
The Muir Compact HR 1600 series of horizontal windlasses are ideal for installations where chain locker space is at a premium or not easily accessible. These complete above deck units are constructed from durable marine alloy housings enclosing the powerful and heavy duty motor and gearbox, waterproofing and protecting it from the harsh elements. The Compact series incorporates many of the innovative features available across the vertical Atlantic range.
Specifications of Muir Compact Cougar 1600
| Model | HR4200 Thor | HR4000 Thor | HR3500 Jaguar | HR2500 Cheetah | HR1600 Cougar |
|---|---|---|---|---|---|
| Vessel Length | 18-25m (58-80ft) | 18-24m (58-77ft) | 14-20m (45-65ft) | 13-17m (42-55ft) | 9-13m (29-42ft) |
| Power Supply (DC) | 24V | 24V | 12/24V | 12/24V | 12/24V |
| Motor (Watts) | 2000 | 1500 | 1500 | 1200 | 1000 |
| Hydraulic Pressure | 12MPa (1750PSI max) | 12MPa (1750PSI max) | 10MPa (1450PSI) | 10MPa (1450PSI) | N/A |
| Hydraulic Flow | 28L/min (7.5gal/min) | 28L/min (7.5gal/min) | 28L/min (7.5gal/min) | 20L/min (5.5gal/min) | N/A |
| Max Load | 2045kg (4500lb) | 1818kg (4000lb) | 1590kg (3500ft) | 1136kg (624lb) | 545kg (1200lb) |
| Work Load | 682kg (1500lb) | 606kg (1333lb) | 530kg (1167lb) | 379kg (833lb) | 182kg (400lb) |
| Amps Work Load | 110 | 90 | 185/90 | 150/75 | 125/60 |
| Max Line Speed | 13.5m/min (44ft/min) | 13.5m/min (44ft/min) | 15m/min (48ft/min) | 15m/min (48ft/min) | 14.5m/min (46ft/min) |
| Chain Size | 10mm (3/8″), 13mm (1/2″), 16mm (5/8″) | 10mm (3/8″), 13mm (1/2″), 16mm (5/8″) | 10mm (3/8″), 13mm (1/2″), 8mm (5/16″) | 10mm (3/8″), 8mm (5/16″) | 10mm (3/8″), 6mm (1/4″), 8mm (5/16″) |
| Net Weight | DC 64kg (140lb), HYD 63kg (139lb) | DC 64kg (140lb), HYD 63kg (139lb) | DC 58kg (128lb), HYD 57kg (125lb) | DC 36kg (79lb), HYD 35kg (77lb) | DC 25kg (55lb), HYD 24kg (53lb) |
| Manual Operation | MORS (std) | MORS (std) | MORS (std) | MORS (std) | MORS (std) |
Main Features Muir Compact Cougar 1600
- Made in Tasmania, Australia
- Gypsy for Rope & Chain Combination or Gypsy for Chain Only
- Manual Override System (MORS)
- Heavy Duty Dual Direction Motor 12 & 24V DC
- Hydraulic Option for the HR 2500 Model
- New durable and low-maintenance composite housing
- Fully enclosed motor & gearbox
- Independent gypsy and capstan operation
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- Stainless steel drive shaft
- Cone clutch/brake
- Shaft seal
- Clutch release handle
Options
- Twin gypsy, twin capstan
- Traditional polished bronze finish on running gear
- Full range of accessories including chain, chain pipes, chain stoppers, snubber kits & devil claws
- Electric & hydraulic operating options & accessories
- Auto anchor – chain counter.
