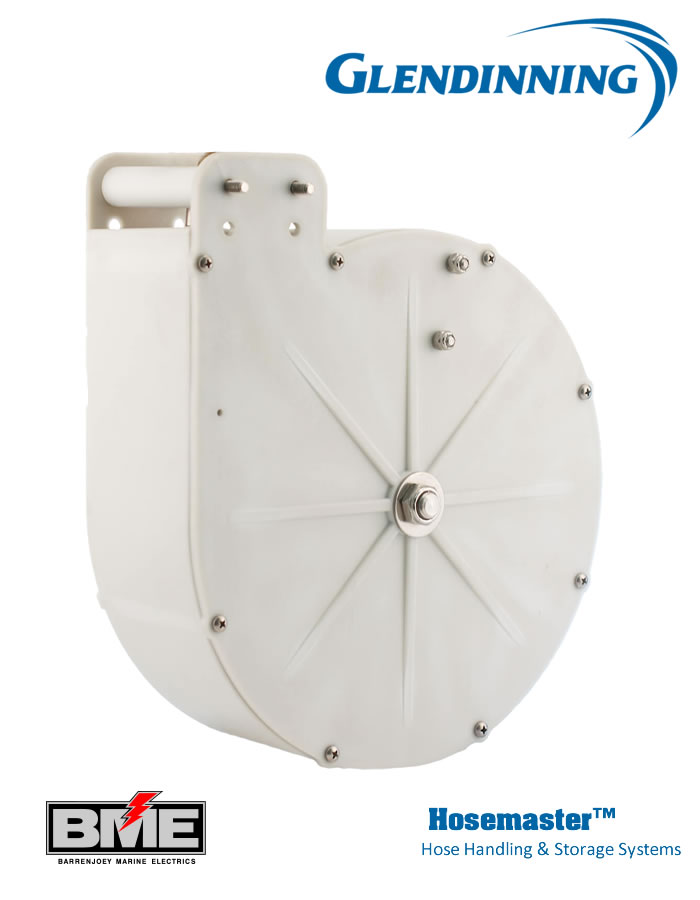

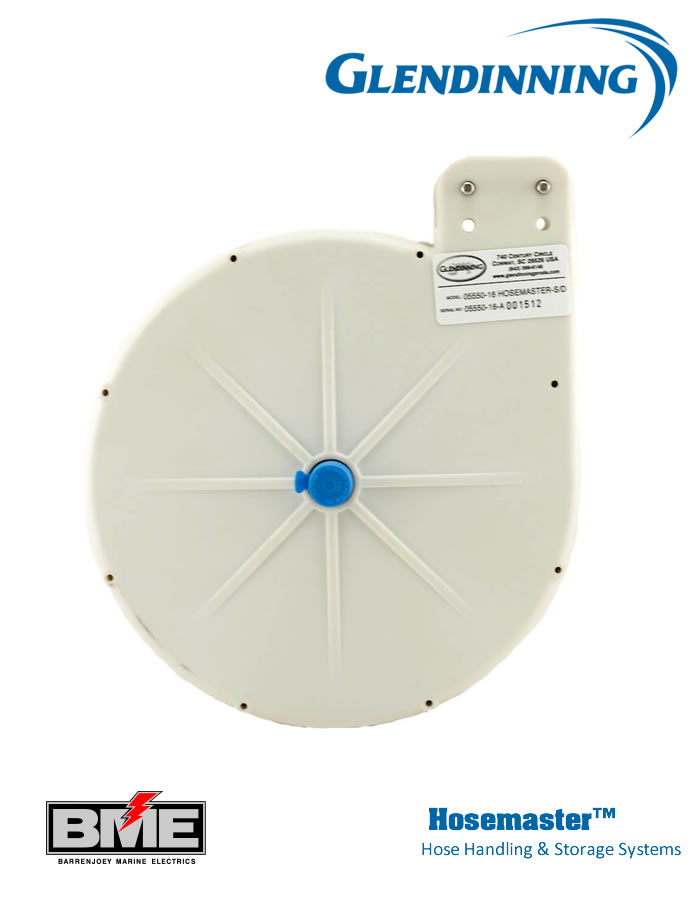

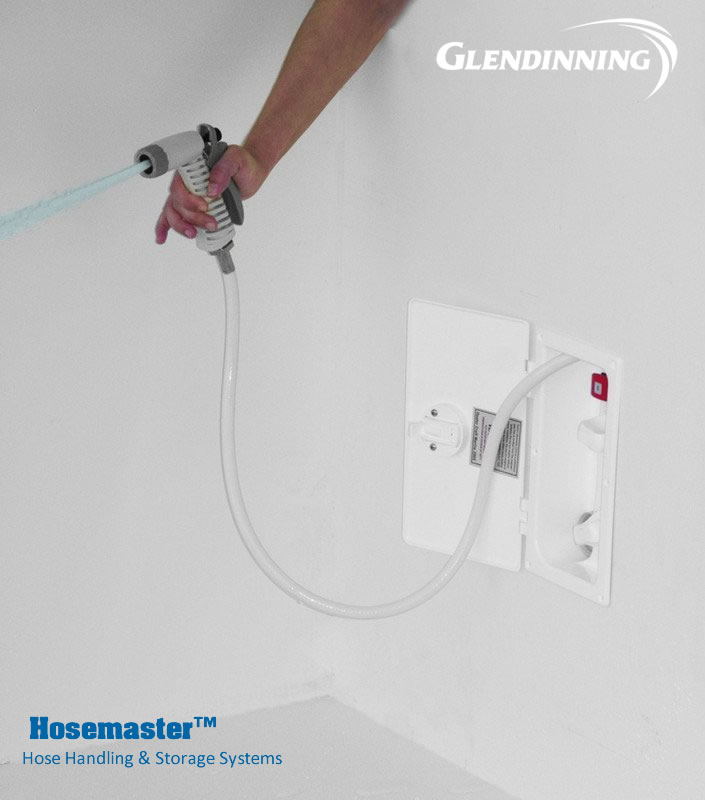

Glendinning Hosemaster Model S
- Manual pull out, spring powered retraction & storage
- Compact design able to fit in small areas
- Constructed with reinforced plastic and stainless steel fittings
- Hose Type: Water
- Hose Length: 2.4m and 6.1m available
- Hose ID: 8mm
- Max Pressure (PSI): 125 psi at 150° F (66° C)
- Approvals: Potable water approved, NSF51/61
Handle and store your shower and washdown hoses with ease!
- Saves Effort
- Stainless steel construction
- Fits virtually anywhere
- Various mounting options

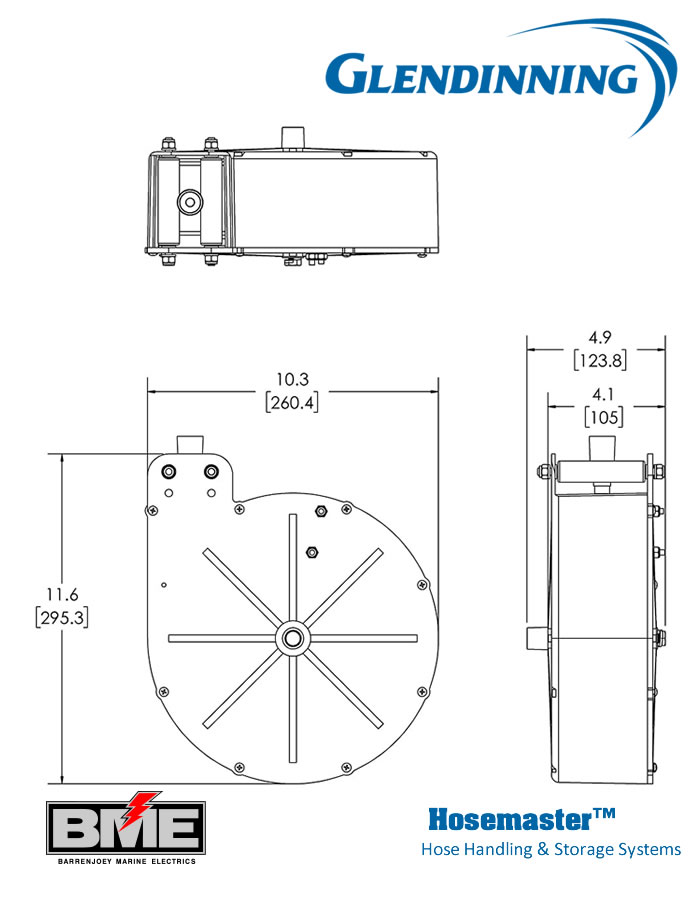

Hosemaster Model S Specifications
- Hose Outlet Connection
1/2″ NPT Female - Hose Type
9mm ID, white non-marking - Pressure Rating
125psig @ 140°F - Weight
4.08kg - Mounting
units supplied complete with edge bracket and two side brackets
Convenient
Hands-free, easy storage of your bathing deck shower or deck wash hose.
Easy To Use
Pull out as much hose as you need, then when you are done, the built in spring mechanism will quickly retract and store the hose for you.
Built To Last
Constructed for the marine environment using a combination of stainless steel and composite materials.
Compact
Self contained unit, fits in the smallest available spaces.
Flexible
Supplied complete with both side and edge mount brackets. Various shower head options available.

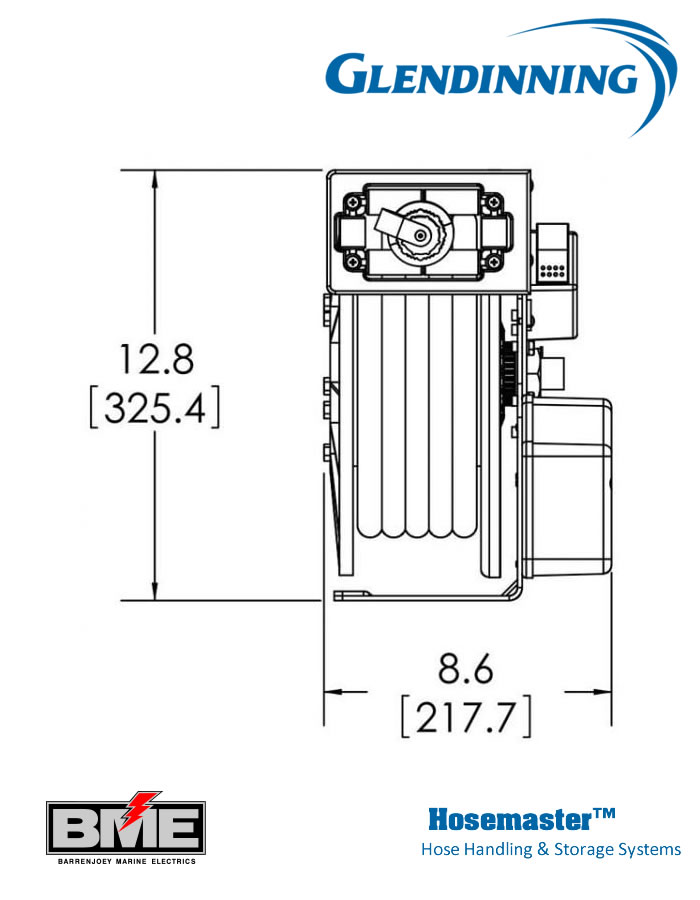

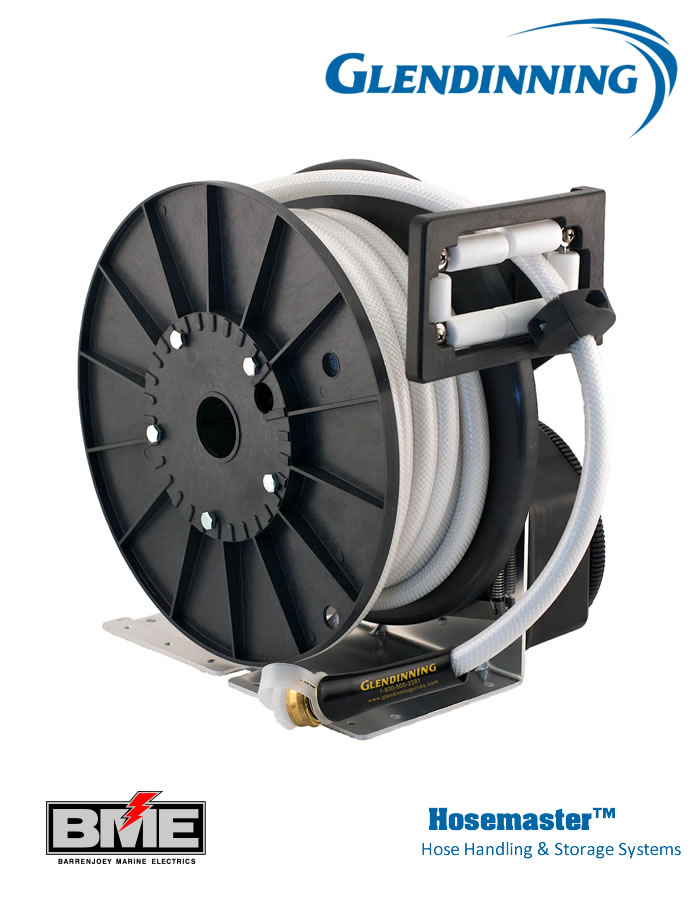

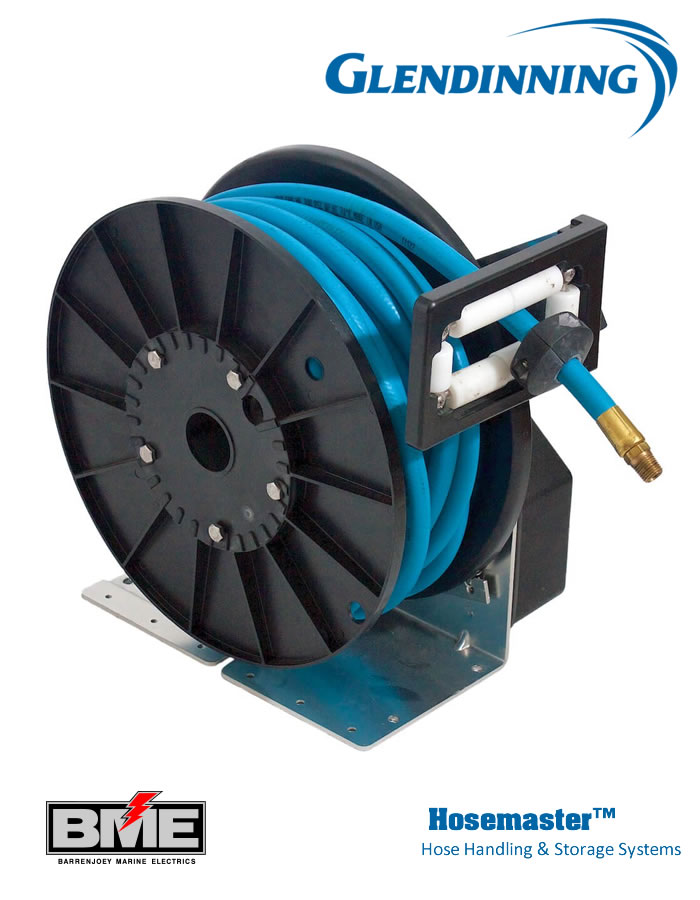

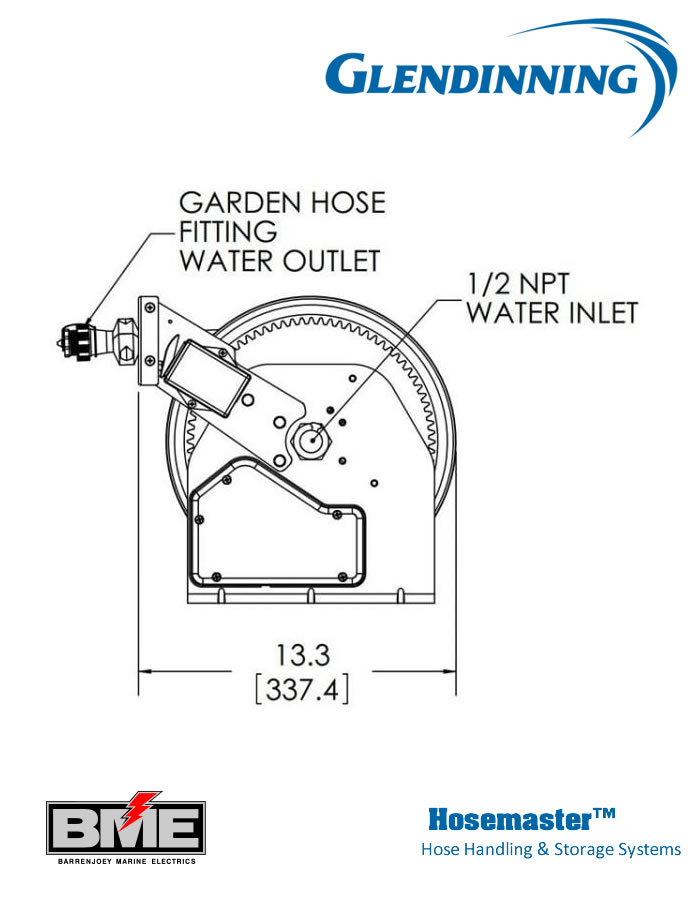

Glendinning Hosemaster Model M
- Manual pull out, motorized retraction & storage
- “Zero-effort” pull out technology – no spring to overcome
- Compact design able to fit in small areas
- Variety of mounting options
Variety of mounting options
- Hose Types: Water
- Hose Length:15.2m
- Hose ID: 1/2″ – 5/8″
- Input Voltage: 12 or 24 VDC
Handle and store your shower and washdown hoses with ease!
- Saves Effort
- Stainless steel construction
- Fits virtually anywhere
- Various mounting options
- Retract and store your hose with ease
- “Zero-Effort” patented freewheel gearmotor allows for effortless hose extension
- Integrated guide roller helps guide the hose as it is retracted on the reel and provides a positive stop
- when the hose is fully retracted
- Store your water hose in the most compact way
- Simple installation using mounting brackets
- Built to provide years of maintenance free use in any environment. Manufactured from stainless steel, aluminum and reinforced plastic
- Approvals: CSA Potable water approved, Hose: NSF61, conforms to TS-25
Customizable Features
- Model M currently manufactured for water and air hose, but reels can be designed to handle a variety of different hoses
- Designed to handle hose with a 12.7mm & 15.9mm inside diameter
- Can handle up to 50 feet of hose depending on diameter
- Available for both 12 & 24 VDC setups
- Variety of installation mounting options available
- Variety of water hose nozzles and accessories available

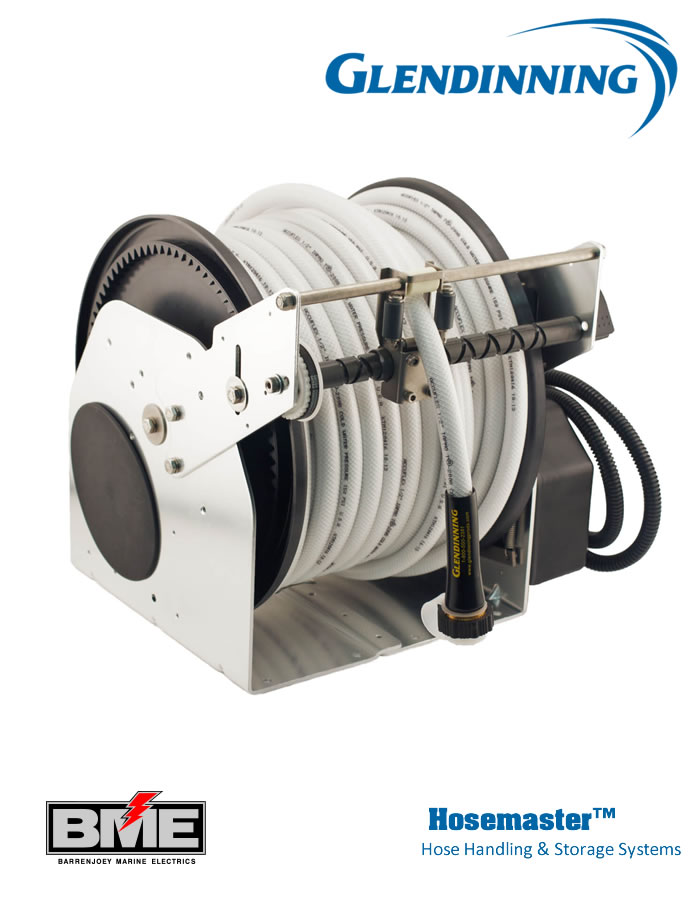

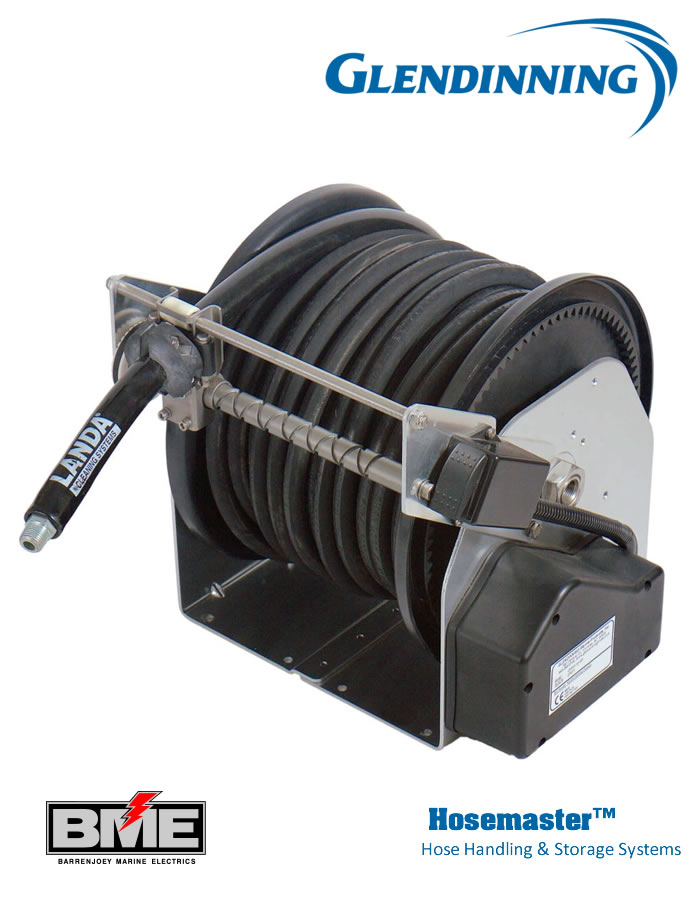

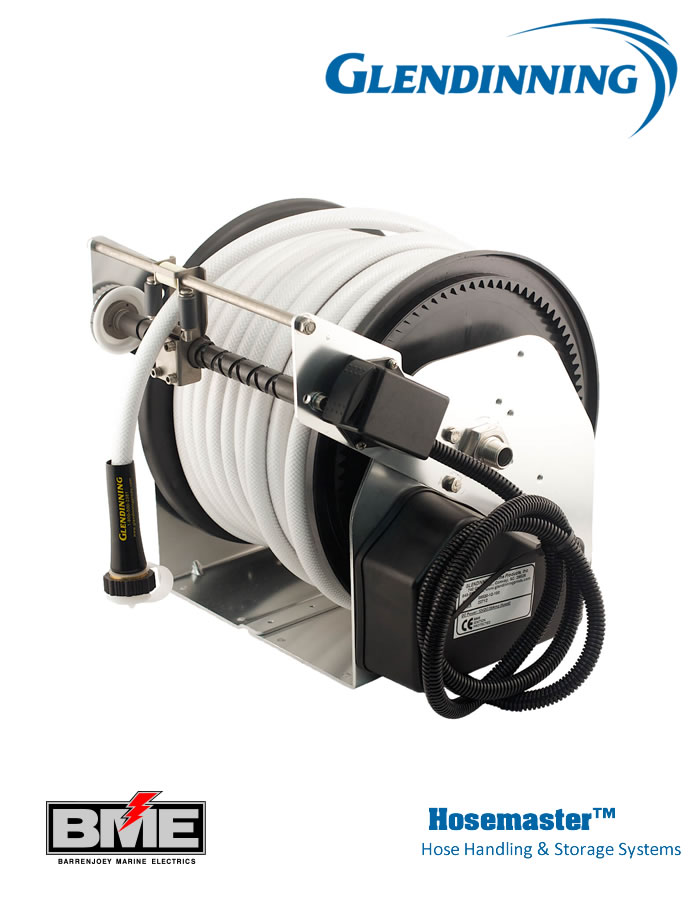

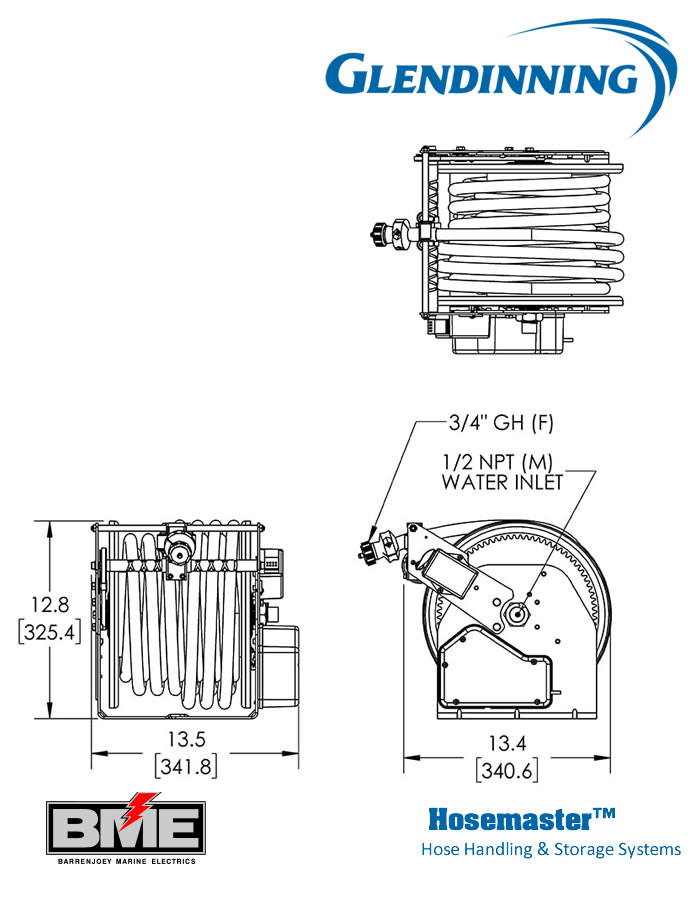

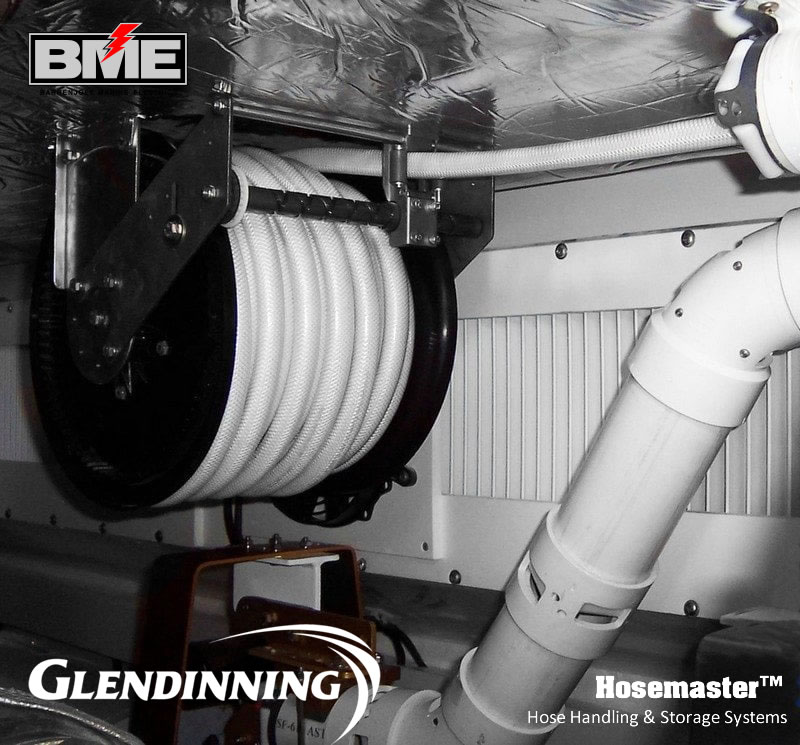

Glendinning Hosemaster Model LW
- Manual pull out, motorized retraction & storage
- “Zero-effort” pull out technology – no spring to overcome
- Integrated level wind guide roller for optimized storage capacity
- Water & High Pressure Hose models available
- Hose Types: Water
- Hose Length: 30.5m
- Hose ID: 1/2″ – 5/8″
- Input Voltage: 12 or 24 VDC
- Integrated level wind automatically retracts hose the most compact way possible
- Retract and store your water hose with ease
- Easily pull out as much hose as you need
- Store your water hose in the most compact way
- Simple installation using mounting brackets and templates
- Built to provide years of maintenance free use in any environment. Manufactured from stainless steel, aluminum, and reinforced plastic
- Approvals: Potable water approved, Hose: NSF61, conforms to TS-25
Customizable Features
- Model LW is currently manufactured with water and pressure washer hose, but reels can be designed to handle a variety of different hoses
- Designed to handle hose with a 1/2″ & 5/8″ outside diameter
- Can handle up to 100 feet of hose (1/2″), dependant on diameter
- Available for both 12 & 24 VDC setups
- Optional Remote Control Available
- Variety of installation mounting options available
- Variety of water hose nozzles and accessories available

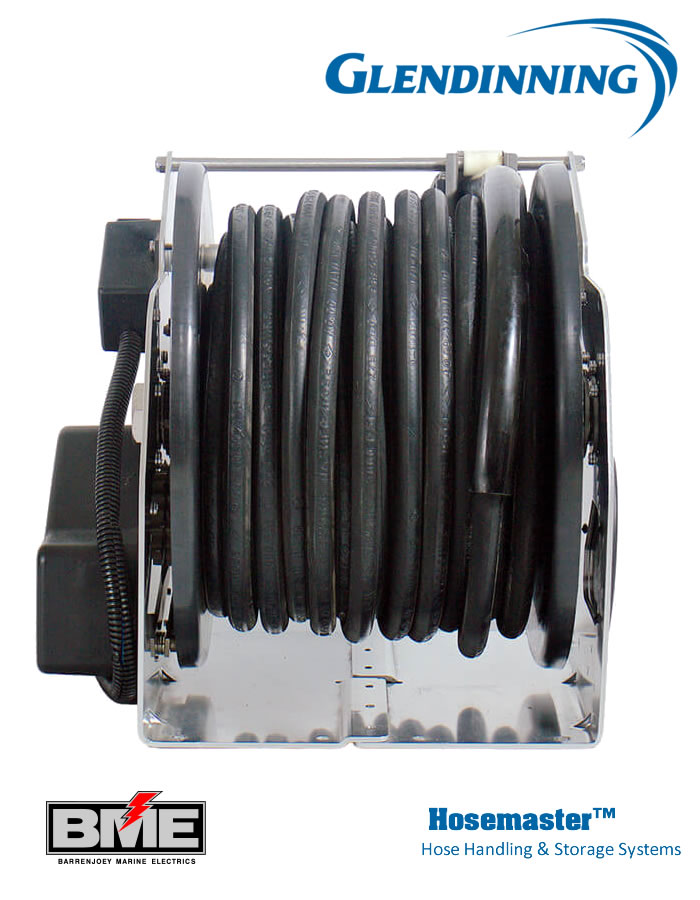

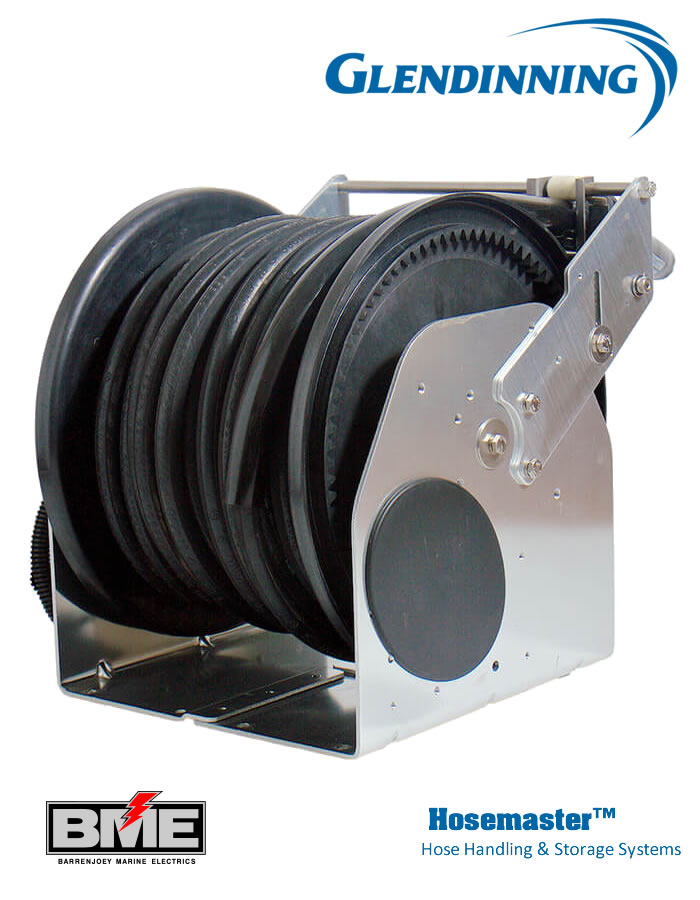

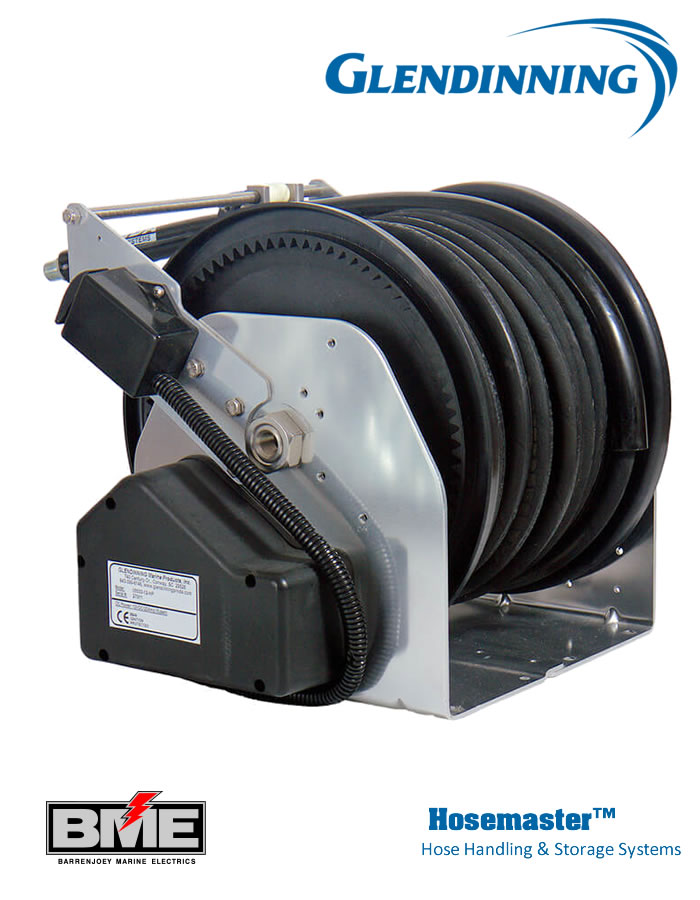

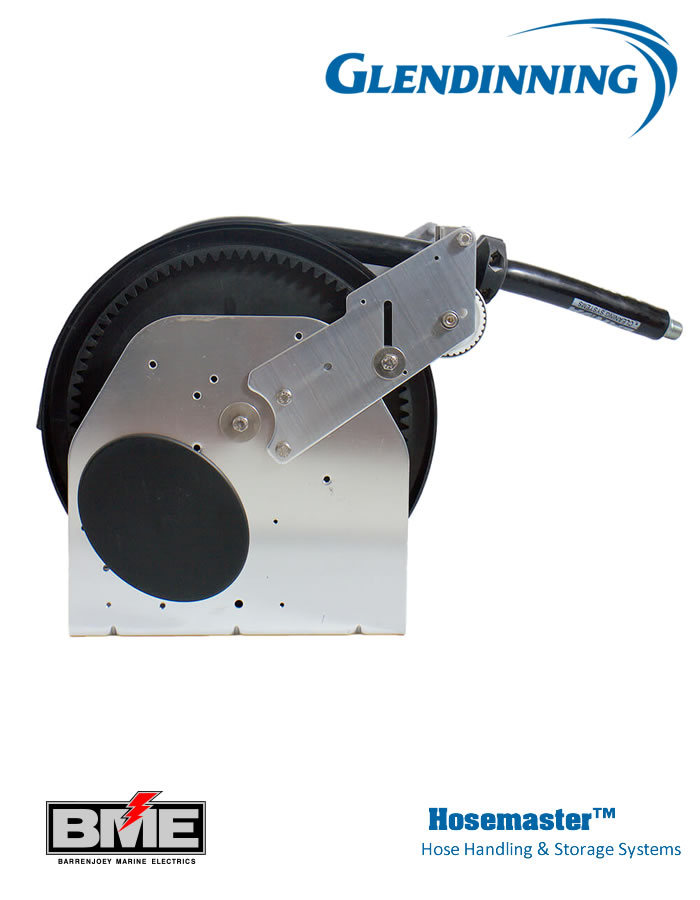

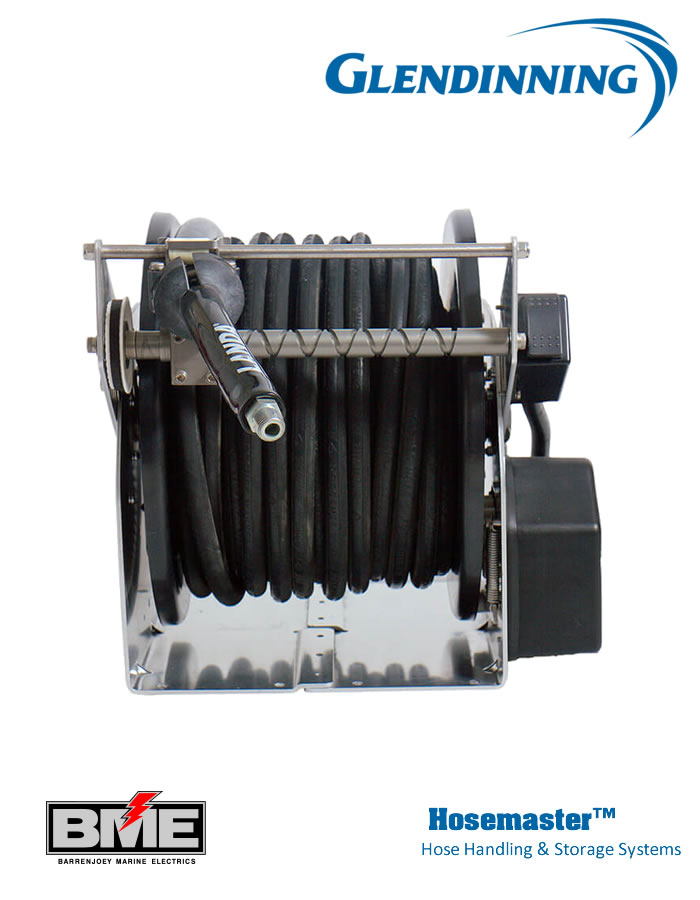

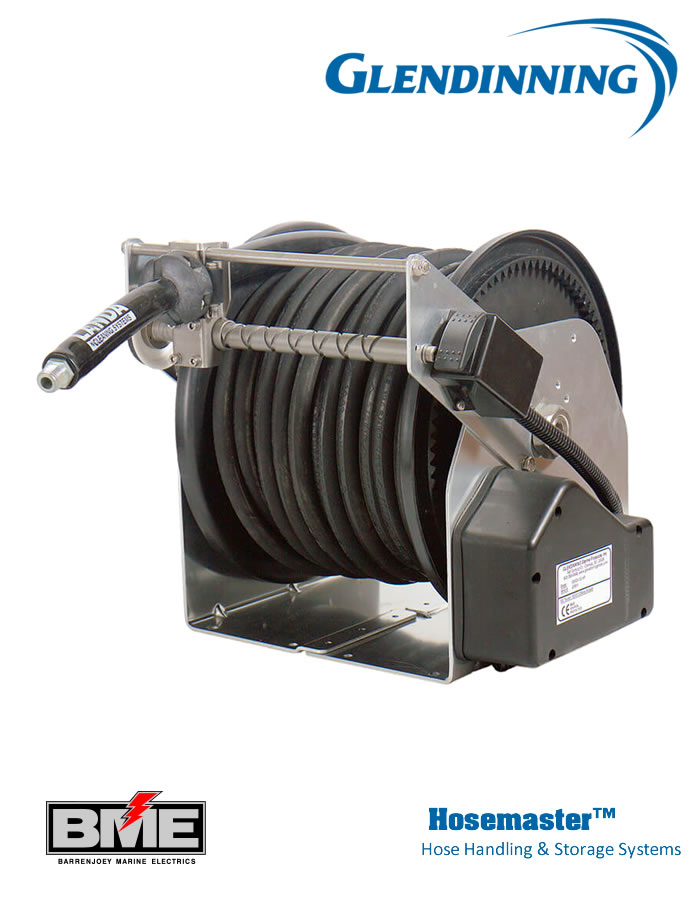

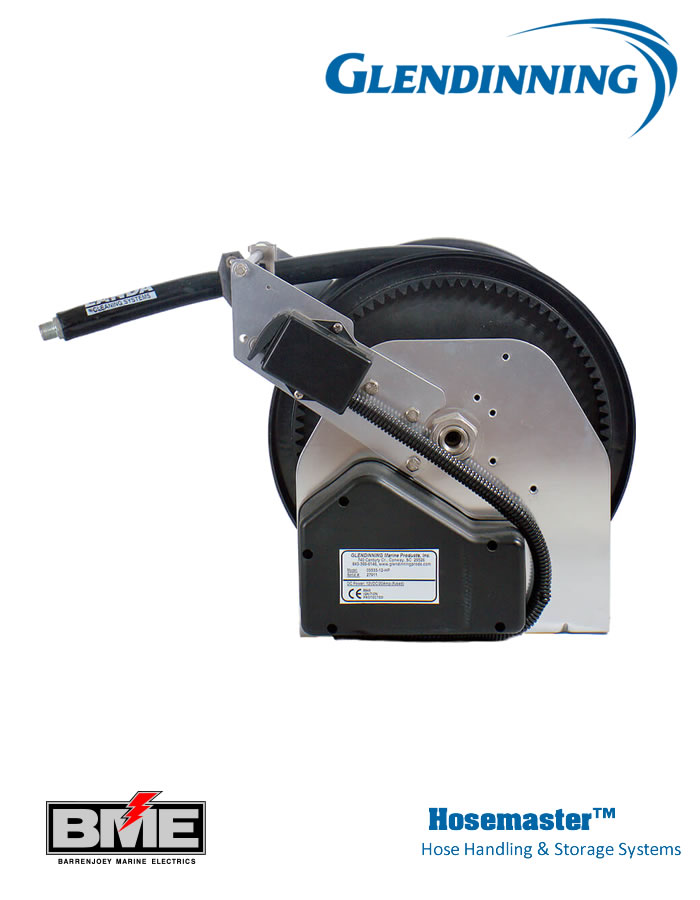

Glendinning Hosemaster Model PW
- Hose Types: Pressure Washer
- Hose Length: Up to 100′ (30.5m)
- Hose ID: 3/8″
- Input Voltage: 12 or 24 VDC
- Integrated level wind automatically retracts hose the most compact way possible
- Retract and store your pressure washer hose with ease
- Easily pull out as much hose as you need
- Store your water hose in the most compact way
- Simple installation using mounting brackets and templates
- Built to provide years of maintenance free use in any environment. Manufactured from stainless steel, aluminum, and reinforced plastic
- Approvals: Potable water approved, Hose: NSF61, conforms to TS-25
- Hose Types: Water
- Hose Length: 30.5m
- Hose ID: 1/2″ – 5/8″
- Input Voltage: 12 or 24 VDC
Customizable Features
- Currently manufactured with water and pressure washer hose, but reels can be designed to handle a variety of different hoses
- Designed to handle hose with a 1/4″ to 5/8″ outside diameter
- Reel Capacity: Up to 100′ (30.5m) of .68″ dia. (17.3 mm) OD hose

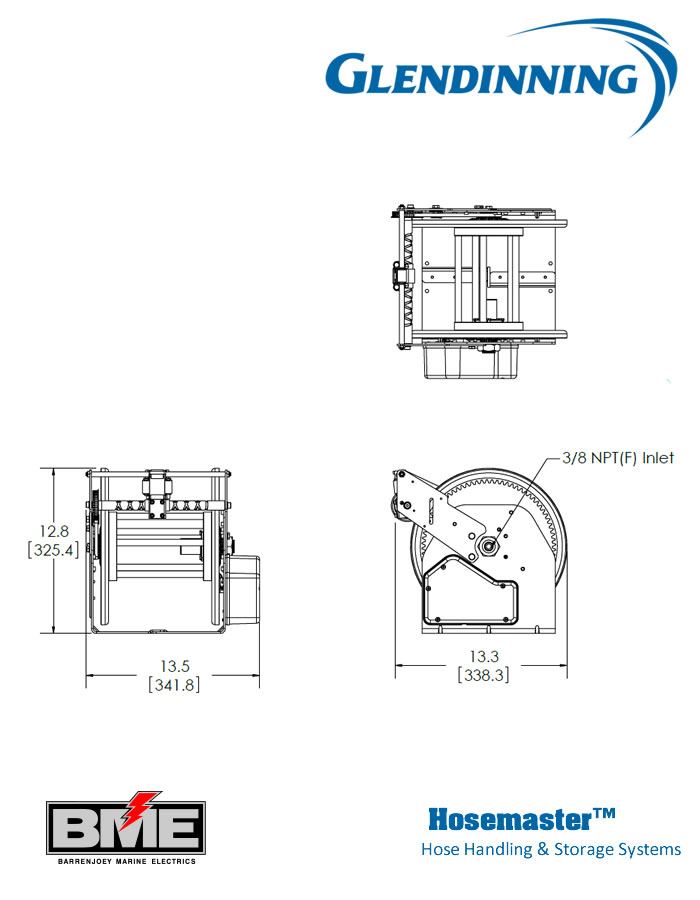

- Hose Connection: 3/8″ NPT(F) Inlet and Outlet
- Available for both 12 & 24 VDC setups
- Optional Remote Control Available
- Variety of installation mounting options available
