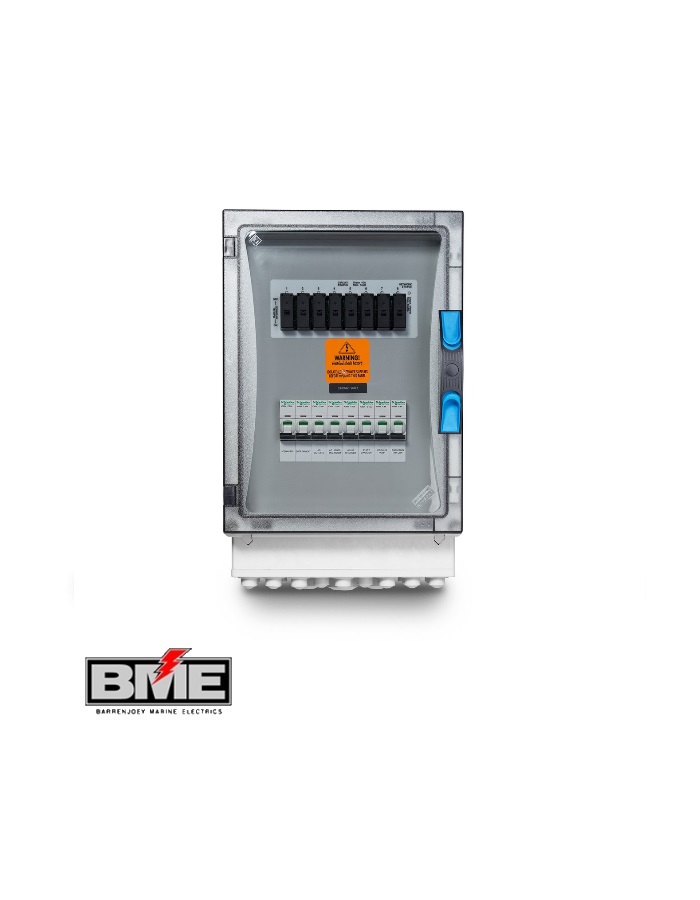

CZone ACOI Output Interface 230V

Searching for a simplified way to network, monitor and control onboard AC circuits? The AC Output Interface does it all and provides circuit protection for onboard AC devices. It is easy to install, configure and operate the digital control system with pre-wired components for quick connections.

This is a fully customised solution to suit unique installation and application needs, including ‘night operation’ as well as control at multiple locations. It has eight outputs (up to 50 A each), supports multiple pole designs and two separate buss feeds. To facilitate things, status LEDs and manual bypass are located right at the enclosure.

ACOI STANDARD

• Full automation of available supply selection.
• Eight outputs, maximum of 50 amp each.
• Provides circuit protection and control.
• Circuit status and run current displayed for each circuit.
• Status of LEDs at enclosure.
• Customisable to suit installation requirements.
• Manual bypass at enclosure.
• Pre-wired for quick connection.
• Option to use MCB/RCD’s.
• Staggered start-up of loads.
• Timers.
• 110 V, 240 V, 110/220 V.
• 50 or 60 Hz.
• Supports multiple pole designs, i.e. double, triple, four pole.
• IPX5 enclosure.
• Utilises standard DIN rail mounted components for circuit protection and control.
• Can support two separate bus feeds i.e. 2 load groups in one box.
• Delayed activation of circuits, to allow generators to come up to speed.

CZone ACOI Interface 230V Specifications

• 430 x 276 x 186 mm (16.9 x 10.9 x 7.3 inch)
