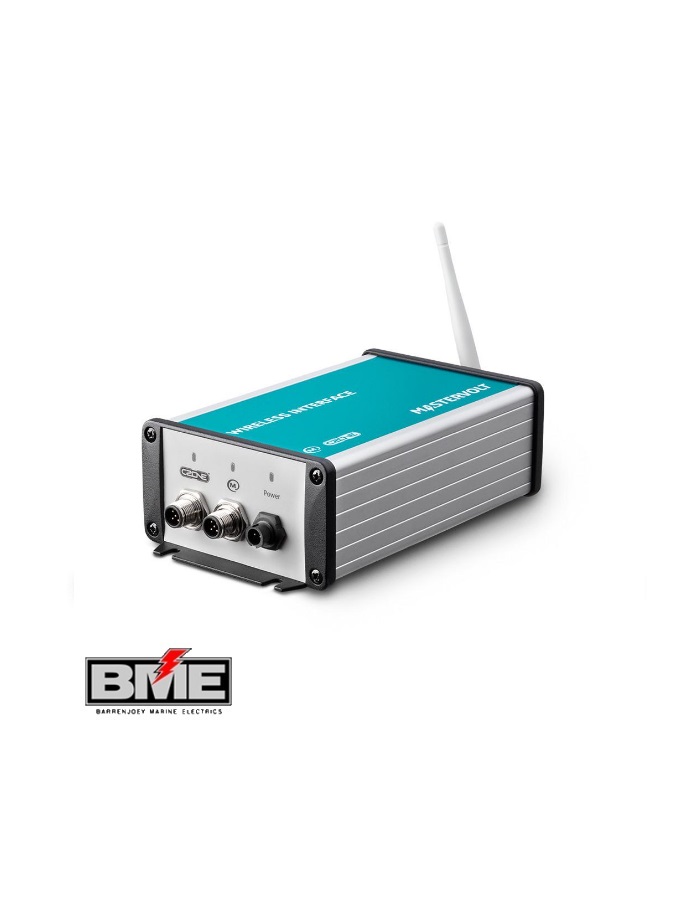

CZone Wireless Interface

CZone Wireless Interface Mastervolt has produced a Wireless Interface that allows your iPad to interface with an onboard digital switching system for full monitoring and control of the electrical equipment via a clear and intuitive display. The interface acts as a hub for the seamless connection between the two popular Digital Switching protocols of MasterBus and CZone. Features

• User-friendly homepage to monitor and control onboard circuits.
• Integrated control and monitoring of power products including battery chargers and inverters.
• Monitor AC/DC power and batteries.
• Monitor tank levels.
• Receive visible alarms.
• Connect a maximum of three devices simultaneously.
• Ability to personalise homepage to display favourite circuits, modes & monitoring.
• Customise your layout.

Hardware

• The Wireless Interface acts as the hub between MasterBus/CZone networks and local WiFi devices.
• NOTE: WI MasterBus connector required for MasterBus connection (product code 80-911-0095-00).
• Ethernet connection to connect to other LANs.
• USB connection for configuration updates.
• Power cable and aerial included

CZone Wireless Interface Specifications

---

• MasterBus powering: no
• Dimensions, hxwxd: 105 x 190 x 60 mm (4.1 x 7.5 x 2.4 inch)
• Weight: 0.685 kg
• Delivered with: power cable, WiFi antenna, USB extension cable, user’s manual
• Protection degree: IP54
