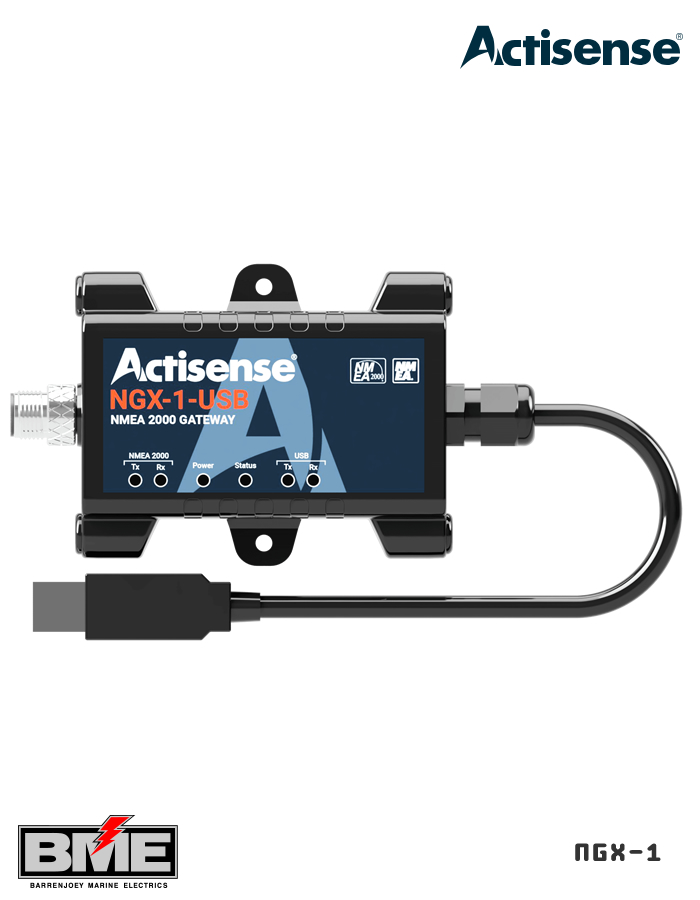

Full control and visibility of your vessel data using the NGX-1
- View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.
- View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway.
- Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).
- Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.
- Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.
Features
- Vital NMEA 2000 diagnostic tool
- USB version is fully isolated to prevent dangerous ground loops
- ISO version has OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422
- Up to 230,400 baud data transfer rate
- Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
- Supports Fast Heading at 10Hz
- Multiple diagnostic LEDs
Benefits
- Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
- Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
- Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
- Configure and flash-update Actisense products on the bus
- Upgrade NMEA 0183 equipment to NMEA 2000
- Allow NMEA 0183 devices to receive vital NMEA 2000 data
- Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
- Reliable, renowned bi-directional conversion engine
- Supports a wide range of conversions including AIS
- Easily configurable using Actisense Toolkit
Specifications
Power Supply (NGX-1-ISO / NGX-1-USB) | |
| Supply Voltage (NMEA 2000 Port) | 9 to 30V DC |
| Supply Current (NMEA 2000 Port) | 62mA @ 9V DC |
| Load Equivalent Number (LEN) | 2 |
Power Supply (USB Variants) | |
| Supply Voltage (NMEA 2000 Port) | 9 to 30V DC |
| Supply Current (USB Host Port) | 10mA @ 5V DC |
| Supply Current (NMEA 2000 Port) | 62mA @ 9V DC |
| Load Equivalent Number (LEN) | 2 |
NMEA 2000 Port (NGX-1-ISO / NGX-1-USB) | |
| Speed / Baud Rate | 250kbps |
| Connectivity | M12 Male (A coded) |
ISO Port (NGX-1-ISO) | |
| Compatibility | Full NMEA 0183, RS232 & RS422 compatibility. RS485 Listener compatible |
| Speed/Baud Rate | 4800 to 230400 Baud |
| Output Voltage Drive | >= 2.1V (differential) into 100Ω |
| Output Current Drive | 20mA max. |
| Output Protection | Short circuit and ESD |
| Input Voltage Tolerance | -15V to +15V continuous -35V to +35V short term (< 1 second) |
| Input Protection | Current limited and overdrive protection to 40VDC |
| Connectivity | 5mm stripped and tinned wire |
| Cable Length | 0.75m |
USB Port (USB Variant) | |
| Compatibility | USB 1.1, 2.0 and 3.0 |
| Speed / Baud Rate | 4800 to 230400 Baud |
| Connectivity | Male type A plug moulded onto cable |
| Cable Length | 1.8m |
Isolation | |
| NMEA 2000 Port to ISO Port | Uses IsoDriveTM, Hi-Pot tested to 1000V |
| NMEA 2000 Port to USB Port | Galvanic Isolation, Hi-Pot tested to 1000V |
Mechanical | |
| Housing Material Body | Flame retardant Polycarbonate |
| Housing Material End Caps | Flame retardant PBT |
| Weight NGX-1-ISO | 112g |
| Weight NGX-1-USB | 113g |
Approvals and Certifications | |
| NMEA 2000 | NMEA 2000 Certified |
| NMEA 0183 | Meets IEC 61162-1 & 61162-2 Requirements |
| RoHS and REACH | Compliant |
| Module Certification | KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE |
| EMC | EN 60945:2002 Edition 4 (section 9.3) EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 EN 300 328 V2.2.2 Radiated Spurious Emissions FCC Part 15b ICES-003 Iss 7 |
| Environmental Protection | IP67 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -30°C to +70°C |
| Recommended Humidity | 0 to 93% RH @ 40°C |
| Guarantee | 3 years, extended to 5 years upon registration |
Download NGX-1 Manual
Click here to download Actisense NGX-1 Dual Gateway Manual
