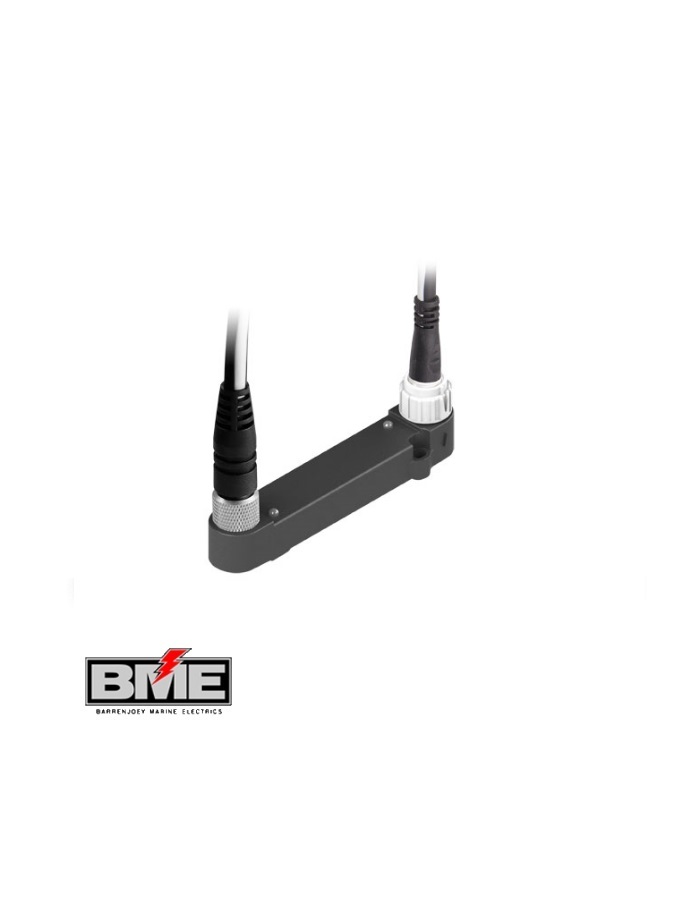

Raymarine ECI 100 Universal Engine and Control Interface

Raymarine ECI 100 Universal Engine and Control Interface

The Raymarine ECI-100 Universal Engine and Control Interface is an innovative and affordable solution for bridging engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems.

A simple isolated CAN Bus solution, the ECI-100 offers reliable integration with Raymarine’s latest generation of multifunction displays and also delivers a seamless autopilot steering interface to Raymarine’s Evolution EV-2 Drive-by-Wire autopilot system.

Features

• Affordable and uncomplicated solution eliminates the need for multiple engine and autopilot gateways.
• Easy access to customisable displays to show engine performance data, fuel consumption, alarms and much more.
• View engine information displays on your smart phone or tablet with Raymarine mobile apps.
• Simple to install ECI-100 makes engine and navigation integration a reality for virtually any size vessel.

ECI 100 Universal Engine and Control Specifications

• Dimensions (L x H x D): 109.2 x 21.35 x 30.2 mm (4.29 x 0.84 x 1.18 in)
• Nominal power supply: 12 V dc
• Operating voltage range: 10.8V to 31.2V dc
• Power consumption: 3.6W (maximum)
• Current: 10mA
• Fuse/breakers: 5A
• Load equivalency number: 1
• Operating temperature: -20º to +55ºC (+4ºF to 131ºF)
• Storage temperature: -30 Celsius to +70 Celsius (-22F to 158F)
• Relative humidity: 95%
• Waterproofing: IPX6
