Enerdrive DC Converters W/ Galvanic Isolation The ePOWER DC to DC galvanic isolation converters are interference free resulting in stable, reliable and efficient power supply. These compact and rugged units omit little heat making them safe and convenient for installation where space is hard to come by.
Enerdrive’s DC to DC galvanic isolation converters use Switch Mode technology with protection against over-current / overload, over-heating, over-voltage and reverse polarity connection.
With decades of industry experience, Barrenjoey Marine Electrics is able to recommend and customise the best converter unit for your application and budget. As well as providing products, we are also able to provide you with an inclusive and comprehensive installation service. Need our help? Give us a call today. Applications
- Recreational vehicles
- Commercial vehicles
- Industrial systems
- Communication vehicles
- Maritime applications
- Aviation applications

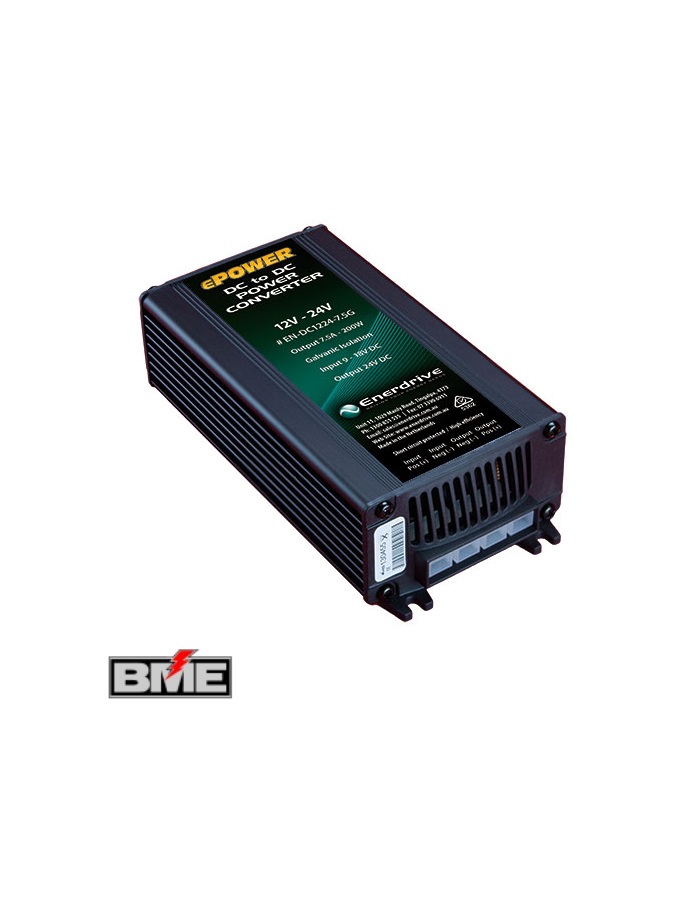

Enerdrive DC Converters W/ Galvanic Isolation Specifications
| EN-DC1224-7.5G | |
|---|---|
| Input (VDC) | 9 – 18 |
| Output (VDC) | 24 |
| Current (A) | 7.5 |
| Load (W) | 200 |
| Weight | 600g |
| Dimension LxWxH | 182mm x 88mm x 49mm |
[vc_separator]
| EN-DC2412-15G | |
|---|---|
| Input (VDC) | 20 – 35 |
| Output (VDC) | 12.5 |
| Current (A) | 15 |
| Load (W) | 200 |
| Weight | 600g |
| Dimension LxWxH | 182mm x 88mm x 49mm |
| EN-DC1224-12G | |
|---|---|
| Input (VDC) | 9 – 18 |
| Output (VDC) | 27.6 |
| Current (A) | 12 |
| Load (W) | 360 |
| Weight | 1400g |
| Dimension LxWxH | 160mm x 163mm x 64mm |
| EN-DC2412-25G | |
|---|---|
| Input (VDC) | 20 – 35 |
| Output (VDC) | 12.5 |
| Current (A) | 25 |
| Load (W) | 360 |
| Weight | 1400g |
| Dimension LxWxH | 160mm x 163mm x 64mm |
| EN-DC1224-12.5G | |
|---|---|
| Input (VDC) | 9 – 18 |
| Output (VDC) | 24 |
| Current (A) | 12.5 |
| Load (W) | 360 |
| Weight | 1400g |
| Dimension LxWxH | 160mm x 163mm x 64mm |
