Mastervolt DC Master 12V Range

Mastervolt DC Master 12V Range The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available, including insulated and non-insulated models. Features

• Recreational and semi-professional use.
• Easy to install using included mounting bracket.
• Excellent price/performance ratio.
• Available in isolated and non-isolated version.

Mastervolt DC Master 12V Range Specifications

---

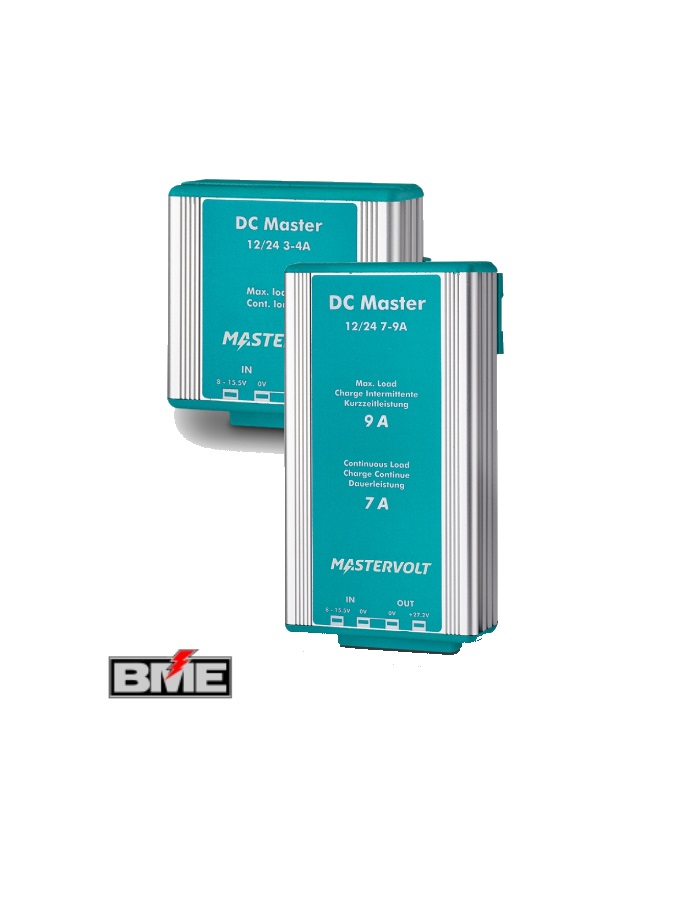

DC Master 12 to 24 3A

Nominal output voltage	27.2 V
Max. output power	109 W
Nominal output power	82 W
Max. output current (for 2 min. intervals)	4 A
Continuous output current	3 A
Nominal input voltage	12 V
Input voltage range (max.)	10-15.5 V DC (16 V)
Galvanic isolation	no
Stabilised	yes
Dimensions, hxwxd	89 x 87 x 50 mm 3.5 x 3.4 x 2.0 inch
Weight	0.30 kg 0.7 lb
Approvals	CE, E-mark

DC Master 12 to 24 7A

Nominal output voltage	27.2 V
Max. output power	245 W
Nominal output power	191 W
Max. output current (for 2 min. intervals)	9 A
Continuous output current	7 A
Nominal input voltage	12 V
Input voltage range (max.)	10-15.5 V DC (16 V)
Galvanic isolation	no
Stabilised	yes
Dimensions, hxwxd	167 x 87 x 50 mm 6.6 x 3.4 x 2.0 inch
Weight	0.64 kg 1.4 lb
Approvals	CE, E-mark
