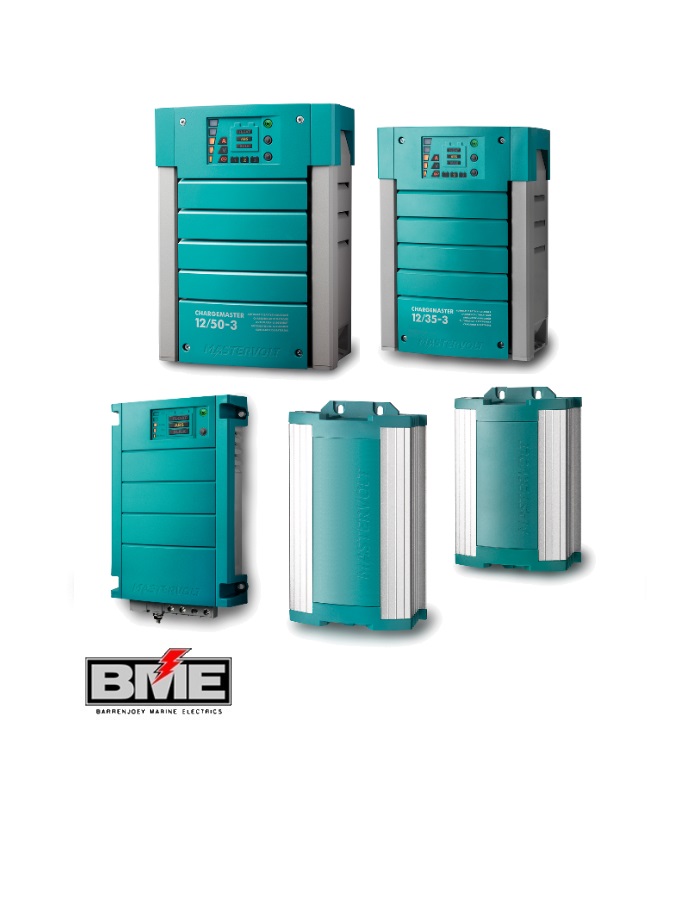

Mastervolt ChargeMaster 12v Make the most of your batteries with the ChargeMaster series, plugging in and charging anywhere in the world. Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. Thanks to Mastervolt’s innovative 3-step+ charging process, batteries also perform better and last longer.
All ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection (with the exception of the ChargeMaster 12/10, ChargeMaster 12/15-2 and ChargeMaster 24/6). What’s more, you have the option for central, local or remote monitoring, configuration and control of your system.
Robust Connections
Solid metal-to-metal connectors equipped with strain relief prevent corrosion and overheating.
Charging multiple battery banks
The ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two metres of cable for a plug & play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.
DC Power Supply
Even if the batteries are not connected, Mastervolt ChargeMaster battery chargers can provide a constant DC output allowing you to turn on lights or keep the fridge cold. Features
- For recreational and semi-professional use.
- Suitable for any type of battery, including Lithium Ion batteries.
- 3-Step+ charging technology for fast and complete charging, also charges depleted batteries.
- Memory function prevents overcharging in case of unreliable mains.
- Safe and complete charging due to standard safety features.
- Charging capacity up to 1000 Ah.
- Easy to connect and quick to install.
- Can charge multiple battery banks simultaneously.
- Built-in system functionality (MasterBus) in combination with other Mastervolt products.
- Clear control panel.
- Supplies your system without battery.
Mastervolt ChargeMaster 12v Specifications
[vc_column_inner width=””1/5 ChargeMaster 12/10
| Nominal output voltage | 12 V |
| Total charge current | 10 A at 14.25 V |
| Number of battery outlets | 1 |
| Battery capacity range | 25-100 Ah |
| Nominal input voltage | 230 V (180-265 V), 50/60 Hz |
| AC connection | connector |
| Power supply mode | no |
| Display/read-out | 1 LED |
| Fastening | 4x screw |
| Dimensions, hxwxd | 180 x 121 x 50 mm 7.1 x 4.8 x 2.0 inch |
| Weight | 1 kg 2.2 lb |
| Approvals | CE, ABYC A-31, RRR, e-mark |
[vc_separator][vc_column_inner width=””1/5 ChargeMaster 12/15-2
| Nominal output voltage | 12 V |
| Total charge current | 15 A at 14.25 V |
| Number of battery outlets | 2 |
| Charge current second output | 15 A |
| Battery capacity range | 30-150 Ah |
| Nominal input voltage | 230 V (180-265 V), 50/60 Hz |
| AC connection | connector |
| Power supply mode | no |
| Display/read-out | 1 LED |
| Fastening | 4x screw |
| Dimensions, hxwxd | 206 x 121 x 50 mm 8.1 x 4.8 x 2.0 inch |
| Weight | 1 kg 2.2 lb |
| Approvals | CE, ABYC A-31, RRR |
ChargeMaster 12/25-3
| Nominal output voltage | 12 V |
| Total charge current | 25 A at 13.25 V |
| Number of battery outlets | 3 |
| Charge current second output | 25 A |
| Charge current third output | 25 A |
| Battery capacity range | 50-250 Ah |
| Nominal input voltage | 120/230 V (90-265 V), 50/60 Hz |
| AC connection | 2 mtr AC cable |
| Power supply mode | yes |
| Display/read-out | LED display |
| Fastening | 4x screw |
| Dimensions, hxwxd | 234 x 132 x 60 mm 9.2 x 5.2 x 2.4 inch |
| Weight | 1.8 kg 4.0 lb |
| Approvals | CE, ABYC A-31, SAE J1171/ISO 8846 ignition protected, RRR |
[vc_separator][vc_column_inner width=””1/5 ChargeMaster 12/35-3
| Nominal output voltage | 12 V |
| Total charge current | 35 A at 14.4 V |
| Number of battery outlets | 3 |
| Charge current second output | 35 A |
| Charge current third output | 35 A |
| Battery capacity range | 70-350 Ah |
| Nominal input voltage | 120/230 V (90-265 V), 50/60 Hz |
| AC connection | connector strips |
| Power supply mode | yes |
| Display/read-out | LED display |
| Fastening | mounting bracket (included) or 4x screw mounting |
| Dimensions, hxwxd | 291 x 210 x 131 mm 11.5 x 8.3 x 5.2 inch |
| Weight | 4 kg 8.8 lb |
| Approvals | CE, ABYC A-31, SAE J1171/ISO 8846 ignition protected, RMRS, RRR |
ChargeMaster 12/50-3
| Nominal output voltage | 12 V |
| Total charge current | 50 A at 14.4 V |
| Number of battery outlets | 3 |
| Charge current second output | 50 A |
| Charge current third output | 50 A |
| Battery capacity range | 100-500 Ah |
| Nominal input voltage | 120/230 V (90-265 V), 50/60 Hz |
| AC connection | connector strips |
| Power supply mode | yes |
| Display/read-out | LED display |
| Fastening | mounting bracket (included) or 4x screw |
| Dimensions, hxwxd | 291 x 210 x 131 mm 11.5 x 8.3 x 5.2 inch |
| Weight | 4 kg 8.8 lb |
| Approvals | CE, ABYC A-31, SAE J1171/ISO 8846 ignition protected, RMRS, RRR |
