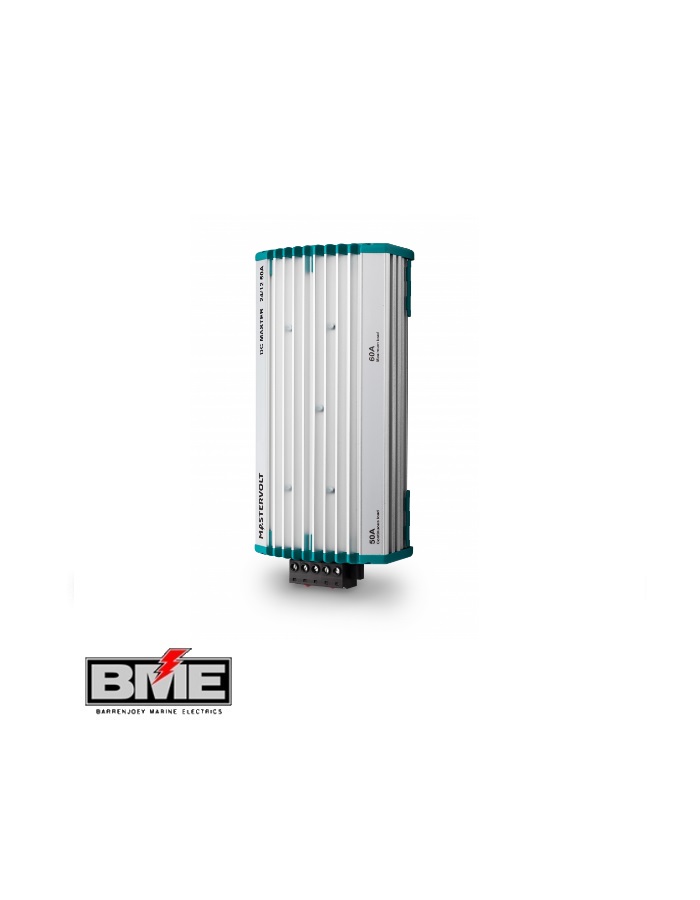

“Mastervolt DC Master 24v Range The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer. There is a wide range of DC Master converters available, including insulated and non-insulated models. Features
- Recreational and semi-professional use.
- Easy to install using included mounting bracket.
- Excellent price/performance ratio.
- Available in isolated and non-isolated version.
Mastervolt DC Master 24v Range Specifications
DC Master 24/12-3
| Nominal output voltage | 13.6 V |
| Max. output power | 82 W |
| Nominal output power | 41 W |
| Max. output current (for 2 min. intervals) | 6 A |
| Continuous output current | 3 A |
| Nominal input voltage | 24 V |
| Input voltage range (max.) | 20-32 V DC (35 V) |
| Galvanic isolation | no |
| Stabilised | yes |
| Dimensions, hxwxd | 67 x 87 x 50 mm 2.6 x 3.4 x 2.0 inch |
| Weight | 0.20 kg 0.4 lb |
| Approvals | CE, E-mark |
DC Master 24/12-6
| Nominal output voltage | 13.6 V |
| Max. output power | 136 W |
| Nominal output power | 82 W |
| Max. output current (for 2 min. intervals) | 10 A |
| Continuous output current | 6 A |
| Nominal input voltage | 24 V |
| Input voltage range (max.) | 20-32 V DC (35 V) |
| Galvanic isolation | no |
| Stabilised | yes |
| Dimensions, hxwxd | 89 x 87 x 50 mm 3.5 x 3.4 x 2.0 inch |
| Weight | 0.25 kg 0.6 lb |
| Approvals | CE, E-mark |
DC Master 24/12-12
| Nominal output voltage | 13.6 V |
| Max. output power | 245 W |
| Nominal output power | 164 W |
| Max. output current (for 2 min. intervals) | 18 A |
| Continuous output current | 12 A |
| Nominal input voltage | 24 V |
| Input voltage range (max.) | 20-32 V DC (35 V) |
| Galvanic isolation | no |
| Stabilised | yes |
| Dimensions, hxwxd | 127 x 87 x 50 mm 5.0 x 3.4 x 2.0 inch |
| Weight | 0.405 kg 0.9 lb |
| Approvals | CE, E-mark |
DC Master 24/12-24
| Nominal output voltage | 13.6 V |
| Max. output power | 408 W |
| Nominal output power | 326 W |
| Max. output current (for 2 min. intervals) | 30 A |
| Continuous output current | 24 A |
| Nominal input voltage | 24 V |
| Input voltage range (max.) | 20-32 V DC (35 V) |
| Galvanic isolation | no |
| Stabilised | yes |
| Dimensions, hxwxd | 167 x 87 x 50 mm 6.6 x 3.4 x 2.0 inch |
| Weight | 0.62 kg 1.4 lb |
| Approvals | CE, E-mark |
DC Master 24/12-50
| Nominal output voltage | 13.6 V |
| Max. output power | 720 W |
| Nominal output power | 500 W |
| Max. output current (for 2 min. intervals) | 60 A |
| Continuous output current | 50 A |
| Nominal input voltage | 24 V |
| Input voltage range (max.) | 20-32 V DC (35 V) |
| Galvanic isolation | no |
| Stabilised | yes |
| Dimensions, hxwxd | 283 x 125 x 74 mm 11.1 x 4.9 x 2.9 inch |
| Weight | 1.8 kg 4.0 lb |
| Approvals | CE, E-mark |
