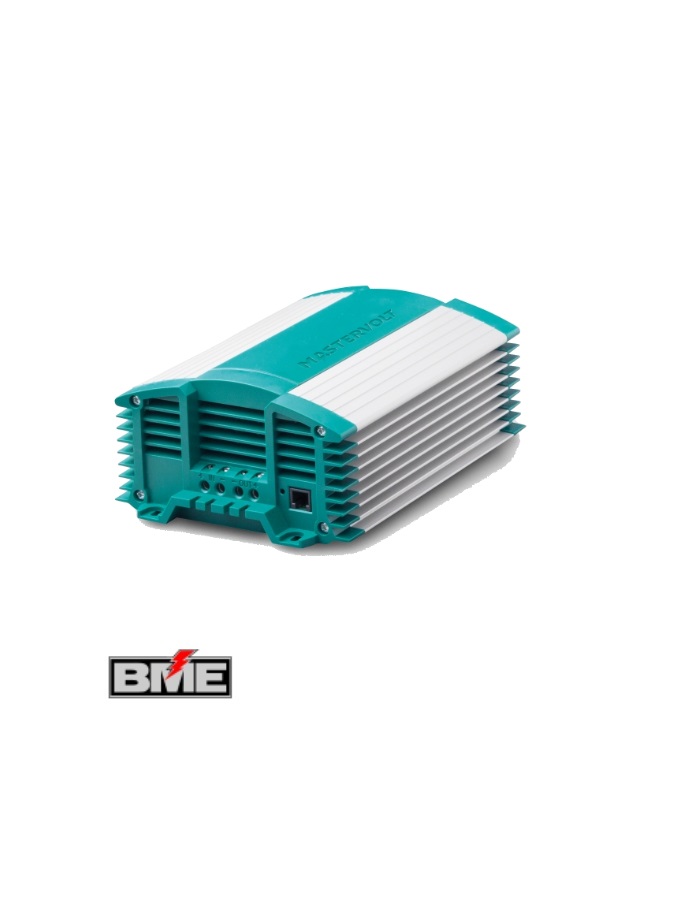

Mastervolt Magic DC Converter Range The Magic models can regulate the voltage both up and down to ensure an optimal voltage stabilisation, even when the battery voltage fluctuates due to heavy loads. The galvanic isolation between input and output prevents disruptions to, for instance, communication equipment.
Energy-saving dimmer function
Many standard light dimmers convert part of the energy to heat and also lose unnecessary energy. The Magic converters regulate the power supply efficiently and without excessive heat build-up, for optimal safety (multiple converters can be used for multiple lamps).
Parallel operation
Lots of consumers on board?
The parallel configuration of several units will provide you over 100 amperes. Advanced high-frequency technology with modern microprocessors ensures minimum power loss when switching from 24 to 12 V and vice versa.
For the toughest tasks
The Magic DC-DC converters are designed for the toughest conditions for professional, semi-professional and recreational purposes. Even under the most extreme conditions, these DC-DC converters operate faultlessly, giving you round-the-clock output when necessary.
The sustainability and technologies that underpin the Mastervolt concept have long been proven in practice. With an MTBF of 280,000 hours at full capacity and 24/7 use, the DC-DC converters are ideal for the toughest tasks and any situation that requires a reliable power supply. Features
- Professional use.
- Converter and 3-step battery charger.
- Parallel switchable.
- Adjustable and programmable output voltage.
- Voltage stabilisation for a longer lifespan of halogen lights, etc.
- Dimmer function for Mac & Magic models.
The isolated Magic models provide galvanic isolation between input and output circuits.
Features:
- Extra touch-proof.
- Interference suppression for sensitive equipment.
- Available with negative or positive grounding.
Mastervolt Magic DC Converter Range Specifications
Magic 24/12-20
| Output voltage | 10-15 |
| Nominal output voltage | 13.6 V |
| Output voltage dimmer (adjustable with MasterAdjust) | 4-13 V |
| Output voltage stabilisation | 2 % at extremes of temperatures, load and input |
| Output voltage ripple (peak peak) | max. 1 % |
| Max. output power | 300 W |
| Nominal output power | 300 W |
| Max. output current | 20 A |
| Output charge current (3-step mode) | 16 A |
| Nominal input voltage | 24 V |
| Input voltage range | 19-32 V |
| Input voltage range (3-step charge mode) | 24-32 V |
| Lower input set point (adjustable with MasterAdjust) | 20 V |
| Delay lower input set point (adjustable with MasterAdjust) | 30 sec. |
| Galvanic isolation | yes |
| Voltage limited | yes |
| Efficiency | > 90 % (at nom. input voltage, full load); peak 92 % |
| Parallel configuration | yes |
| Dimmer function | yes, by external momentary switch via fast-on connection, to be activated by DIP switch setting |
| Alarm contact | yes (fast-on connector) |
| Dimensions, hxwxd | 227 x 154 x 81 mm 8.9 x 6.1 x 3.2 inch |
| Weight | 1.8 kg 4.0 lb |
| Approvals | CE |
Magic 24/24-20
| Output voltage | 20-28.5 |
| Nominal output voltage | 27.2 V |
| Output voltage dimmer (adjustable with MasterAdjust) | 8-26 V |
| Output voltage stabilisation | 2 % at extremes of temperatures, load and input |
| Output voltage ripple (peak peak) | max. 1 % |
| Max. output power | 580 W |
| Nominal output power | 580 W |
| Max. output current | 20 A |
| Output charge current (3-step mode) | 16 A |
| Nominal input voltage | 24 V |
| Input voltage range | 19-32 V |
| Input voltage range (3-step charge mode) | 24-32 V |
| Lower input set point (adjustable with MasterAdjust) | 20 V |
| Delay lower input set point (adjustable with MasterAdjust) | 30 sec. |
| Galvanic isolation | yes |
| Voltage limited | yes |
| Efficiency | > 90 % (at nom. input voltage, full load); peak 92 % |
| Parallel configuration | yes |
| Dimmer function | yes, by external momentary switch via fast-on connection, to be activated by DIP switch setting |
| Alarm contact | yes (fast-on connector) |
| Dimensions, hxwxd | 227 x 154 x 81 mm 8.9 x 6.1 x 3.2 inch |
| Weight | 1.8 kg 4.0 lb |
| Approvals | CE |
Magic 12/12-20
| Output voltage | 10-15 |
| Nominal output voltage | 13.6 V |
| Output voltage dimmer (adjustable with MasterAdjust) | 4-13 V |
| Output voltage stabilisation | 2 % at extremes of temperatures, load and input |
| Output voltage ripple (peak peak) | max. 1 % |
| Max. output power | 300 W |
| Nominal output power | 300 W |
| Max. output current | 20 A |
| Output charge current (3-step mode) | 16 A |
| Nominal input voltage | 12 V |
| Input voltage range | 11-16 V |
| Input voltage range (3-step charge mode) | 12-16 V |
| Lower input set point (adjustable with MasterAdjust) | 10 V |
| Delay lower input set point (adjustable with MasterAdjust) | 30 sec. |
| Galvanic isolation | yes |
| Voltage limited | yes |
| Efficiency | > 90 % (at nom. input voltage, full load); peak 92 % |
| Parallel configuration | yes |
| Dimmer function | yes, by external momentary switch via fast-on connection, to be activated by DIP switch setting |
| Alarm contact | yes (fast-on connector) |
| Dimensions, hxwxd | 227 x 154 x 81 mm 8.9 x 6.1 x 3.2 inch |
| Weight | 1.8 kg 4.0 lb |
| Approvals | CE |
Magic 12/24-10
| Output voltage | 20-28.5 |
| Nominal output voltage | 27.2 V |
| Output voltage dimmer (adjustable with MasterAdjust) | 8-26 V |
| Output voltage stabilisation | 2 % at extremes of temperatures, load and input |
| Output voltage ripple (peak peak) | max. 1 % |
| Max. output power | 300 W |
| Nominal output power | 300 W |
| Max. output current | 10 A |
| Output charge current (3-step mode) | 8 A |
| Nominal input voltage | 12 V |
| Input voltage range | 11-16 V |
| Input voltage range (3-step charge mode) | 12-16 V |
| Lower input set point (adjustable with MasterAdjust) | 10 V |
| Delay lower input set point (adjustable with MasterAdjust) | 30 sec. |
| Galvanic isolation | yes |
| Voltage limited | yes |
| Efficiency | > 90 % (at nom. input voltage, full load); peak 92 % |
| Parallel configuration | yes |
| Dimmer function | yes, by external momentary switch via fast-on connection, to be activated by DIP switch setting |
| Alarm contact | yes (fast-on connector) |
| Dimensions, hxwxd | 227 x 154 x 81 mm 8.9 x 6.1 x 3.2 inch |
| Weight | 1.8 kg 4.0 lb |
| Approvals | CE |
“
