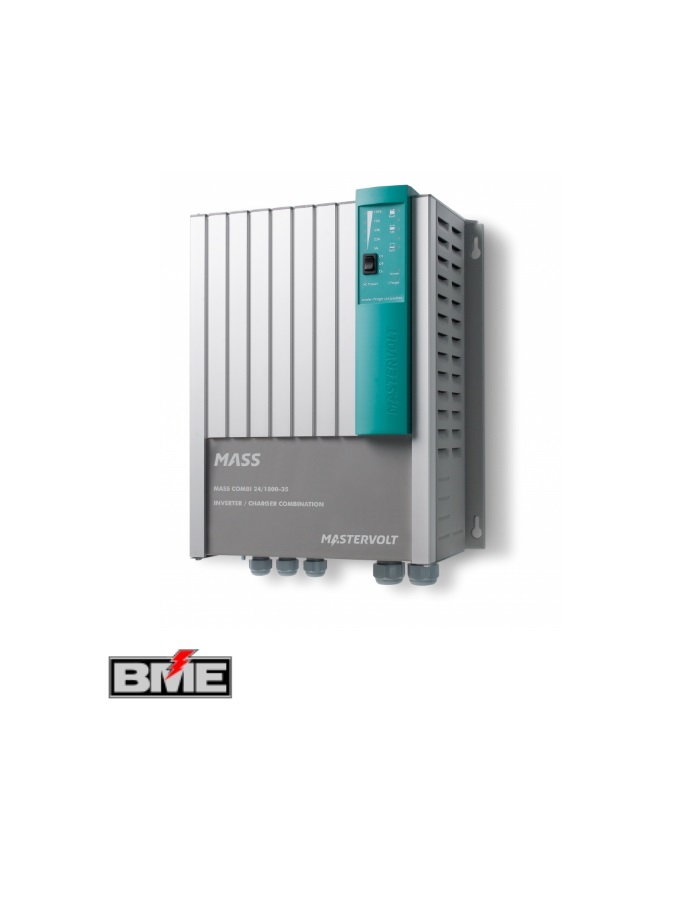

Mastervolt Mass Combi 24V Range A Mastervolt Mass Combi offers best price/quality ratio. The exceptionally reliable Mass Combi series offers a lot of power at a highly competitive price. In addition, the four models are also available in two customer-friendly variations with remote control or MasterBus.
The powerful 3-step+ battery charger guarantees maximum battery life and can simultaneously charge two battery banks. The inverter with high peak power starts even the heaviest loads, with the Mass Combi being easily sufficient for your espresso machine. A built-in distribution system switches between grid and inverter power, while two separate AC outputs allow users to connect critical loads to a preferred group.
Combi deal with MasterBus (MB version)
To integrate the Mass Combi into a MasterBus system in a simple manner, Mastervolt can deliver all Mass Combi models in a MasterBus version. The relevant product code includes the Mass Combi model of your choice, complemented by a MasterBus Combi interface.
Combi deal with remote control (Remote version)
In addition, Mastervolt can provide all Mass Combi models in a Remote version so that the AC and DC power status can be monitored remotely. The relevant product code includes the Mass Combi model of your choice, plus an ICC and an APC remote control panel. Features
- Compact, lightweight and no hum thanks to HF technology.
- High yield and more power from your batteries.
- Intelligent 3-step+ battery charger with low DC ripple current for fast charging times and long battery life.
- Charges two individual battery banks simultaneously.
- Quiet, powerful inverter with 200 % peak power.
- Power Assist: prevents blown fuses.
- Pure sine wave energy prevents failures and damage to sensitive equipment such as adapters.
- Dual AC outputs to separate critical equipment from heavy loads.
- Higher yields possible via parallel switching (only for 2200 and 2600 W models).
- Professional connections ensure fast installation and operational security.
- CE approved and E-marking for mobile applications.
Mastervolt Mass Combi 24V Range Specifications
Mass Combi 24/1800-35
| Nominal DC voltage | 24 V (19-31 V) |
| Output voltage | 230 V (± 5 %), adjustable 180-250 V |
| Output frequency | 50/60 Hz (± 0.05 %), configurable |
| Output waveform | true sine, Thd < 2.5 % under standard conditions |
| Continuous power at 25 °C / 77 °F, cos phi 1 | 1800 W |
| Max. peak load | 3000 W |
| Max. efficiency | ≥ 90 % |
| Max. ripple on DC (battery at full load) | < 5 % |
| No-load power consumption on DC (ON/inverter OFF/OFF) | 9 W / 0.1 W / 0 W / 0.5 W |
| Parallel configuration | no |
| 3-Phase configuration | no |
| Synchronise with mains/generator | yes |
Mass Combi 24/2600-60
| Nominal DC voltage | 24 V (19-31 V) |
| Output voltage | 230 V (± 5 %), adjustable 180-250 V |
| Output frequency | 50/60 Hz (± 0.05 %), configurable |
| Output waveform | true sine, Thd < 2.5 % under standard conditions |
| Continuous power at 25 °C / 77 °F, cos phi 1 | 2550 W |
| Max. peak load | 4000 W |
| Max. efficiency | ≥ 90 % |
| Max. ripple on DC (battery at full load) | < 5 % |
| No-load power consumption on DC (ON/inverter OFF/OFF) | 9 W / 0.1 W / 0 W / 0.5 W |
| Parallel configuration | yes, up to 2 units |
| 3-Phase configuration | no |
| Synchronise with mains/generator | yes |
Mass Combi 24/4000-60
| Nominal DC voltage | 24 V (19-31 V) |
| Output voltage | 120 V (± 5 %), adjustable 90-135 V |
| Output frequency | 60/50 Hz (± 0.05 %), configurable |
| Output waveform | true sine, Thd < 2.5 % under standard conditions |
| Continuous power at 25 °C / 77 °F, cos phi 1 | 3750 W |
| Max. peak load | 7500 W |
| Max. efficiency | ≥ 90 % |
| Max. ripple on DC (battery at full load) | < 5 % |
| No-load power consumption on DC (ON/inverter OFF/OFF) | 18 W / 0.2 W / 0 W / 1 W |
| Parallel configuration | no |
| 3-Phase configuration | no |
| Synchronise with mains/generator | yes |
