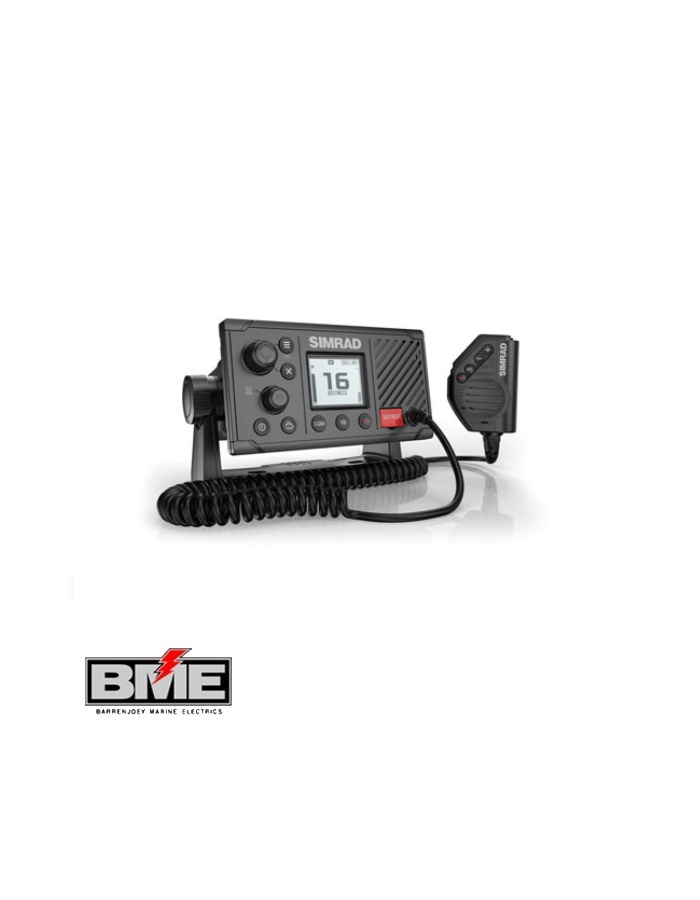

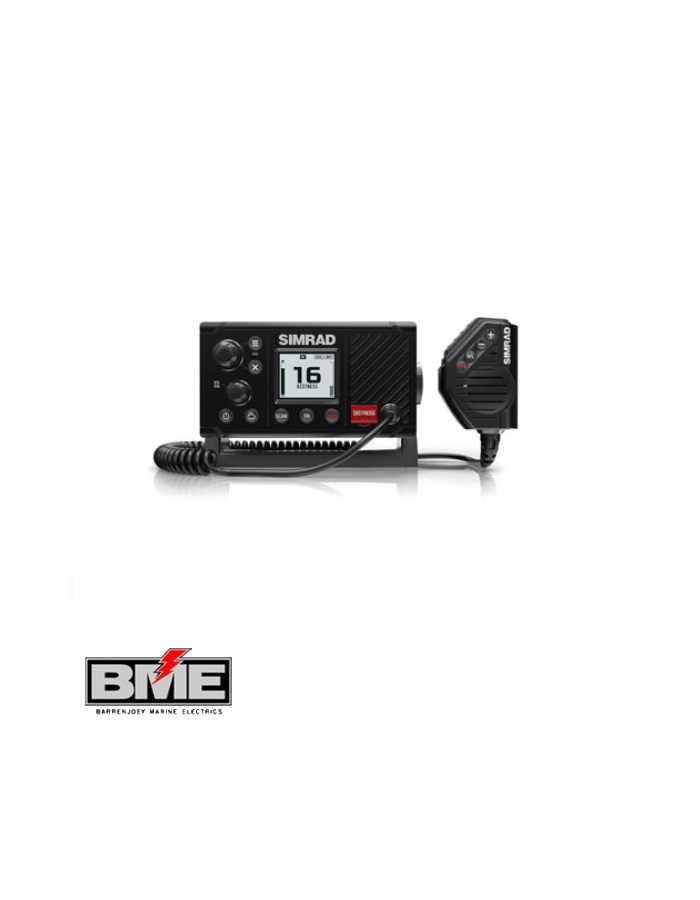

Simrad RS20 VHF Radio


Communicate clearly with this dependable Class D DSC Approved marine VHF radio

SKU: 000-13545-001 Categories: , Tags: , , Brand:

The versatile RS20 is ideal for a variety of boats from small RIBs to larger cruisers, and is designed to match the low-profile style of modern Simrad Glass Bridge displays and accessories.


  • High visibility LCD with inverted night mode
  • Intuitive rotary and keypad controls
  • Four-button fist microphone
  • Class D DSC Approved
  • NMEA 2000 compatible
  • Dedicated Channel 16 keys
  • Tri-channel watch function
  • All international channels
  • Multiple scan modes
  • Easy bracket or flush-mount installation

Simrad RS20 VHF Radio Specifications

  • Physical Dimensions: 165.9mmW x 88.9mmH x 159.4mmD
  • Voltage: 12vDC
  • Power Consumption: 450mA Standby, 6 Amp/1.5 Amp Transmit Hi/Low
  • NMEA Input Ports: NMEA 0183 – 2000
  • Mounting Options: Bracket Mount and Flush-mount
  • External Speaker option: Yes
  • Warranty: 2 Years
  • Frequency Range: Tx 156.025~157.425MHz
  • Frequency Range: Rx 156.050-163.275 MHz
  • Transmit Power: 25w HI, 1w LO
  • Digital Selective Calling (DSC): Yes
  • Dual Watch: Yes
  • Tri Watch: Yes
  • Programmable Scan: Yes
