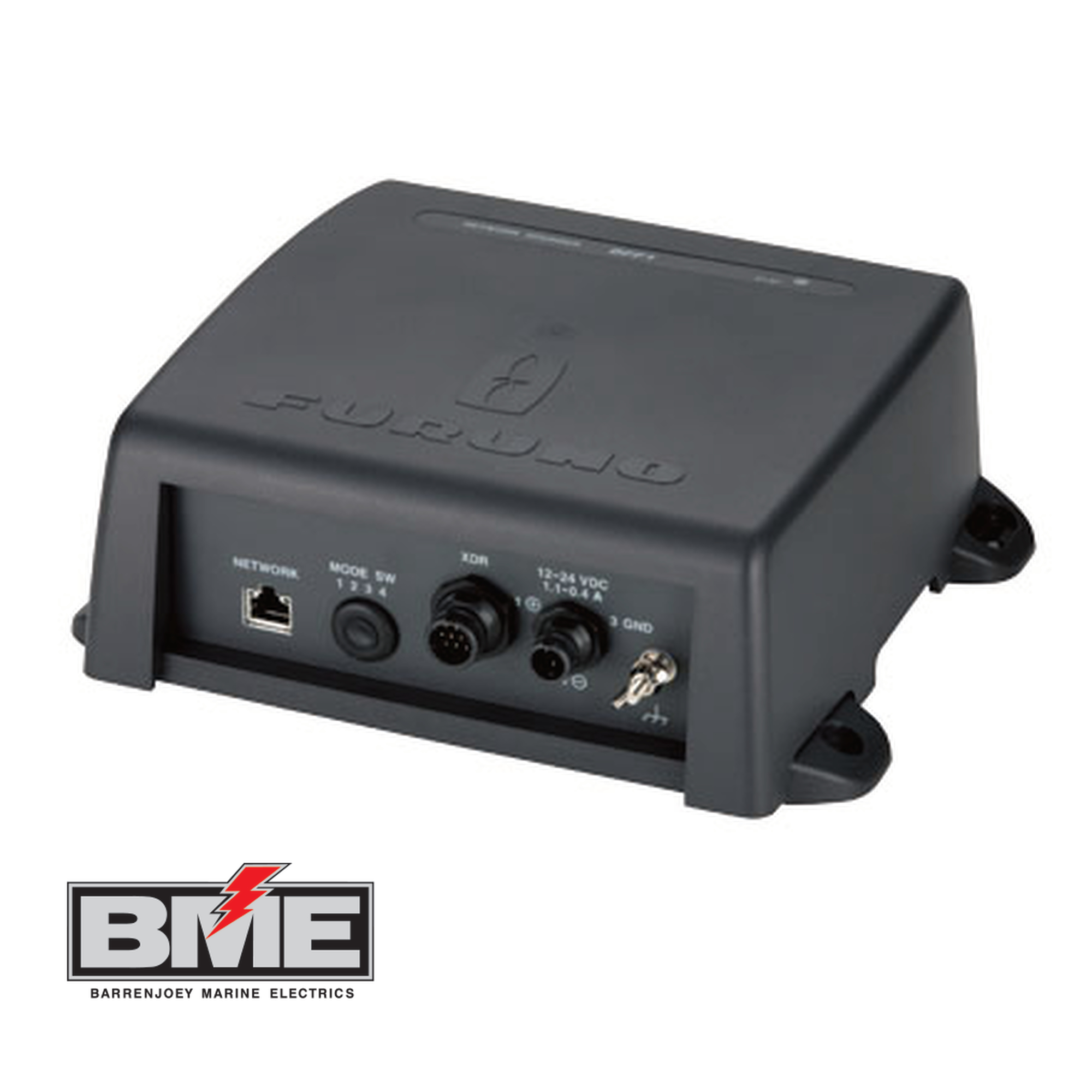

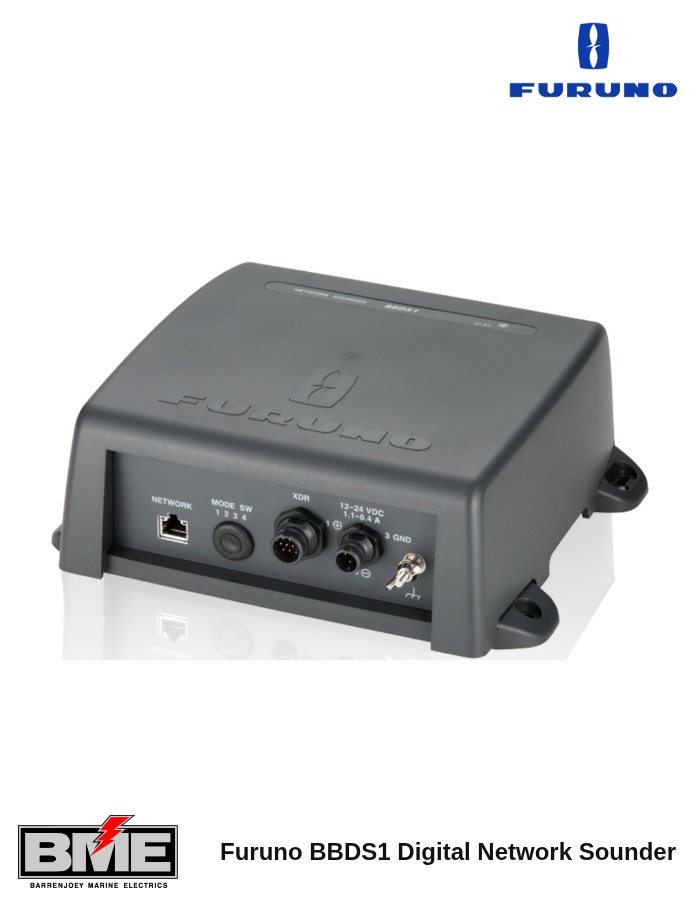

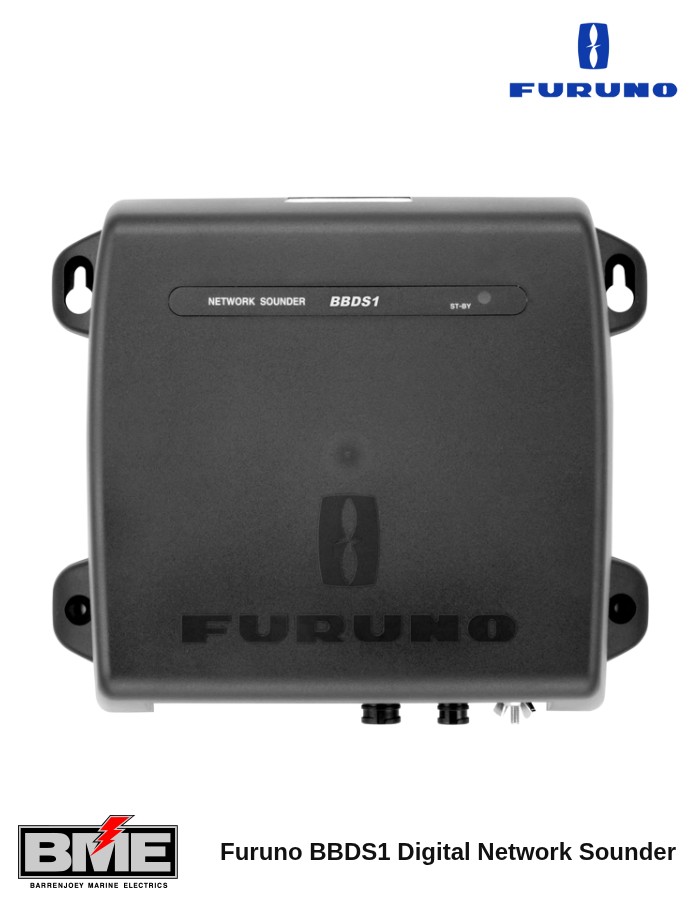

The Furuno BBDS1 is a black box network sounder for NavNet 3D, NavNet TZtouch and NavNet TZtouch2 that adds bottom discrimination to Furuno Digital Filter (FDF) fish finder technology. By analysing the echo returned from the seabed, it identifies the main bottom component as mud, sand, gravel or rock — valuable information when looking for productive fishing grounds.
FDF filtering and digital auto tuning cut noise and suppress the main bang (echoes just below the transducer), making it easier to separate baitfish from larger target species in both shallow and deep water. ACCU-FISH analyses echo returns to estimate the size of individual fish and shows it on screen. Bottom discrimination can be displayed in Standard mode or Probability mode.
Features
- Identifies the main bottom component: mud, sand, gravel or rock
- Dual frequency 50/200 kHz
- Selectable output power of 600 W or 1 kW
- 8/16/64 colour echo presentations
- 8 range scales up to 1,200 m
- Selectable automatic cruising or fishing modes
- Automatic function for detecting fish and bottom in both shallow and deep water
- White line feature helps pick out fish lying near the bottom
- Audio and visual alarms for water depth, fish echoes and water temperature (requires appropriate sensors)
- Wide variety of transducer options
Specifications
| Type | Black box network sounder with bottom discrimination |
|---|---|
| Compatible with | Furuno NavNet 3D, NavNet TZtouch and NavNet TZtouch2 |
| Frequency | 50/200 kHz |
| Transducer | 600 W or 1 kW (optional matching box MB-1100 may be required) |
| Range scale | Max. 1,200 m |
| Power supply | 12–24 V DC, 30 W, 3.5 A |
| Waterproofing | IPX0 |
| Size | 255 (W) x 219 (H) x 90 (D) mm |
| Weight | 1.2 kg |
| Part ID | 196906 |
Equipment list (standard)
- Bottom discrimination sounder BBDS1-E — 1 unit
- Power cable, 3.5 m — 1 pc
- Network cable, 5 m — 1 pc
- Installation materials and spare parts — 1 set
