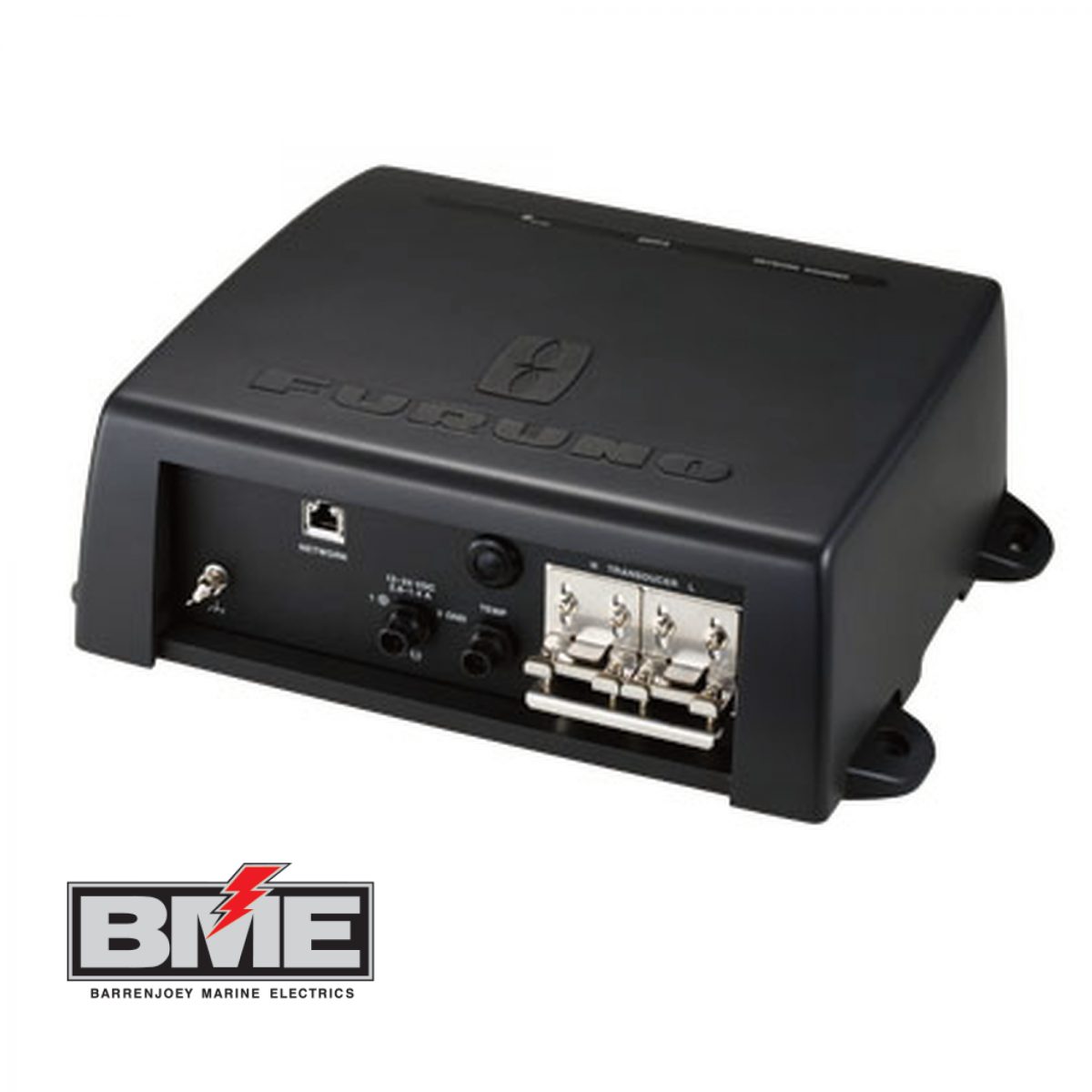

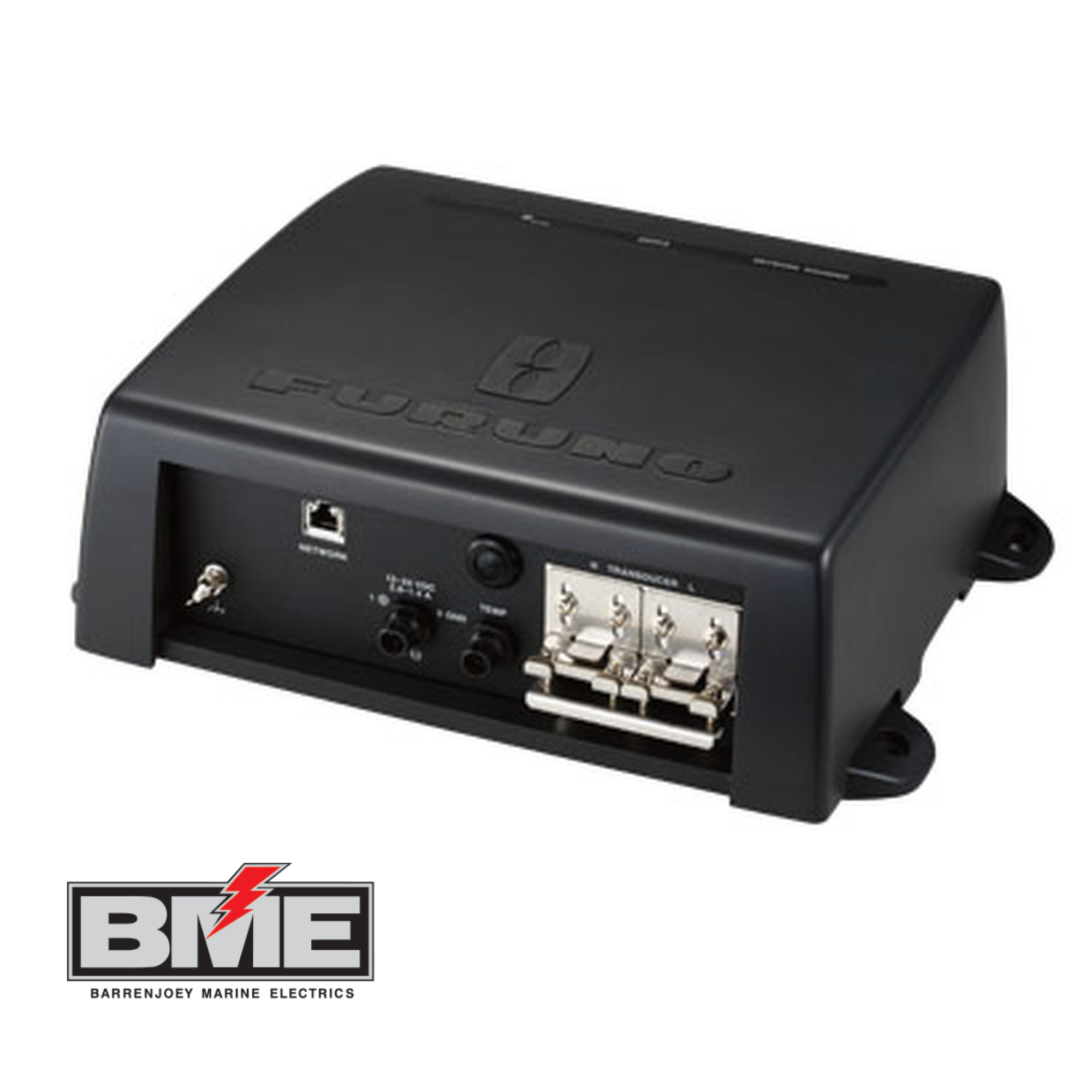

Furuno DFF3 Digital Network Sounder
Powerful, greatly improved target detection and presentation capability
Furuno’s DFF3 is a network sounder featuring Furuno Digital Filter (FDF) Technology designed for use with NavNet series devices. This digital Network Sounder can turn any NavNet display into a powerful, dual-frequency digital fish finder. The compact network sounder unit connects directly to a NavNet display or an Ethernet hub with a single Ethernet cable. If it is connected to an Ethernet hub that has multiple displays attached, each of those displays will have access to the Network Sounder.
Features
- Utilizes FDF (Furuno Digital Filter) signal processing technology
- Output power 1 to 3 kW
- Furuno Free Synthesizer (FFS) allows for selectable operating frequency of 28 to 200 kHz
- Dual frequency, alternate transmission
- Compatible with Airmar transducer ID technology
- Heaving compensation with use of the SC-30/50/110
- Variable Transmission Rate for different depth ranges allows for more detailed observation of bottom
- Dedicated 6-pin temperature sensor port available
- WAGO connection for ease of installation
Furuno DFF3 Digital Network Sounder Specifications
FISH FINDER
- Frequency: The synthesized transducer works with dual frequencies between 28 and 200 kH
- Transducer: 1/2/3 kW
- Range Scale: Max. 3,000 m
OTHERS
- Waterproofing: IPX0
- Power Supply: 12-24 VDC, 30 W 3.5 A
- Size: 300 (H） x 380 (W） x 120 (D)
- Weight: 3.8 kg
