Garmin GPSMAP® 8416xsv Chart Plotter Display
Garmin GPSMAP® 8416xsv Chart Plotter

Garmin GPSMAP® 8416xsv Chart Plotter

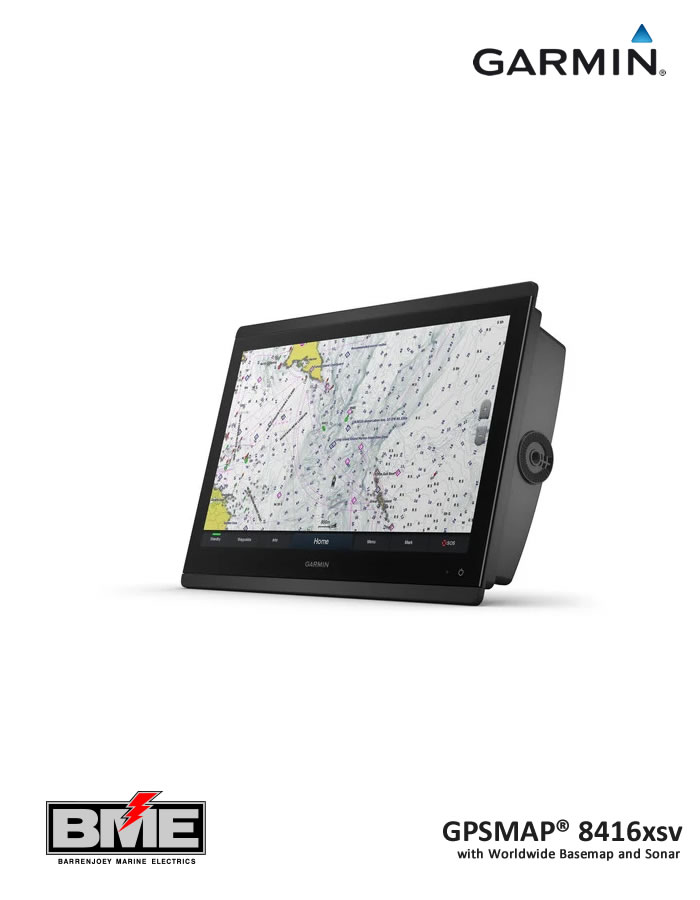

This Garmin GPSMAP® 8416xsv large 16” display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Easy install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm.

Enquire about this product

Nationwide Shipping & Support

Guaranteed Safe Checkout

Garmin 8416 GPS Map Display with Worldwide Basemap & Sonar

This Garmin GPSMAP® 8416xsv large 16” display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Easy install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm.

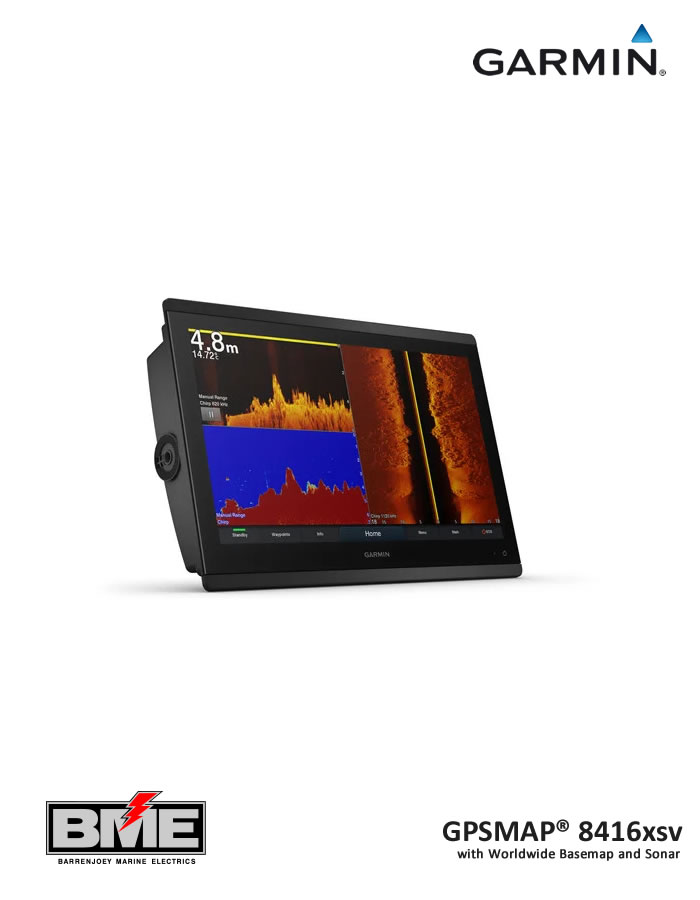

This Garmin GPSMAP® 8416xsv provides built-in support for 1-kW CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (transducer sold separately).

This Garmin GPSMAP® 8416xsv provides compatibility with NMEA 2000® and NMEA 0183 networks to be able to connect to autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

GeneralSpecifications

PHYSICAL DIMENSIONS: 15.1″ x 10.3″ x 3″ (38.5 cm x 26.3 cm x 7.6 cm)
DISPLAY SIZE: 13.6″ x 7.7″; 15.6″ diagonal (34.5 cm x 19.5 cm; 39.7 cm diagonal)
DISPLAY RESOLUTION: FHD; 1920 x 1080 pixels
DISPLAY TYPE: touchscreen IPS display (anti-glare finish)
WEIGHT: 4.4 kg
WATER RATING: IPX7
MOUNTING OPTIONS: Flat and flush, bail with optional accessory
POWER CONSUMPTION: 4.2 A
ANTENNA: Internal or external over NMEA 2000
TRANSMIT POWER: 1 kW traditional; 1 kW CHIRP
RECEIVER: 10 Hz GPS/GLONASS/Galileo

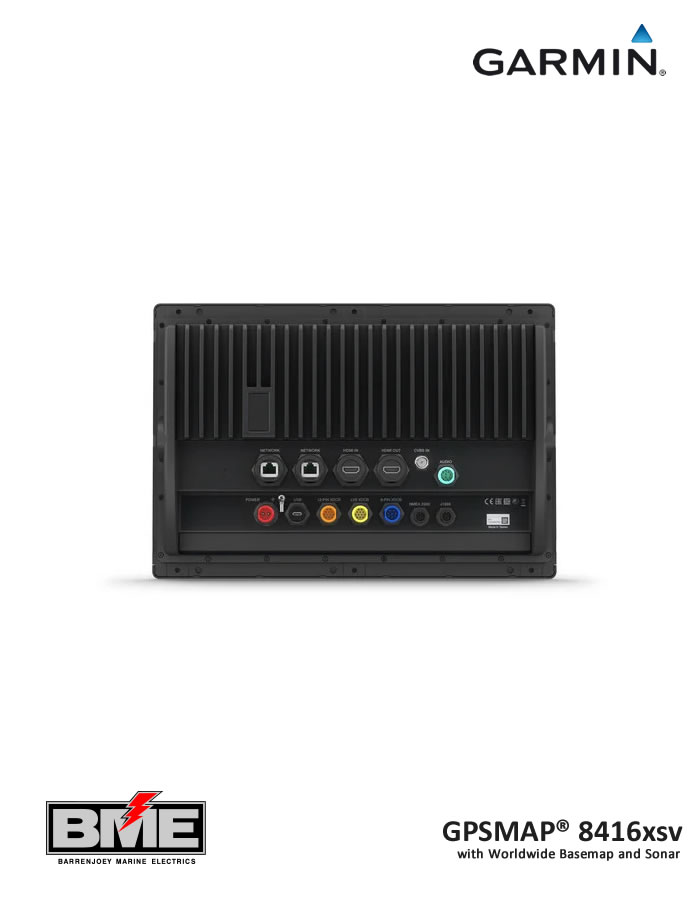

GARMIN MARINE NETWORK™ PORTS: 2

In the Box

  • GPSMAP 8416xsv
  • Power cable
  • NMEA 2000® drop cable
  • NMEA 2000 T-connector
  • Flush mount kit
  • Sun cover
  • Trim piece snap covers
