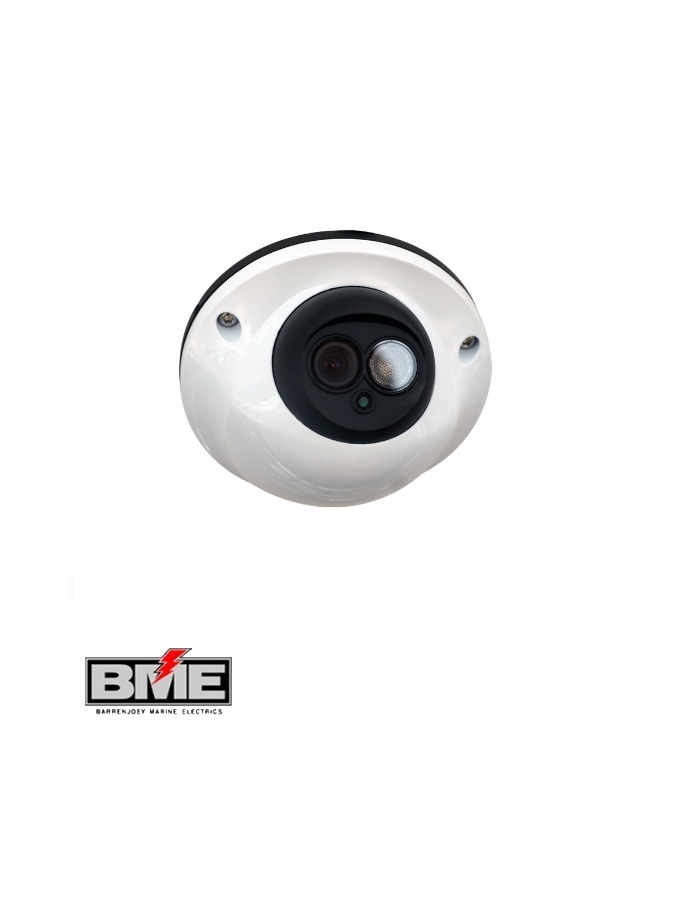

Based around Iris’s best selling IRIS060 camera, the new IRIS065 measures only 6cm (2.36″) in diameter by 5.8cm (2.28″) high. It’s stylish, rounded body is cast from aluminium which is then anodised and powder coated in a marine white finish for environmental protection.
The camera module itself is a Sony Super HAD II CCD device which is renowned for excellent low light performance and in low light conditions the camera automatically switches from full colour to monochrome in order to deliver the crispest video images. 6 Infra Red LED illuminators also kick in when it’s dark providing around 25~30ft viewing in zero light conditions.
Features
- High Resolution 700TVL
- SONY Super HAD II CCD Chipset
- Micro – Compact Housing 60mmø x 57mm
- 6 x Bright White LED’s (8 meter range)
- Water Resistant IP66
- 3.6mm Lens (80˚ HFOV) / 2.8mm Option (120˚ HFOV)
- Day / Night Operation – Switches to Monochrome in Low Light
IRIS075 Static Shell Camera with IR LED Illumination Specifications
- Camera: 1/3″ Sony EXVIEW CCD
- Resolution: 700TVL
- Min Illumination: 0.5 lux @ F1.2(Colour) / 0 Lux IR LED ON)
- Lens: Fixed 3.6mm (80˚ Horizontal Field of View)
- IR Distance: 25 Meters (80 feet)
- Video Output: 1VP~P Composite Video 75Ω
- Power: 12VDC ±3V
- Comsumption: 90mA (LED OFF) / 280mA (LED ON)
- Dimensions: 1100mmø x 58mm
- Weight: 0.5Kg
- Environmental: IP66
