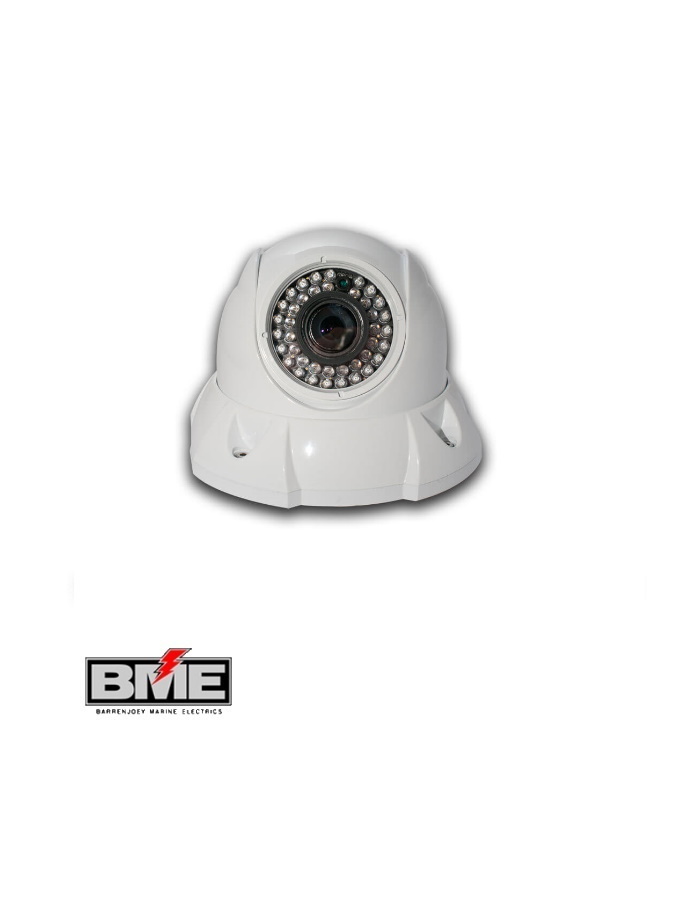

With an easy-to-install and adjust cup-and-ball style housing the IRIS080 can be mounted in any position and the zoom and focus be manually adjusted from 2.9 to 9mm using adjusting screws on the body of the camera. The 36 infra red LEDʼs provide up to 30 meters visibility in pitch black conditions and a mechanical filter switches the camera from colour to monochrome automatically to increase low light resolution.
Available in PAL or NTSC configuration, and as a standard view or switchable mirror image option.
Features
- Rugged Construction
- Manually Adjustable Varifocal Zoom & Focus
- Zoom Range: 2.9mm ~ 9mm
- High Resolution 960H Resolution Camera
- Wide Dynamic Range Image Processing
- OSD with Menu Navigation for full extended configuration settings
- Over 30 meters Infra Red Range
- Standard View / Mirror Image – Switchable via OSD Interface
- Available in PAL / NTSC Formats
IRIS080 Fixed Vari-Focal Camera with IR LED Illumination Specifications
- Sensor: 1/3” Colour Sony SuperHAD CCD II
- Video System: PAL / NTSC (Spec when ordering)
- Min Sensitivity: 0.0002Lux (15IRE)
- Extended OSD Functions: Via built in control on camera cable
- TV Lines: 600TVL / 700TVL (BW)
- Shutter Speed: PAL: 1/50~1/100,000sec
- NTSC: 1/60~1/100,000sec
- Vari-Focal Lens: 2.9mm ~ 12mm
- Video Output: 1 V P~P, 75Ω Composite, BNC
- Infrared Spectrum: 850nm
- S/N Ratio: More than 52db (AGC OFF)
- White Balance: ATW, AWC, MANUAL
- Illumination Range: Up to 30 Meters
- Day Night Filter: Colour / Mono
- Gain Control: Automatic
- Environmental: IP66
- Power Supply: 12VDC ±3VDC
- Consumption: 550mA LEDS ON @ 12VDC
- Material Anodised: Aluminum Body, Optically clear acrylic lens window
- Dimensions: 160mmø x 130mm
- Net Weight: 0.8KG
- Operating Temperature: -25˚C ~ +60˚C
