Featuring an intelligent mounting system for non-intrusive, easy installation, the FM Series subwoofers are designed to be flush mounted with a mounting flange no thicker than 3mm [1/8″] for a premium, visually-appealing, near-flat finish.
With an IP65 weatherproof rating, True-Marine accreditation and an industry-leading 3-year warranty, you can enjoy peace of mind that your FM Series subwoofers are built to last on board season after season.
Features
- Optimized 2.1 Configuration
- Quality Audio Reproduction
- Innovative Design Aesthetics
- Non-Intrusive Mounting System
- True-Marine Designed and Engineered
- Designed To Comply With ISO12216
Fusion FM Series 10″ 400 Watt Flush Mount Marine Subwoofer Specifications

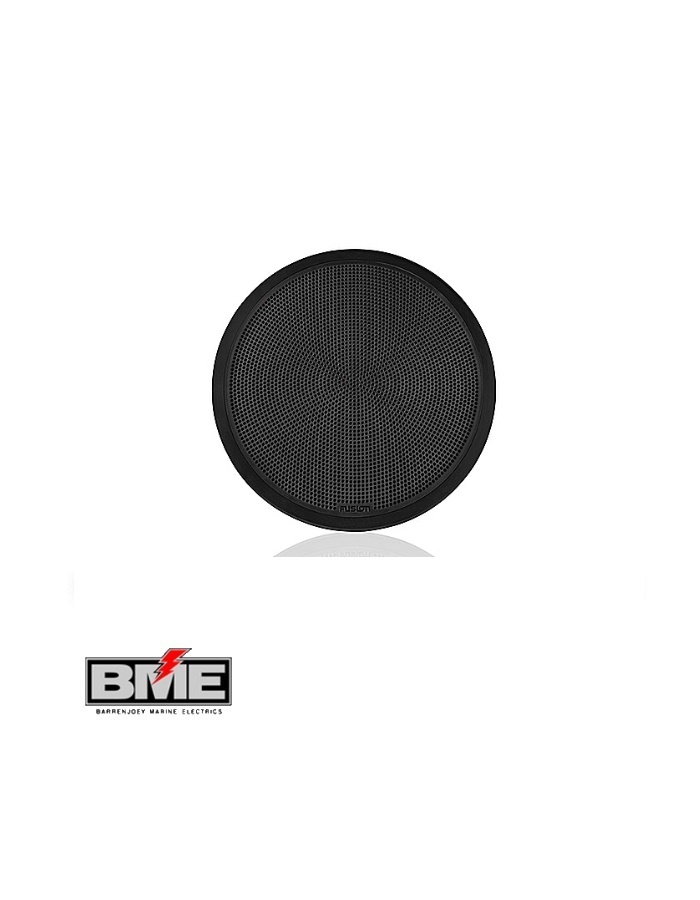

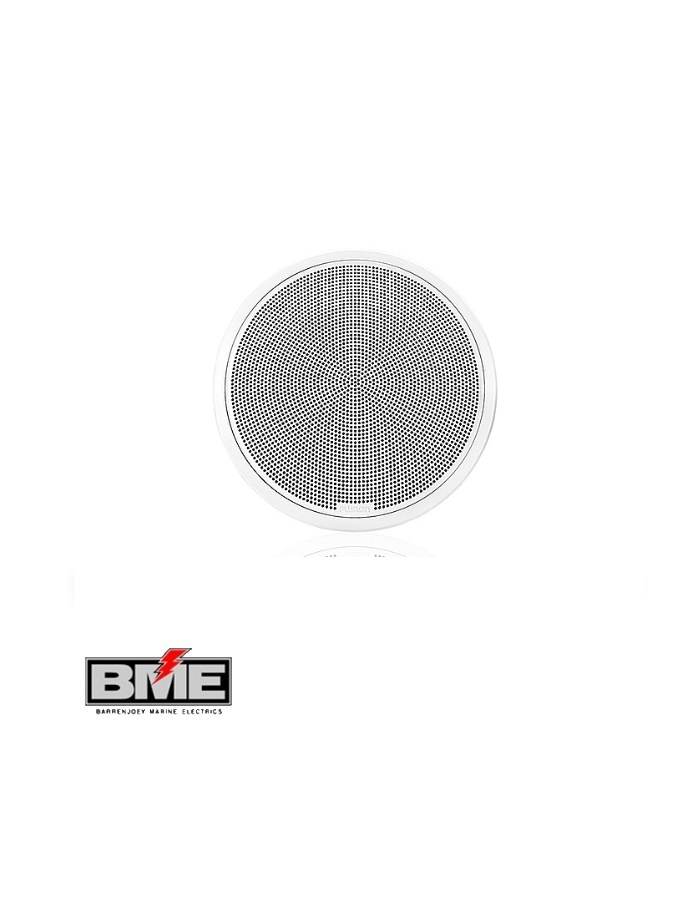

Round
- Subwoofer Size 10″
- Peak Power: 400 Watts
- RMS Power Rating: 120 Watts
- Efficiency (1W/1M): 87 dB
- Frequency Response: 30 Hz – 2 kHz
- Nominal Impedance: 4 Ohms
- Recommended Amplifier Power (RMS): 40 – 300 W/Ch
- Cone / Surround Material: Polypropylene with rubber surround
- Mounting Diameter Clearance: 269mm [10-9/16″]
- Mounting Depth Clearance: 140mm [5-1/2″]
- Optimum Enclosure Volume: (Sealed enclosure, fully filled with absorption material) 40L
- Operating Temperature Range: 0 to 50°C (32 to 122°F)
- Storage Temperature Range: -20 to 70°C (-4 to 158°F)
- Water and Dust Resistance (IPX rating): IP65
- Warranty: 3 years
Square
- Subwoofer Size: 10″
- Peak Power: 400 Watts
- RMS Power Rating: 120 Watts
- Efficiency (1W/1M): 87 dB
- Frequency Response: 30 Hz – 2 kHz
- Nominal Impedance: 4 Ohms
- Recommended Amplifier Power (RMS): 40 – 300 W/Ch
- Cone / Surround Material: Polypropylene with rubber surround
- Mounting Diameter Clearance: 269mm x 269mm [10-9/16″””” x 10-9/16″]
- Mounting Depth Clearance: 140mm [5-1/2″]
- Optimum Enclosure Volume: (Sealed enclosure, fully filled with absorption material) 40L
- Operating Temperature Range: 0 to 50°C (32 to 122°F)
- Storage Temperature Range: -20 to 70°C (-4 to 158°F)
- Water and Dust Resistance (IPX rating): IP65
- Warranty: 3 years
