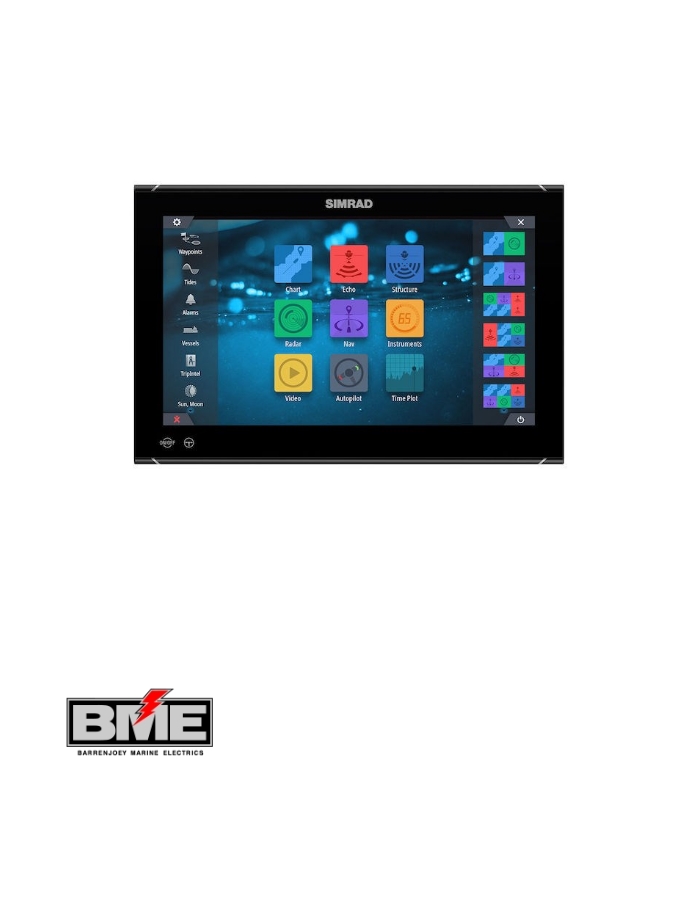

Simrad NSO evo3 Multifunction Display Range

This high-performance 16-inch multifunction display is perfect for offshore cruisers and sportfishing boats.


This product is currently out of stock and unavailable.


Simrad NSO evo3 Multifunction Display Range

Complete your ultimate boat with NSO evo3. This navigation system puts you in total control of your on-board electronics through intuitive touchscreen controls. A stunning Full HD display, available in 16, 19 or 24-inch widescreen sizes, lets you see more than ever, while an integrated high-performance processor ensures a swift response to your every command. Connect your choice of GPS receiver, sonar, radar, autopilot, and other accessories to create your ideal chartplotter, navigation system, fishfinder. NSO evo3 gives you whatever you need to enable and enhance your favorite on-water activities.

This high-performance 16-inch multifunction display is perfect for offshore cruisers and sportfishing boats. Enjoy intuitive touchscreen access to charts, sonar, radar, autopilot control, and much more. It’s easy to build your perfect system by combining multiple displays and your choice of accessories.

Every NSO evo3 display features an integrated quad-core processor for an ultimately smooth response, from charting to StructureScan 3D imaging. Enjoy swift access to the information you need, as you need it, whether you’re cruising the open ocean or carefully navigating a crowded harbour. Create your own custom helm layouts to suit any activity, and switch seamlessly between those layouts in an instant.


  • Ultra-bright, Full HD display
  • Easy touchscreen control of your entire Simrad system
  • Integrated quad-core processor for ultimate performance.
  • See more than ever with six-panel split screen option
  • Connect with smartphones, tablets, and internet hotspots
  • Optional starter kit includes keypad, GPS antenna, and chart card reader

Simrad NSO evo3 Multifunction Display Range Specifications

Storage Temperature Range: “-20°C to +60°C (4°F to 140°F)
SD Card Storage: 1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS
NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
Supply Voltage: 10 – 32 V DC
Screen Brightness: 1200 nits
Operating Temperature Range: -15°C to +55°C (5° F to 131° F)
Display Size: 16 inches
Display Resolution: 1920×1080
Warranty Period: 2 Years
Video: 2x composite video (BNC)1x high definition video (1080p, HDCP 1.4, HDMI-A)1x high definition video output (1080p, no HDCP, HDMI-A)
Ethernet Ports: 3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001)
Weight: 3.9 kg (8.6 lbs.)
Power Consumption max: 40 W +- 4 W
Dimensions H x W x D: 400.1 x 260 x 83 mm (15.75 x 10.24 x 3.27″) With bracket: 474.9 x 307.5 x 222.5 mm (18.7 x 12.1 x 8.76”)
Compass Safe: 50 cm (19.7″)
Recommended Fuse Rating: 6 A @ 12 V DC
Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Viewing Angles: 80° top/bottom, 80° left/right
Internal Storage: 90M
