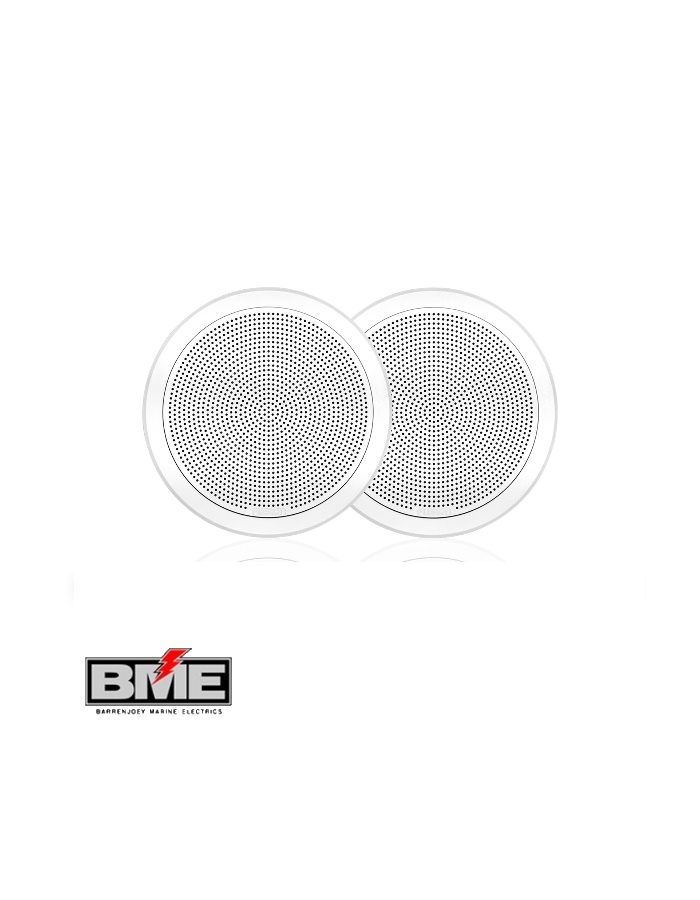

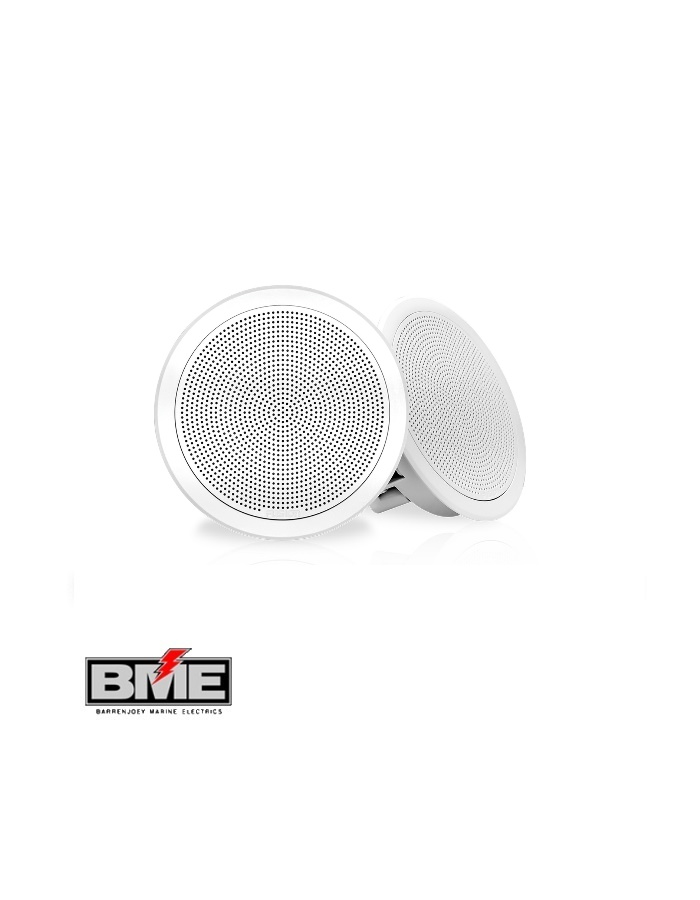

Fusion FM Series 7.7″ 200 Watt Flush Mount Marine Speakers


Engineered for high-quality audio reproduction with innovative design aesthetics, Fusion’s new FM Series flush mount marine speakers are designed to deliver enhanced acoustics to your vessel in a sleek and minimalistic form factor to meet the latest boat design trends.



Featuring an intelligent mounting system for non-intrusive, easy installation, the FM Series speakers are designed to be flush mounted with a mounting profile no thicker than 2.5mm [3/32″] for a premium, visually-appealing, near-flat finish.

With an IP65 weatherproof rating, True-Marine accreditation and an industry-leading 3-year warranty, you can enjoy peace of mind that your FM Series speakers are built to last on board season after season.


  • Optimized Full Range Speaker
  • Innovative Design Aesthetics
  • Non-Intrusive Mounting System
  • True-Marine Designed and Engineered
  • Designed To Comply With ISO12216

Fusion FM Series 7.7″ 200 Watt Flush Mount Marine Speakers Specifications

  • Speaker Size: 7.7″
  • Peak Power: 200 Watts
  • RMS Power Rating: 50 Watts
  • Efficiency (1W/1M): 91 dB
  • Frequency Response: 80 Hz – 18 kHz
  • Nominal Impedance: 4 Ohms
  • Recommended Amplifier Power (RMS): 20 – 150 W/Ch
  • Tweeter Type: Aluminum dome
  • Cone / Surround Material: Polypropylene with cloth surround
  • Mounting Diameter Clearance: 165mm [6-1/2″]
  • Mounting Depth Clearance: 83mm [3-1/4″]
  • Optimum Enclosure Volume: (Sealed enclosure, fully filled with absorption material) 8L
  • Operating Temperature Range: 0 to 50°C (32 to 122°F)
  • Storage Temperature Range: -20 to 70°C (-4 to 158°F)
  • Water and Dust Resistance (IPX rating): IP65
  • Warranty: 3 years
