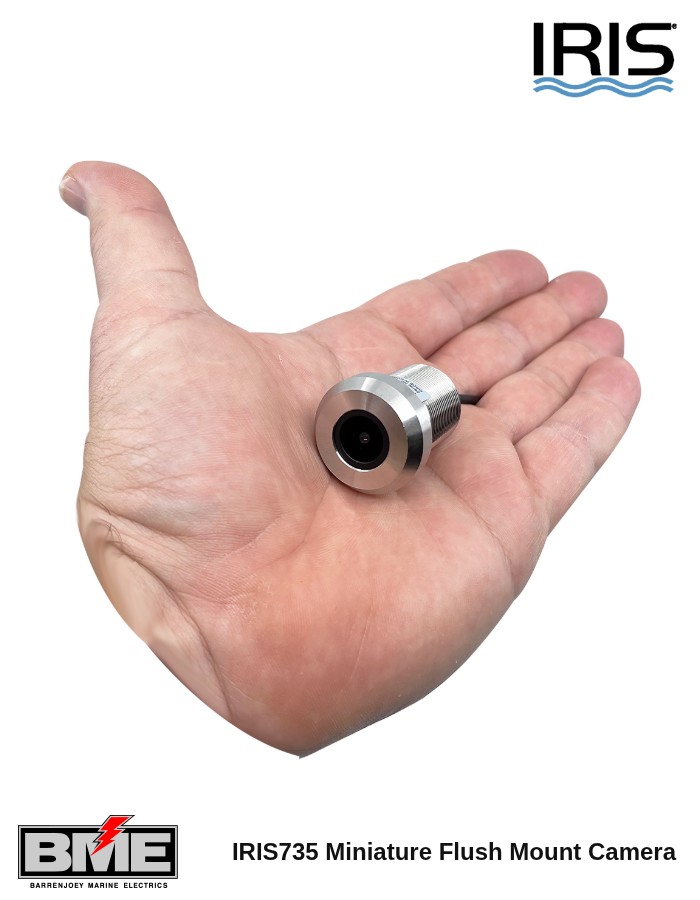

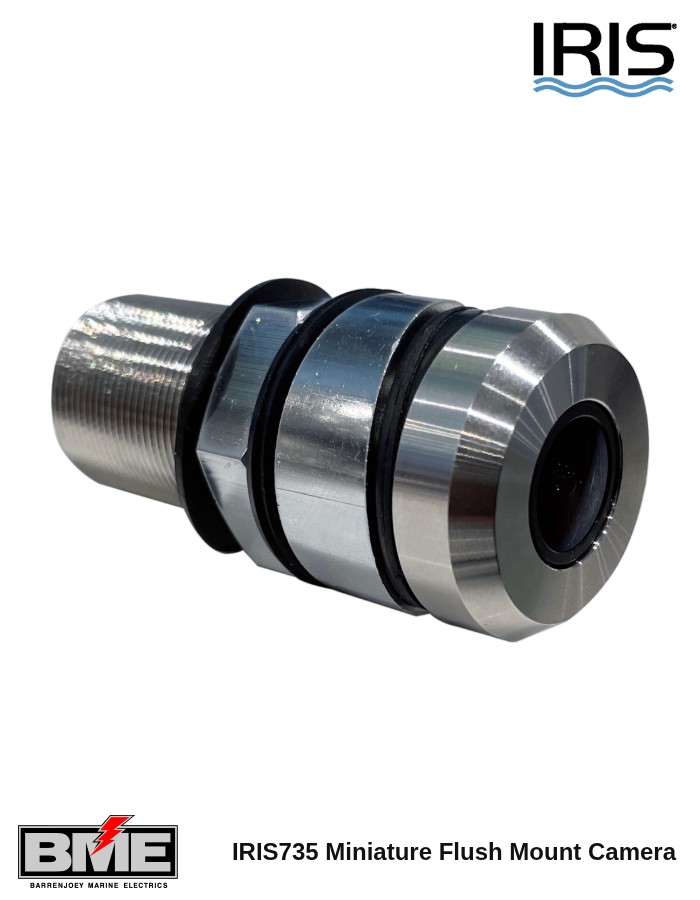

The IRIS 735 from Iris Innovations is a micro-compact through-hull and flush mount marine camera, machined from corrosion-proof 316L marine grade stainless steel. At just 28 mm in diameter, with a bezel that sits only 8.5 mm proud of the panel, it mounts flush into the hull, superstructure or transom without spoiling the lines of the vessel.
A Sony Starlight sensor delivers strong low-light performance, and the 2.9 mm wide-angle lens gives a 140° field of view — well suited to docking, sports fishing and discreet on-board security. Video output is user-selectable between composite (CVBS) and analogue high definition (TVI, CVI, AHD). Set to CVBS, the IRIS 735 works with any chartplotter that supports composite video input.
Specifications
| Housing | 316L marine grade stainless steel |
|---|---|
| Dimensions | 28 mm diameter x 36 mm |
| Bezel height | 8.5 mm from the mounting surface |
| Lens | 2.9 mm wide angle |
| Field of view | 140° |
| Sensor | Sony Starlight (low light) |
| Video output | 4-in-1, user selectable: CVBS, TVI, CVI, AHD |
| Compatibility | Chartplotters supporting composite / analogue video input |
| Environmental rating | IP67 |
