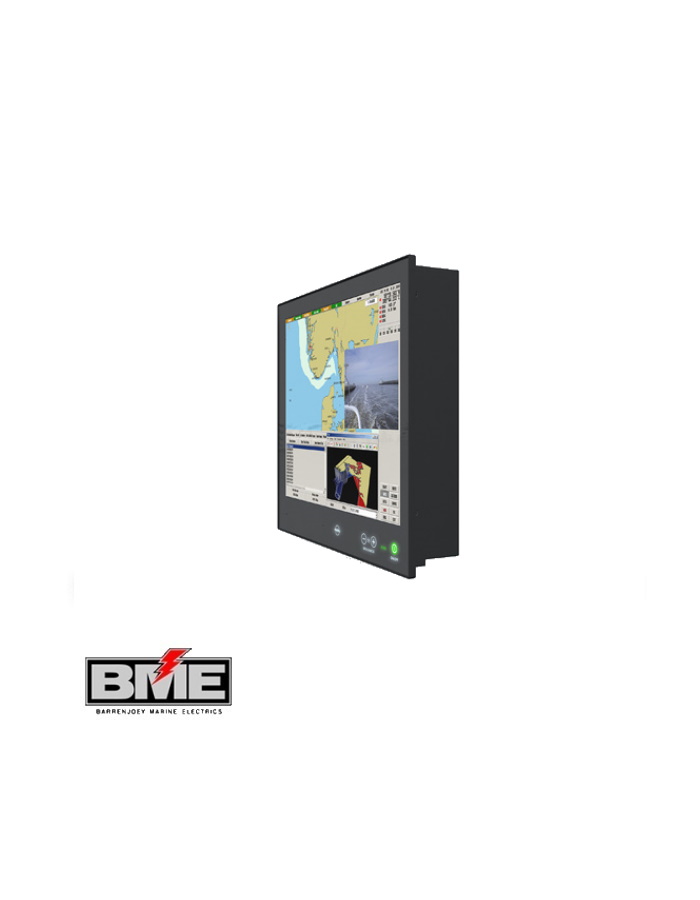

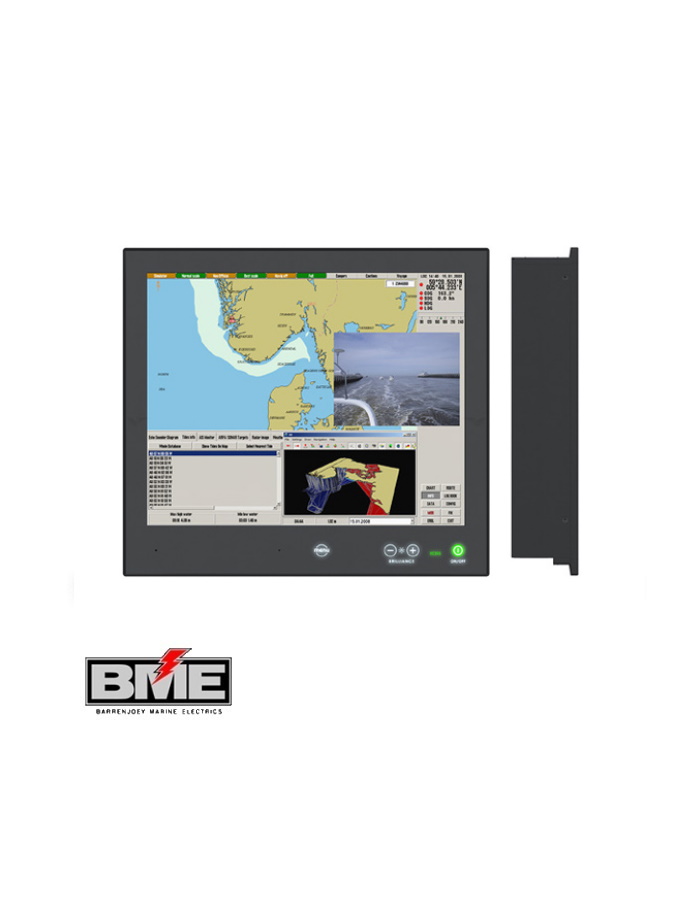

Hatteland 17″ Series X LCD Display LCD 1280 x 1024 Glass Display, Touch Control & Hi Bright

$5,225.00$9,790.00

The multi-input MMD models provide a wide choice of display size and format for a multitude of shipboard applications, where combining data and video inputs to a single unit provides maximum flexibility.

Clear
Description

Series X Generation 2 (G2) Displays offer the ultimate in performance, convenience, state of the art design and enduring quality for system integrators and boat builders. Series X products offer a range of feature sets optimized for varying requirements and applications.

The Series X Generation 2 (G2) display range is a flexible monitor solution designed and type approved for the professional maritime segment, where reliability and long life time are key prerequisites for the industry. The product range combines stunning design and technology with innovative features and options, making it all that the integrator needs for top class type-approved marine systems.

The multi-input MMD models provide a wide choice of display size and format for a multitude of shipboard applications, where combining data and video inputs to a single unit provides maximum flexibility. Be it for ship navigation, automation or security, this range with all it’s possible options provides a robust and multipurpose platform from which to display and manage data and multiple camera or sensor videos.

Hatteland 17″ Series X LCD Display LCD 1280 x 1024 Glass Display, Touch Control & Hi Bright Specifications


  • Type Number: HD 17T22MMDMA1-FOGA
  • TFT Technology: LED Backlight Technology,TFT active-matrix liquid crystal panel
  • Viewable Size and Active Area: 17.0 inch – 337.92 [13.30”] (H) x 270.33 [10.64”] (V) mm [inch]
  • Native Resolution and Pixel Pitch: 1280 x 1024 (SXGA) – 0.264 (H) x 0.264 (V) mm
  • Aspect Ratio and Response Time: Standard: 5:4 – 5ms (typical), High Bright: 5:4 – 30ms (typical)
  • Light Intensity and Contrast Ratio: Standard: 350 cd/m² (typ) – 1000:1 (typ), High Bright: 1000 cd/m² (typ) – 800:1 (typ)
  • View Angle and Max Colors: Standard: 85° (down/left/right), 60° (up) @ CR>10, High Bright: 85° (down/left/right), 60° (up) @ CR>10, 16.7 million
  • Optimal Resolution and Hz: 1280 x 1024 @ 60 Hz
  • Detectable Resolutions: 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024
  • Composite Video Input(s): Composite (BNC)
  • Supported Video Signals: Interlaced HDTV, NTSC, PAL and SECAM video, Composite Video
  • Product Features: Dimmable 0-100%, Multi-power AC & DC, PBP (Picture By Picture), PIP (Picture In Picture)
  • Power Specifications and Consumption: Multi-power 100-240V AC – 50/60Hz + 24VDC, Standard: 34W (max), High Bright: 44W (max)
  • User Controls and Activity: Glass Display Control (GDC) IP66 with:, Power On/Off, On Screen Display Menu, Brightness Control (-/+),, Hotkeys (left/right), Mode Status Indicator (ECDIS, Service), Buzzer (through glass), Light Sensor (behind glass)
  • Connectors:
    • DVI-I IN: 2 x 29p DVI Female (or as VGA IN with adapter)
    • DP1.2 IN: 1 x 20p DisplayPort (female)
    • Comp. Video IN: 2 x BNC Connector (female)
    • SCOM RS-422/485: 2 x 5-pin Terminal Block 3.81, non-isolated+Buzzer
    • VGA OUT: 1 x 15p HD D-SUB (female) – Clone of VGA IN
    • SCOM+Touch: 1 x USB TYPE A Connector (female)
    • Ethernet: 1 x RJ45 Connector for Remote Control
    • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated+Buzzer
    • Potmeter/User: 1 x 9p D-SUB (male)
    (Potentiometer IN, +5VDC OUT, BRT +/- IN)
    • AC Power IN: 1 x Std IEC Inlet
    • DC Power IN: 1 x 2-pin Terminal Block 5.08
  • Product Dimensions and Weight: W:390.00 [15.35”] x H:351.00 [13.82”] x D:71.50 [2.81”] mm [inch], Approx. 6.5kg / 14.3lbs
  • Product Carton Size and Weight: L:530.00 [20.87”] x W:210.00 [8.27”] x H:540.00 [21.26”] mm [inch], Approx. 9.1kg / 20.0lbs
  • Factory Options:
    • Projected Capacitive Touch Screen (Multitouch,USB, Pen/Glove support)
    • Optical Bonding Technology
    • Color Calibrated models (ECDIS)
    • Sunlight Readable / High Bright (includes Optical Bonding)
    • 1 x Additional Composite Video IN (BNC) Connector
  • Accessories:
    • HD CMB SX2-A1: 1 x Console Mount Kit. EN60945 Tested
    • HD TMB SX2-A1: 1 x Table Mount Bracket. EN60945 Tested
    • HD VED SX2-B1: 1 x VESA Adapter (75/75, 100/100 & 200/100mm)
    (not EN60945 Tested)
    • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
    • HD 17COV SX1-A1: 1 x UV Sun Cover
    • P007130-1: 1 x IP66 Mount Gasket (EPDM), for Flush/Console mount
  • Capabilities / Prepared for: None
  • Operating Temperature: -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
  • Storage Temperature: -30.0°C / -22.0°F to +70.0°C / +158.0°F, Humidity up to 95%
  • IP Rating: Protection: IP66 front – IP22 rear (EN60529)
  • Compass Safe Distance: Standard: 125.00 [49.21”] – Steering: 85.00 [33.46”] cm [inch], High Bright: 100.00 [39.37”] – 70.00 [27.56”] cm [inch]
  • Type Approval, Testing and Certificates:
    IEC 60945 4th (EN 60945:2002), IACS E10,
    EU-RO-MR – Mutual Recognition
